Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)

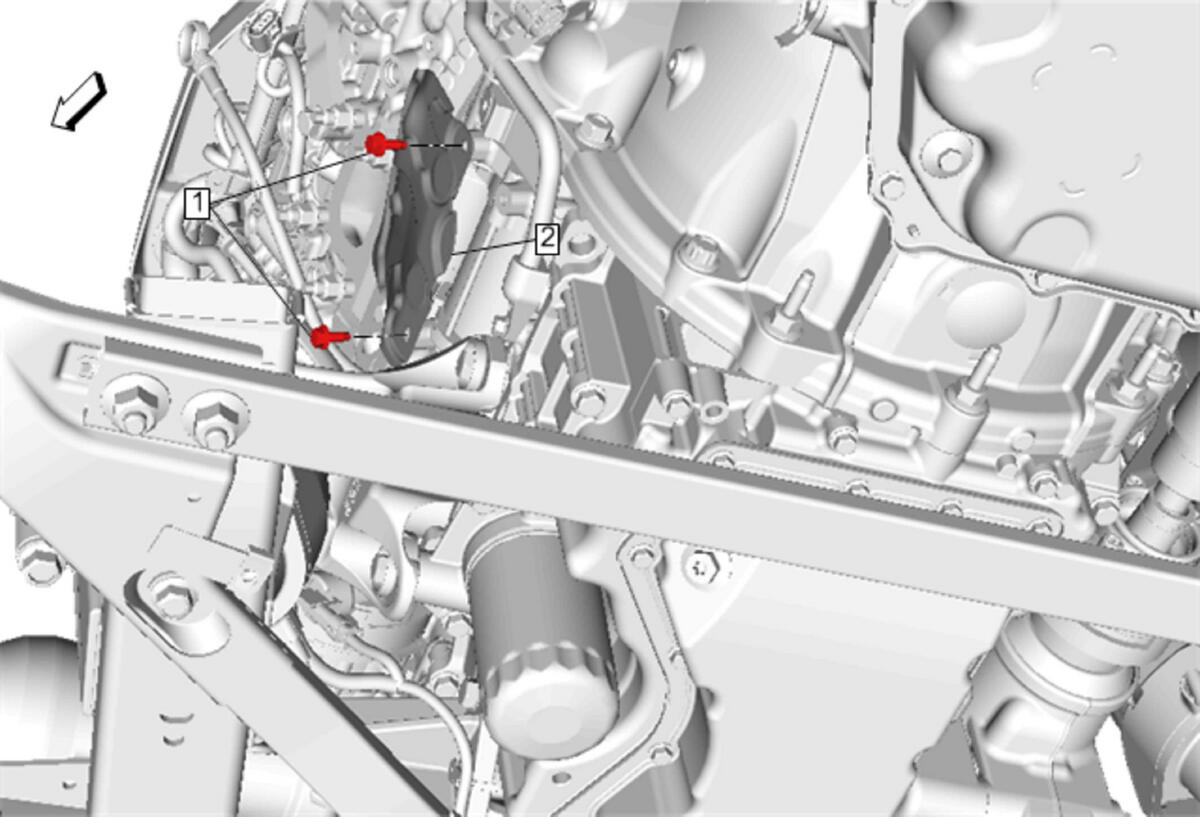

Fig 1: Starter Shield (LGX)

GM4083933

Courtesy of GENERAL MOTORS COMPANY

Remove Starter Heat Shield (2). Refer to Starter Shield Replacement (LGX)

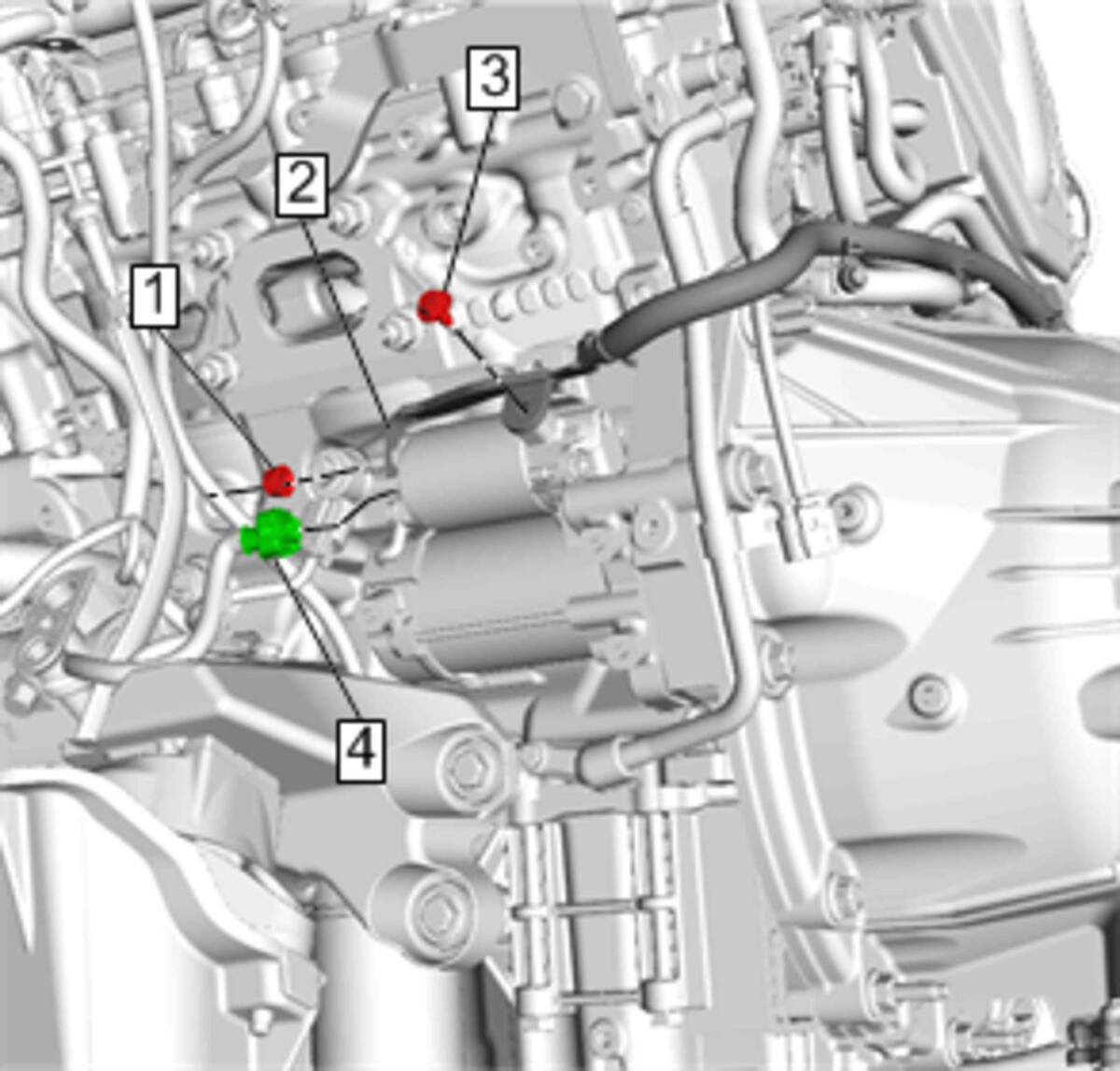

Fig 2: Starter Solenoid Cable

GM4082033

Courtesy of GENERAL MOTORS COMPANY

Remove Starter Solenoid Cable Nut (1)
Remove Battery Positive Cable Retainer Fastener (3)
Remove Battery Positive Cable (2)

Fig 3: Knock Sensor-Bank 2

GM4147023

Courtesy of GENERAL MOTORS COMPANY

Remove Knock Sensor-Bank 2 (3). Refer to Knock Sensor Replacement - Bank 2 (LGX)

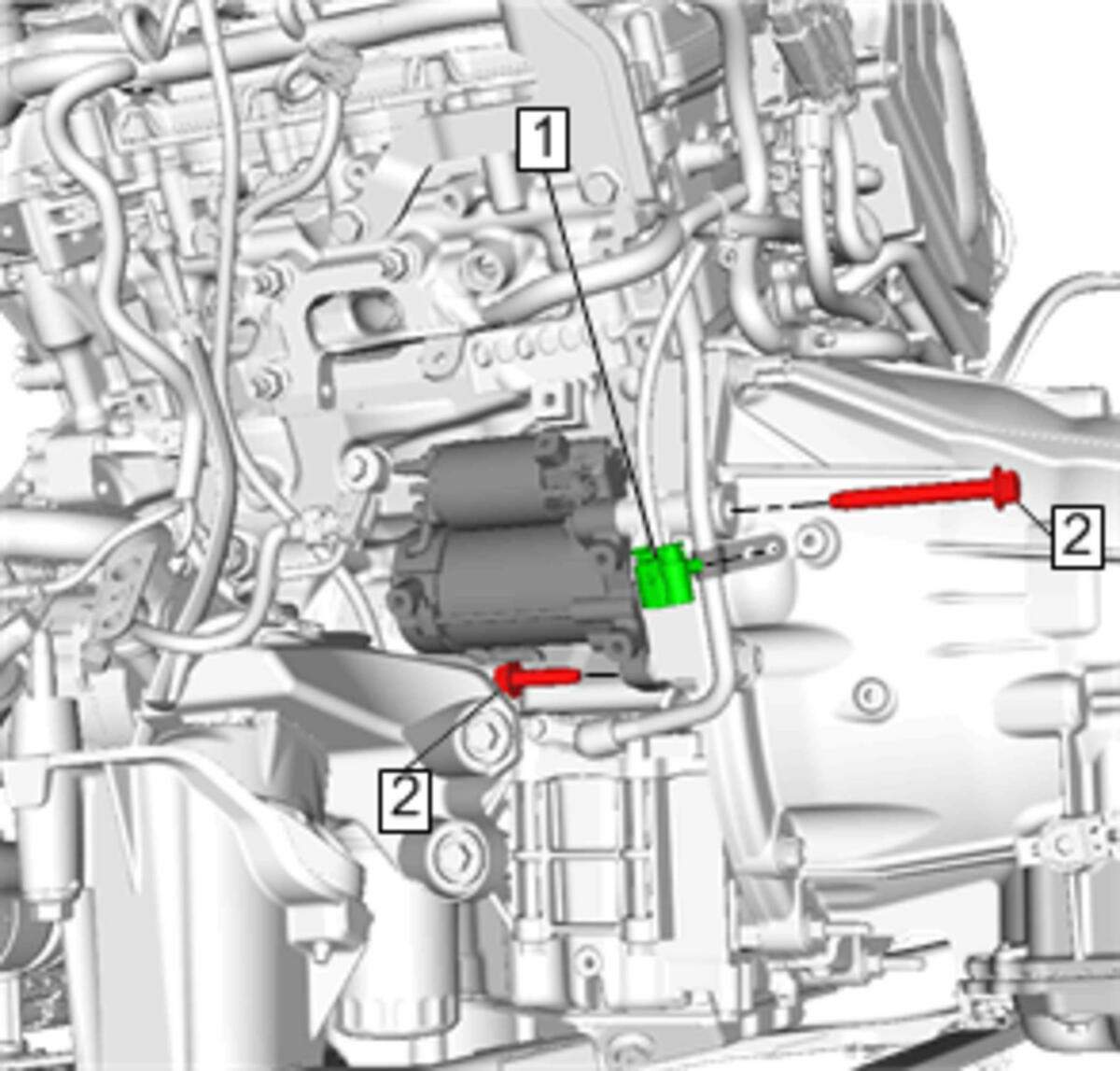

Fig 4: Heated Oxygen Sensor Electrical Connector

GM4082035

Courtesy of GENERAL MOTORS COMPANY

Reposition Heated Oxygen Sensor Electrical Connector (1)
Remove the starter bolts (2).

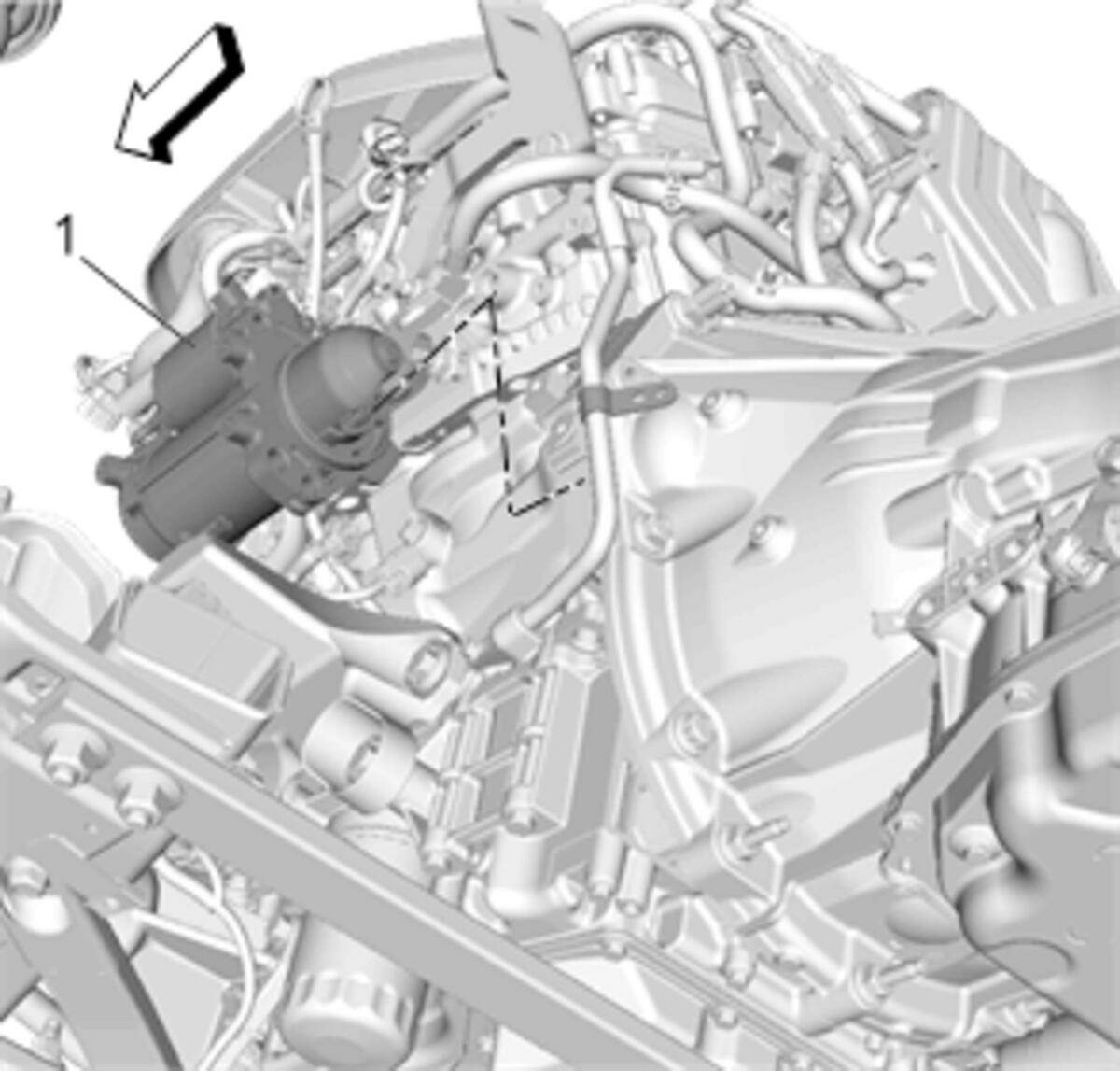

Fig 5: Starter

GM4082039

Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector and remove the starter (1).
