Battery Negative Cable Extension Cable Replacement (LGX)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

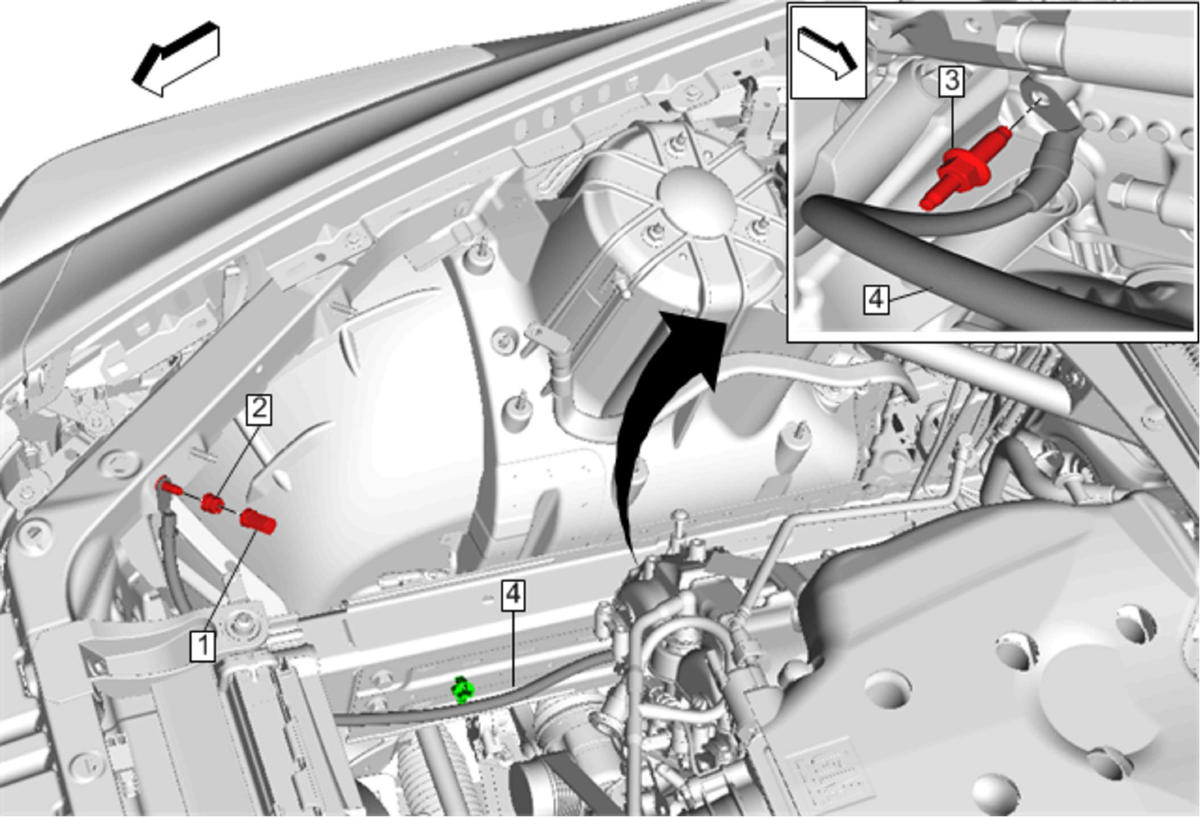

| Callout | Component Name |
|---|---|
| 1 | Nut Cap |
| 2 | Battery Negative Cable Extension Cable Fastener
CAUTION:
Refer to Fastener Caution . Tighten 15 N.m (11 lb ft) |
| 3 | Battery Negative Cable Extension Cable Fastener Tighten 22 N.m (16 lb ft) |
| 4 | Battery Negative Cable Extension Cable |
