Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

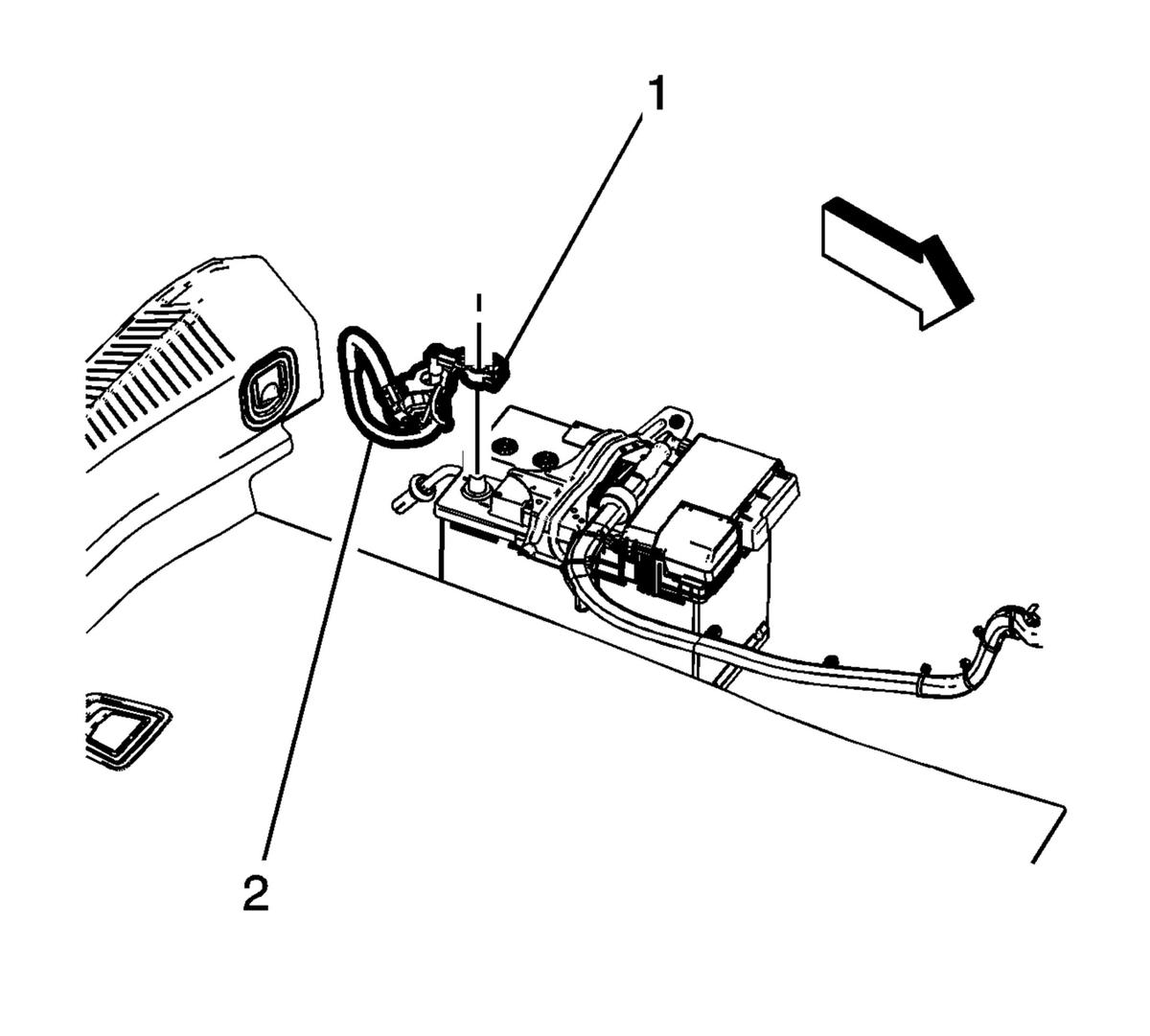

    Fig 1: Battery Negative Cable Clamp Fastener
    GM3461596Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Negative Cable (2)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Tighten Battery Negative Post Clamp Nut (1) to 7 N.m (62 lb in)

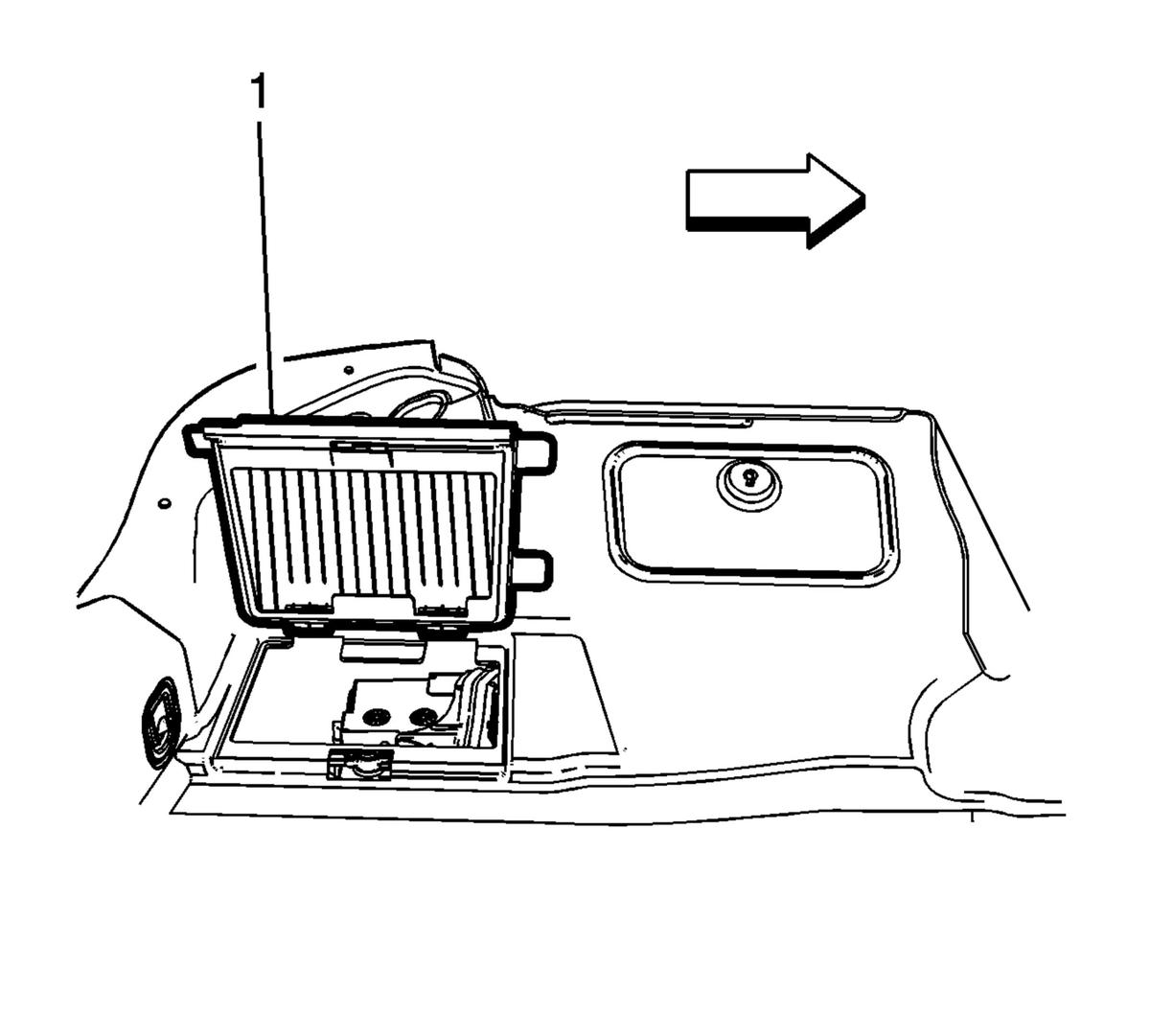

    3. Fig 2: Battery Access Cover Located At Left Rear Compartment Area
    GM3461594Courtesy of GENERAL MOTORS COMPANY
  3. Close Access Cover (1)
