Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

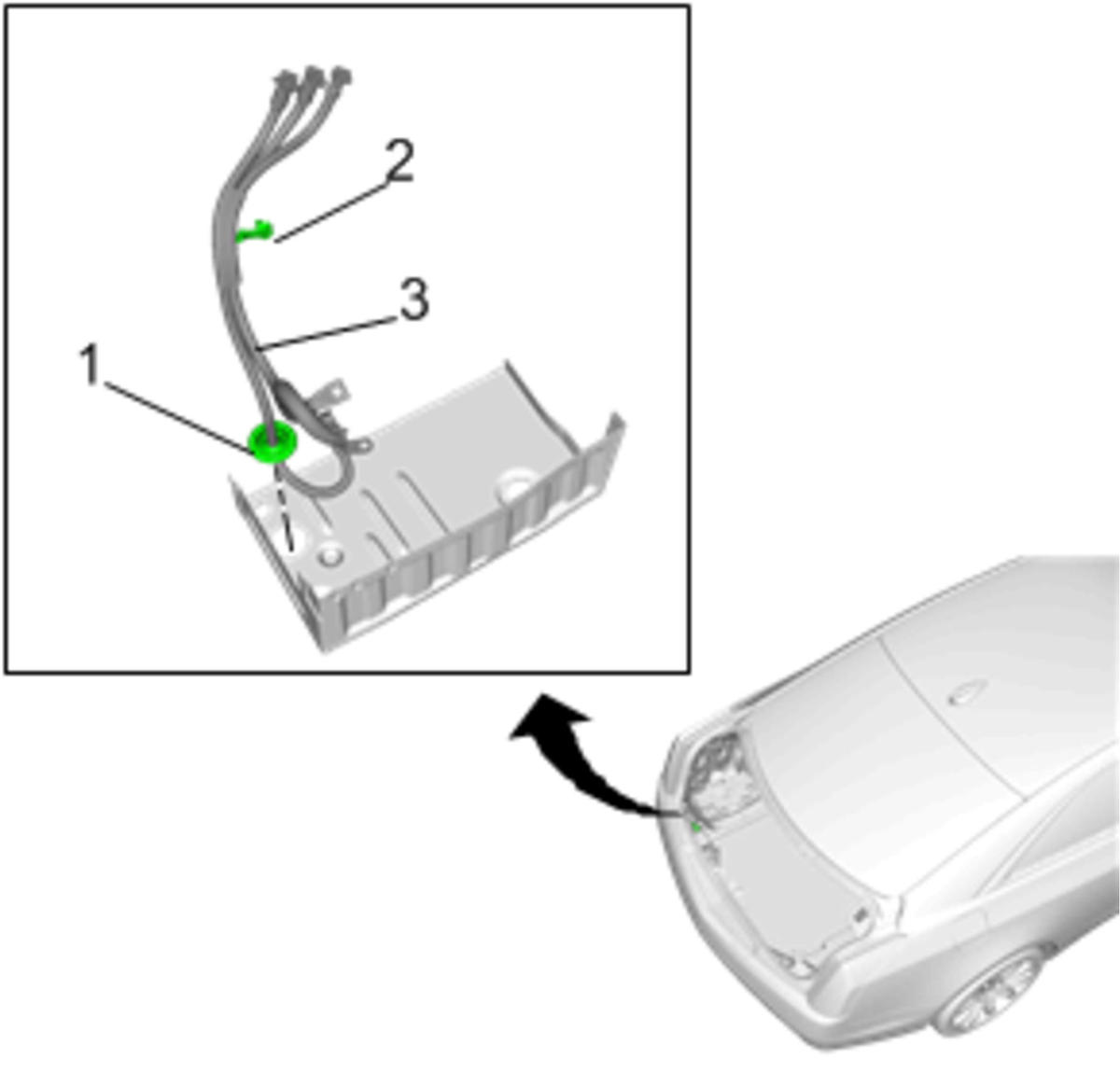

- Install the cable grommet to the floor panel (1).
- Connect Retainer (2)
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)

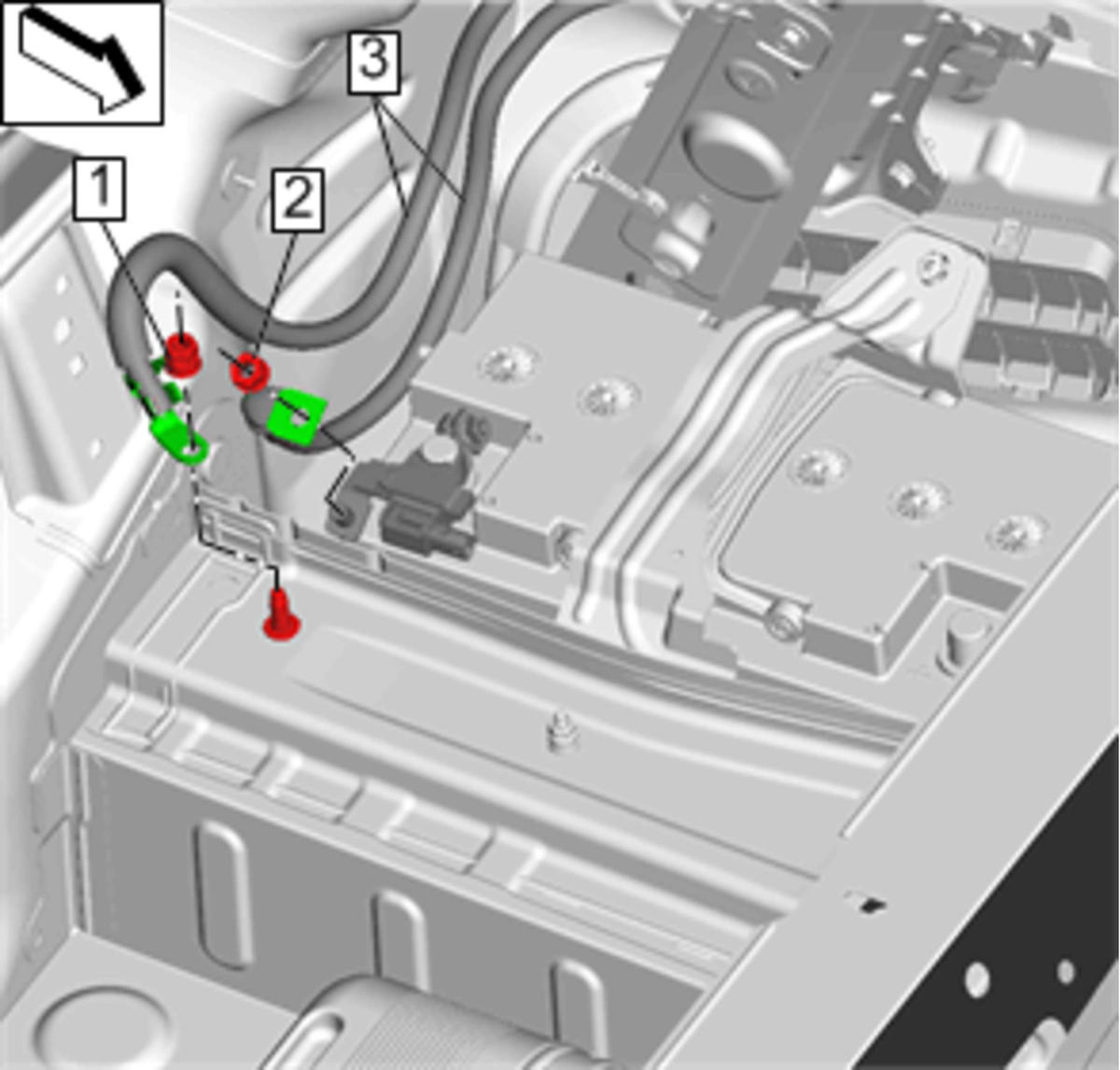

- Install Auxiliary Generator Battery Jumper Cable (3)
- Tighten Multifunction Energy Storage Capacitor Fastener (2) to 9 N.m (80 lb in)
- Install Protective Cap (1)
- Install Ground Cable (5)
- Tighten Ground Cable Nut (4) to 12 N.m (106 lb in)
- Install Rear Bumper Lower Fascia. Refer to Rear Bumper Lower Fascia Replacement
- Lower the vehicle.

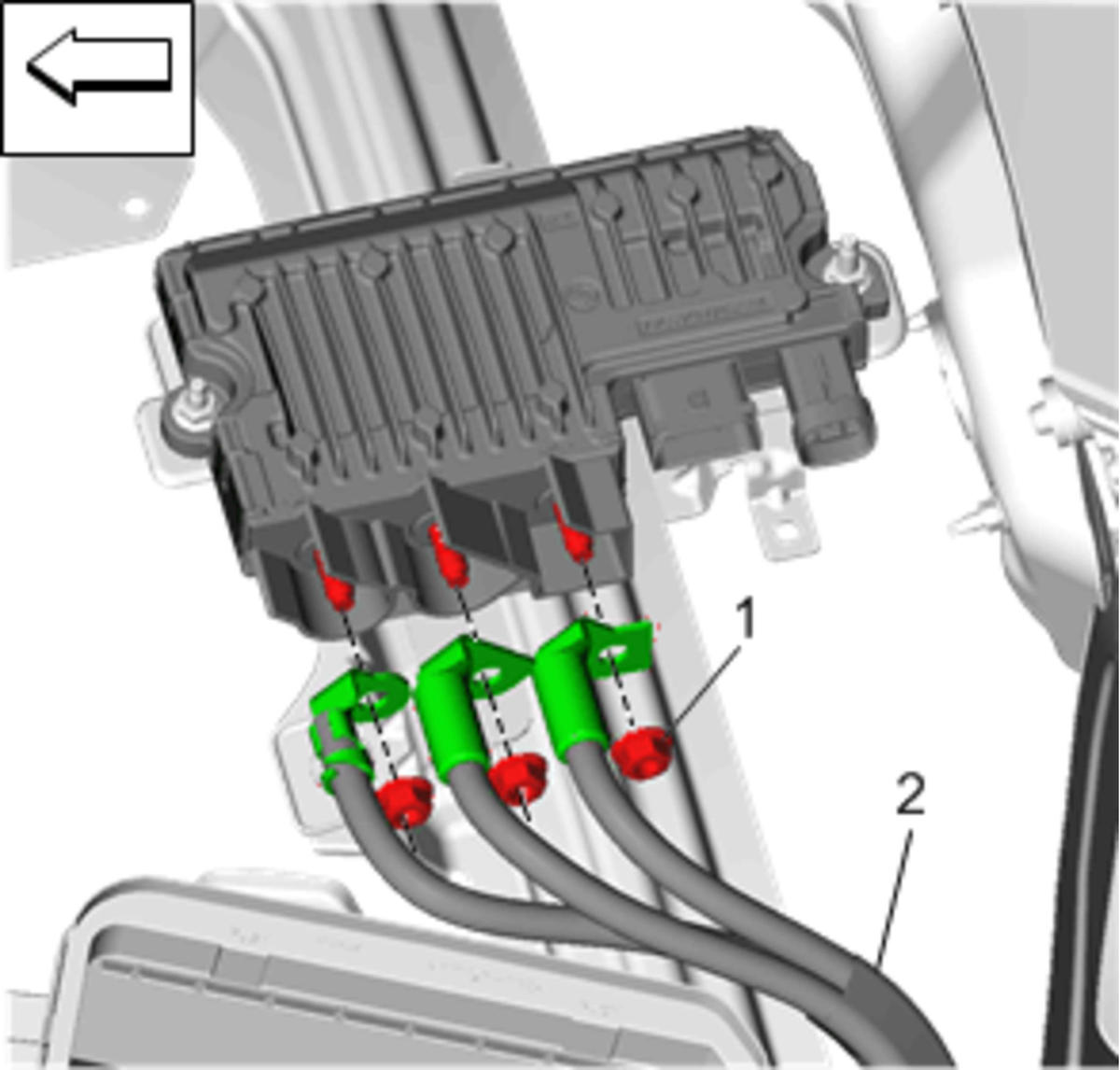

- Install Auxiliary Generator Battery Jumper Cable (2) (Qty: 3)
- Tighten Auxiliary Generator Battery Jumper Cable Nut (1) (Qty: 3) to 12 N.m (106 lb in)
- Install Multifunction Energy Storage Capacitor Control Module Bracket (2)
- Tighten Multifunction Energy Storage Capacitor Control Module Bracket Bolt (1) (Qty: 2) to 9 N.m (80 lb in)
- Tighten Multifunction Energy Storage Capacitor Control Module Bracket Bolt (3) (Qty: 2) to 10 N.m (89 lb in)
- Install Active Safety Control Module Bracket (2) { If equipped }
- Install and tighten Active Safety Control Module Bracket Bolt (1) to 2.5 N.m (22 lb in) { If equipped }
- Install Auxiliary Generator Battery Jumper Cable (3) (Qty: 2)
- Tighten Auxiliary Generator Battery Jumper Cable Nut (2) to 12 N.m (106 lb in)
- Tighten Auxiliary Generator Battery Jumper Cable Nut (1) to 12 N.m (106 lb in)
- Install Rear Compartment Side Trim. Refer to Rear Compartment Side Trim Replacement - Left Side (Sedan with AM9)Rear Compartment Side Trim Replacement - Left Side (Sedan except AM9)Rear Compartment Side Trim Replacement - Left Side (Coupe)
CAUTION:
Refer to Fastener Caution .
