Autostart Criteria
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
The ECM will send an Autostart state message to the BCM. If all of the following conditions are true the ECM and BCM will restart the vehicle.
Driver Enabled Conditions that will engage Autostart:
- Transmission in neutral, clutch partially or fully depressed (manual transmission)
- If transmission is in gear, clutch must be fully depressed in order for Autostart (manual transmission)
- Driver removes pressure from the brake or depresses the accelerator pedal while the vehicle is in the forward Drive gear (automatic transmission)
System Enabled Conditions that will engage Autostart as long as transmission is not in gear
NOTE:
If one or more of the following conditions occur, the system will force the engine to restart.
- Brake booster vacuum is less than 40 kPa (6 PSI)
- HVAC inside air temperature changes than 3°C (5°F) (with HVAC Automatic)
- A/C compressor request from HVAC (A/C or Defrost modes)
- Battery voltage less than 11 V,
- Battery state of charge is less than 73% (changes with state of health)
- Diesel particulate filter regeneration is requested (if equipped)
- Autostop mode turned OFF
- Driver door status changes to open and driver seat belt status changes to unbuckled (not applicable to vehicles in North America)
- Hood switch status changes to open
- Autostop time exceeded 5 min
If the crank time exceeds 2 s, a manual ignition switch restart will be necessary.

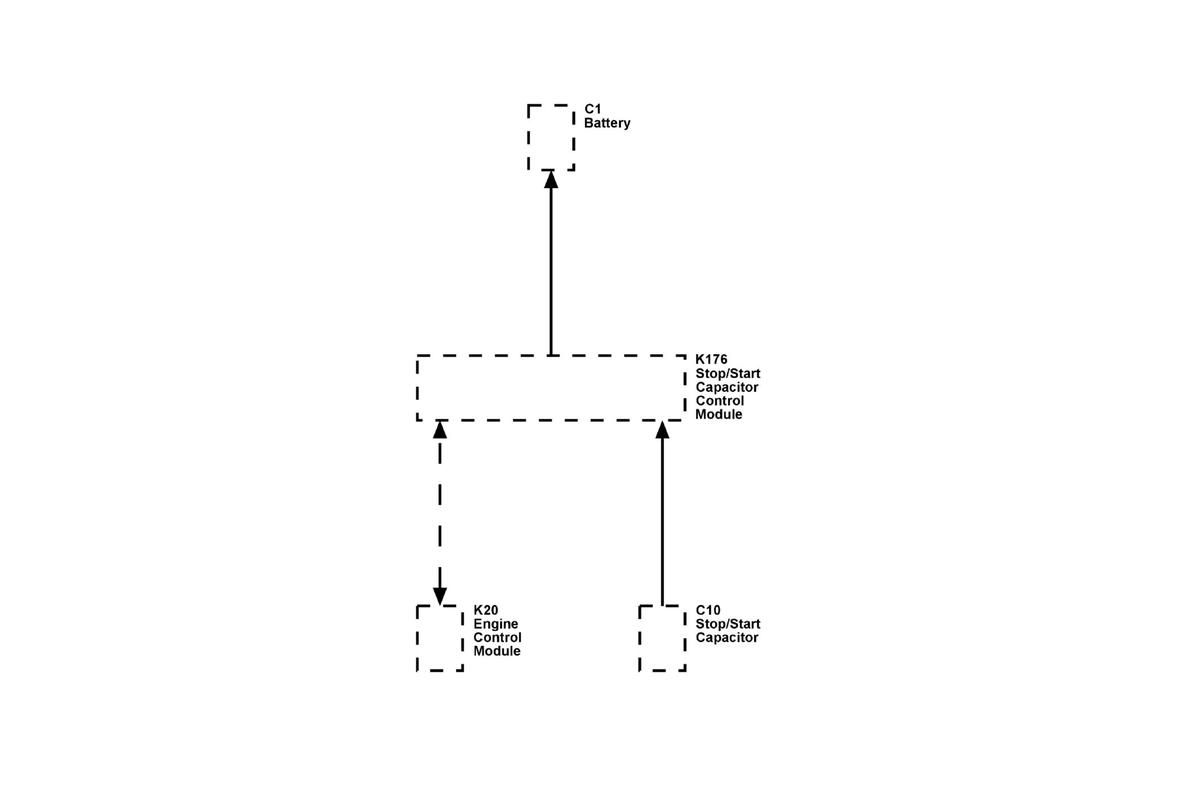

| Callout | Component Name |
|---|---|
| C1 | C1 Battery |
| K176 | K176 Stop/Start Capacitor Control Module |
| C10 | C10 Stop/Start Capacitor |
| K20 | K20 Engine Control Module |
