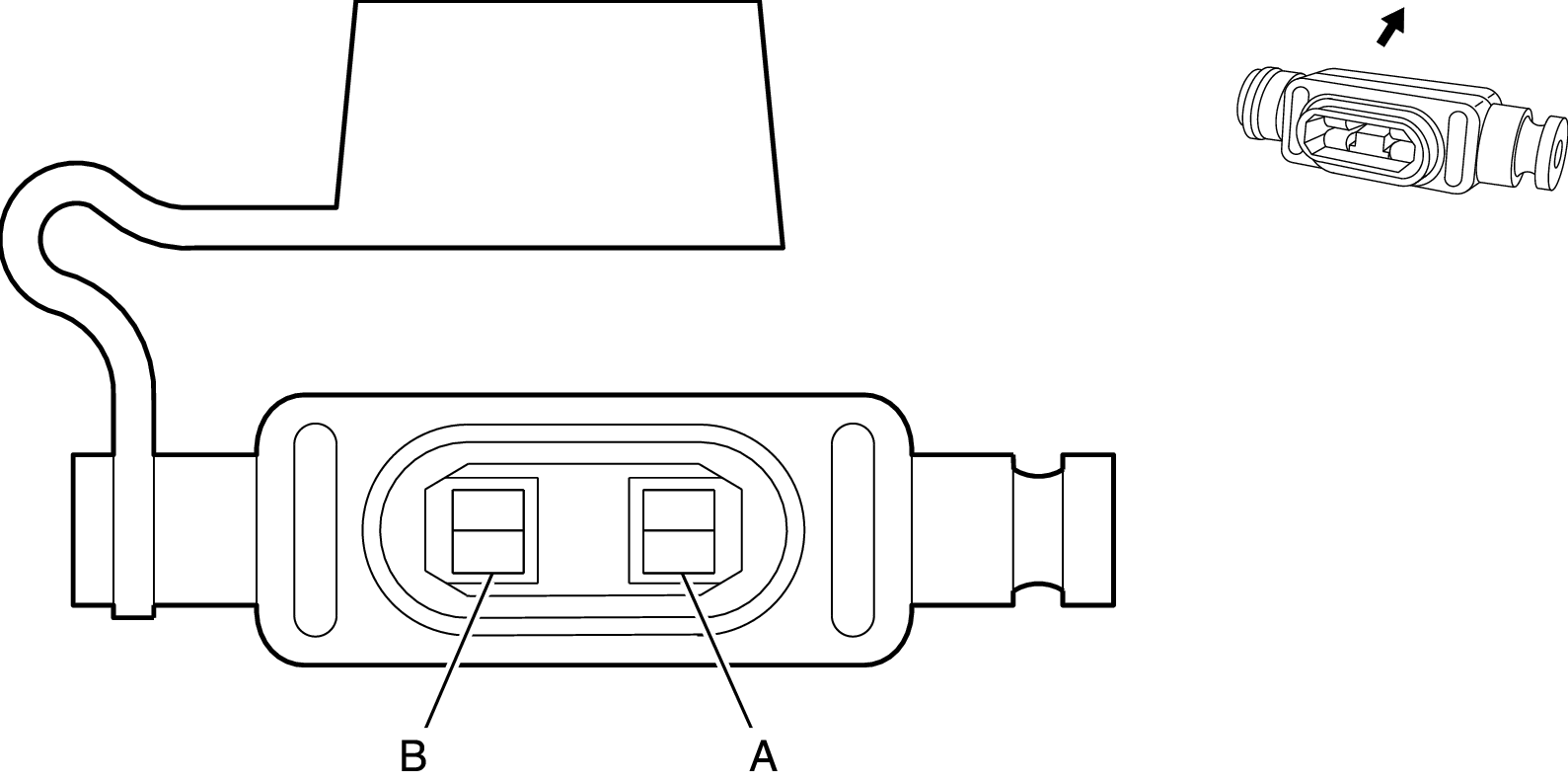

X55MF Fuse Holder - Passenger Seat Forward Movement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: FHM0002ZXJ
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way Fuseholder (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
3.31 |
OG |
4270 |
Co-Driver Power Seat Horizontal Forward Switch Signal |
I |
- |
| B |
3.31 |
OG |
4270 |
Co-Driver Power Seat Horizontal Forward Switch Signal |
I |
- |
