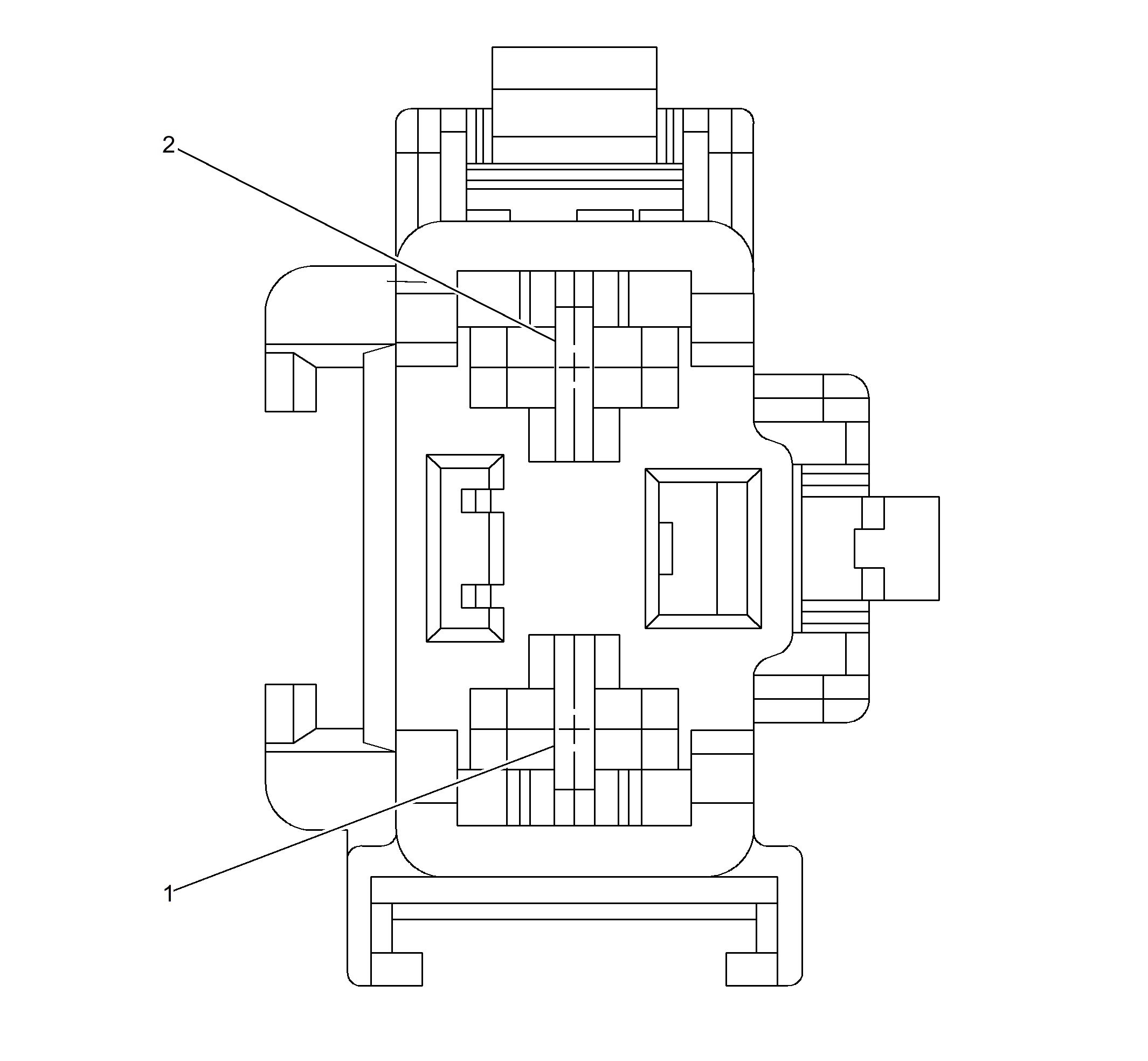

X55AG Fuse Holder - Battery Sensor (KL9)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: E-5972-001
- Service Connector: Service by Component Assembly - See Part Catalog
- Description: -
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13582325 |
J-35616-4A (PU) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
19354372 |
J-35616-4A (PU) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
RD/BN |
4940 |
Battery Positive Voltage |
I |
- |
| 2 |
5 |
RD/WH |
1642 |
Battery Positive Voltage |
II |
- |
