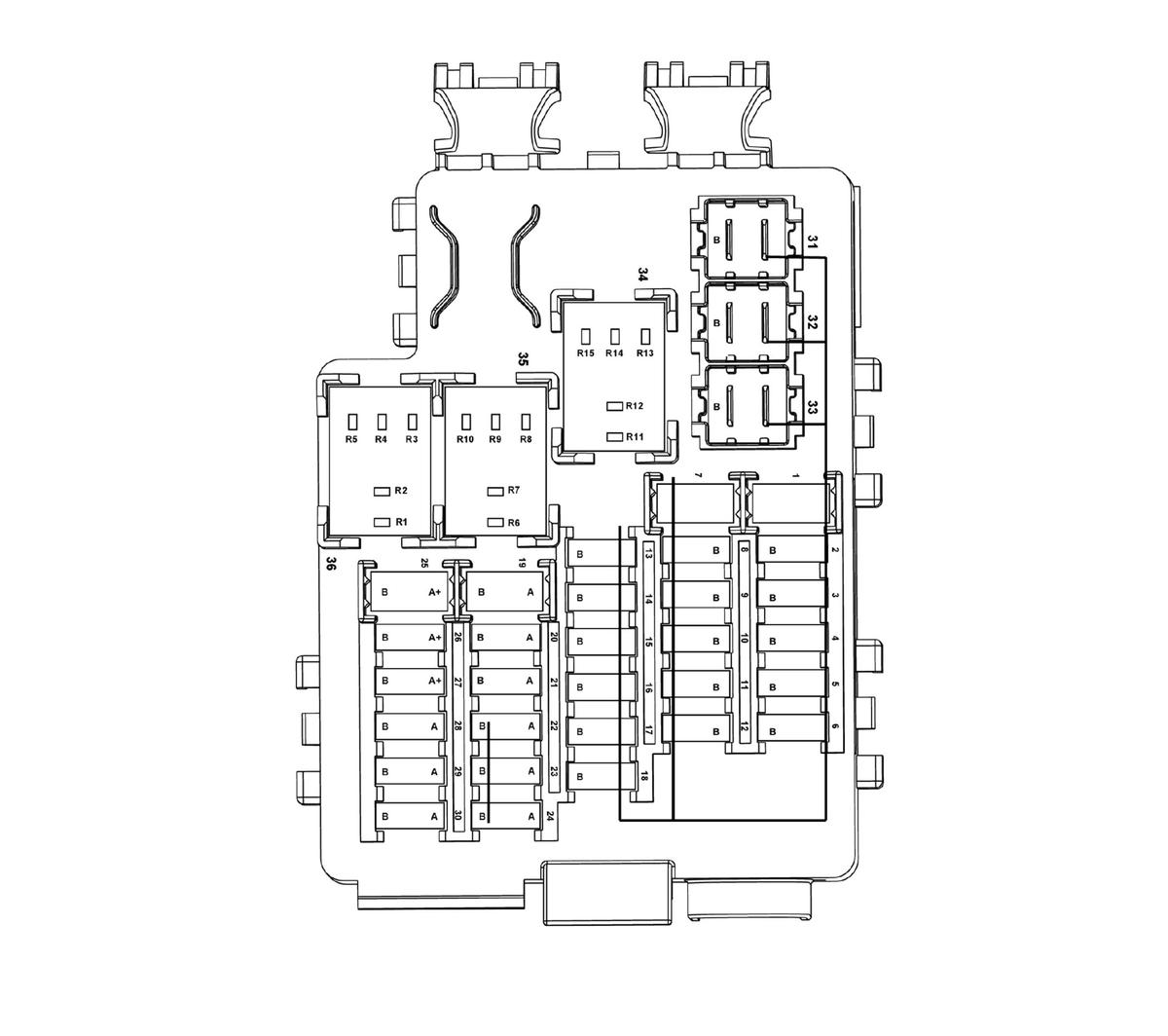

X51A Fuse Block - Instrument Panel Top View
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
X51A FUSE BLOCK - INSTRUMENT PANEL FUSE AND RELAY IDENTIFICATION LEGEND
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| Fuses | ||||
| 1 | APO (ATS/CTS) | F1DA Circuit Breaker | 15A | KR76 Retained Accessory Power Relay |
| 2 | MTR CUPHLDR (CTS) | F2DA Fuse | 10A | Not Used |
| 3 | ESCL | F3DA Fuse | 15A | K60 Steering Column Lock Module (ULS) |
| 4 | EMPTY | F4DA Fuse | - | Not Used |
| 5 | HVAC CNTRL | F5DA Fuse | 15A | K33 HVAC Control Module (KL9 with M3L) |
| 6 | T/T COL | F6DA Fuse | 15A | K99 Steering Column Position Control Module (N38) |
| 7 | EMPTY | F7DA Circuit Breaker | - | Not Used |
| 8 | DLC | F8DA Fuse | 10A | X84 Data Link Connector |
| 9 | GLBX RELSE (CTS) | F9DA Fuse | 10A | Not Used |
| 10 | SHUNT | F10DA Fuse | 30A | F22DA (without VPH), F23DA (without VPH), F24DA (without VPH), KR104A Battery Saver Relay 1 (VPH without KL9 and M3L) |
| 11 | BCM 1 | F11DA Fuse | 10A | K9 Body Control Module |
| 12 | BCM 5 | F12DA Fuse | 15A | K9 Body Control Module |
| 13 | BCM 6 | F13DA Fuse | 10A | K9 Body Control Module |
| 14 | EMPTY | F14DA Fuse | - | Not Used |
| 15 | BCM 7 | F15DA Fuse | 10A | K9 Body Control Module |
| 16 | TCM | F16DA Fuse | 15A | K71 Transmission Control Module (M5N) |
| 17 | EMPTY | F17DA Fuse | - | Not Used |
| 18 | EMPTY | F18DA Fuse | - | Not Used |
| 19 | APO (SLS) | F19DA Fuse | - | Not Used |
| 20 | LTR (SLS) | F20DA Fuse | - | Not Used |
| 21 | WIRELESS CHRGR (SLS) | F21DA Fuse | - | Not Used |
| 22 | SDM/AOS | F22DA Fuse | 10A | K36 Inflatable Restraint Sensing and Diagnostic Module, K85 Passenger Presence Module |
| 23 | RDO DVD/HVAC CNTRL | F23DA Fuse | 15A | A11 Radio (KL9 and M3L), A33 Media Disc Player (WCN with KL9 and M3L), K33 HVAC Control Module (without KL9 and M3L), K74 Human Machine Interface Control Module (IO5 or IO6 with KL9 and M3L), X83 Auxiliary Audio Input (KL9 and M3L) K33 HVAC Control Module (without KL9), |
| 24 | DISPLY | F24DA Fuse | 15A | F27DA, P16 Instrument Cluster, P17 Info Display Module, P29 Head-Up Display (UV6) |
| 25 | HTD/STR/WHL | F25DA Fuse | 7.5A | X55AE Fuse Holder - Steering Wheel Heater (UVD) |
| 26 | WIRELESS CHRGR (ATS/CTS) | F26DA Fuse | 5A | T22 Mobile Device Wireless Charger Module (K4C) |
| 27 | STR/WHL/CNTRL | F27DA Fuse | 2A | S70 Steering Wheel Controls |
| 28 | EMPTY | F28DA Fuse | - | Not Used |
| 29 | VISOR | F29DA Fuse | 2A | A3L Sunshade - Left, A3R Sunshade - Right |
| 30 | EMPTY | F30DA Fuse | - | Not Used |
| 31 | EMPTY | F31DA Fuse | - | Not Used |
| 32 | RAP/ACCY (SLS) | F32DA Fuse | - | Not Used |
| 33 | FRT/HVAC/BLWR | F33DA Fuse | 40A | M8 Blower Motor |
| Relays | ||||
| 34 | RAP/ACCY (ATS/CTS) | KR76 Retained Accessory Power Relay | - | F26DA (K4C), X80G Accessory Power Receptacle - Instrument Panel, X80H Accessory Power Receptacle - Center Console |
| 35 | LOGISTICS | KR104A Battery Saver Relay 1 | - | F22DA (VPH), F23DA (VPH), F24DA (VPH), F27DA (VPH) |
| 36 | RAP/ACCY (SLS) GLBX RELSE (CTS) |
- | - | Not Used |
