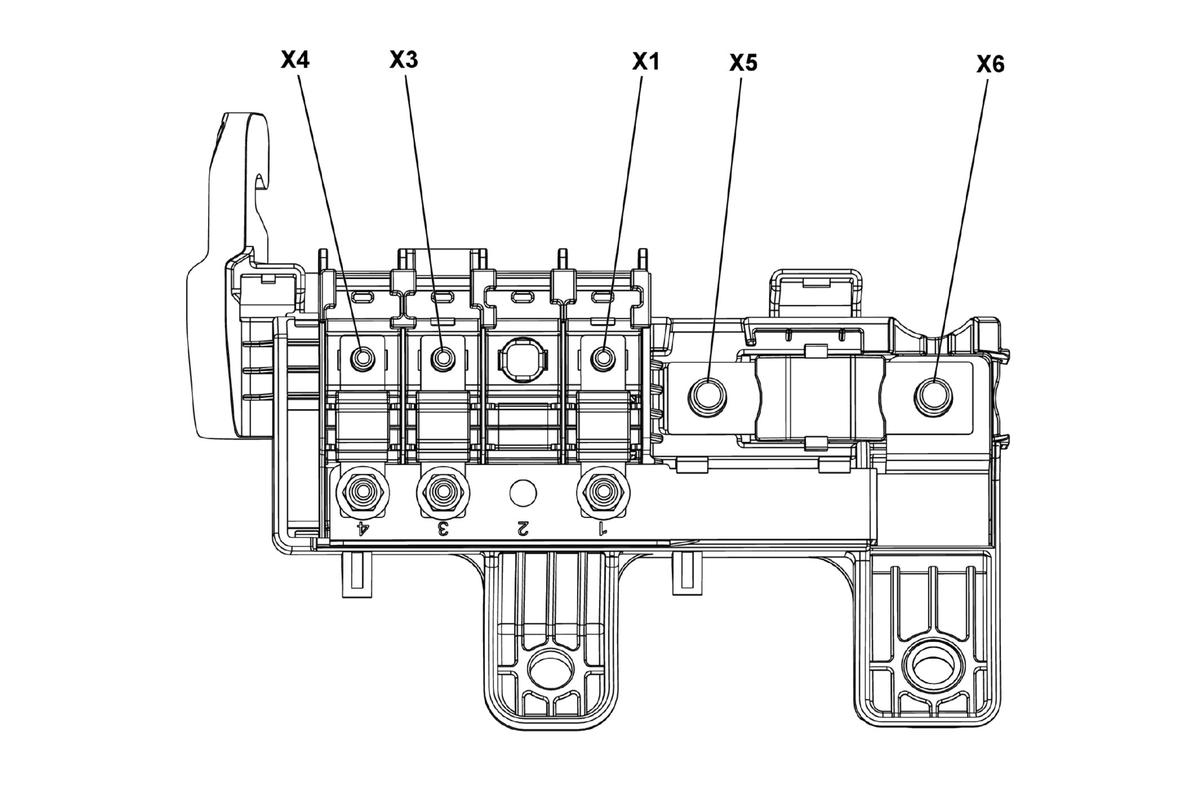

X50B Fuse Block - Underhood Auxiliary Top View (without KL9)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
X50B FUSE BLOCK - UNDERHOOD AUXILIARY FUSE IDENTIFICATION (WITHOUT KL9)
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| Fuses | ||||
| 1 | - | F1UB | 70A | K43 Power Steering Control Module |
| 2 | - | F2UB | 60A | Not Used |
| 3 | - | F3UB | 100A | Not Used |
| 4 | - | F4UB | 70A (LCV/LTG) 100A (LF4) |
K22 Cooling Fan Control Module (LCV/LTG) G10 Cooling Fan Motor (LF4) |
| 5 | - | F5UB | 200A | G13 Generator |
