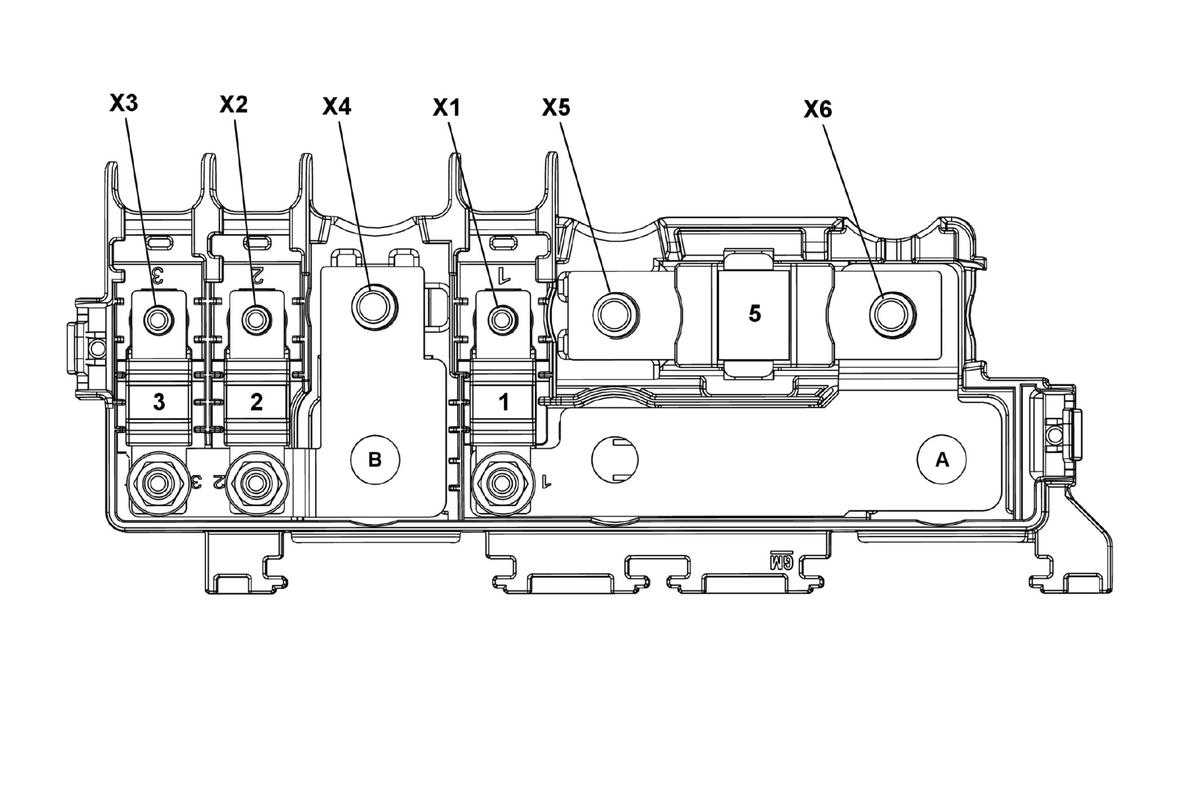

X50B Fuse Block - Underhood Auxiliary Top View (KL9)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY X50B FUSE BLOCK - UNDERHOOD AUXILIARY FUSE IDENTIFICATION (KL9)
| No. |
Device Label Name |
Device Assigned Name |
Rating |
Description |
| Fuses |
| 1 |
- |
F1UB |
- |
K22 Cooling Fan Control Module |
| 2 |
- |
F2UB |
- |
K43 Power Steering Control Module |
| 3 |
- |
F3UB |
- |
Not Used |
| 5 |
- |
F5UB |
- |
G13 Generator |
