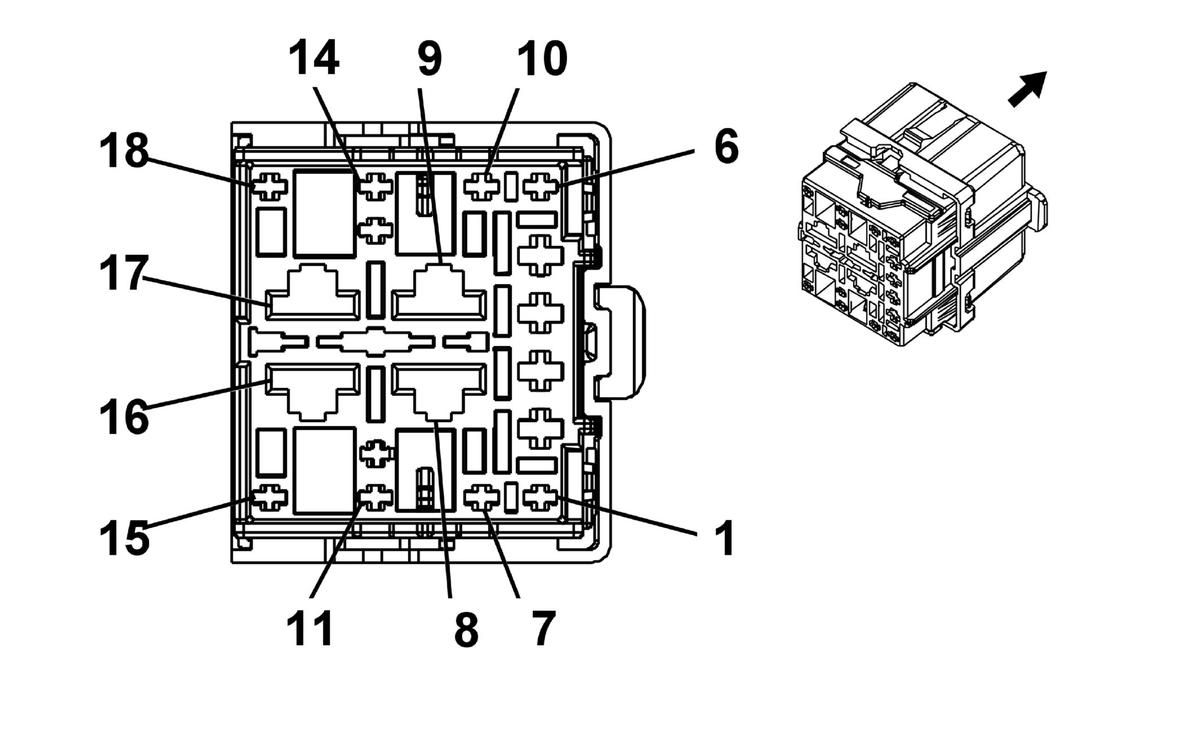

X50A Fuse Block - Underhood X3
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13585277
- Service Connector: 19300572
- Description: 18-Way F 1.5, 2.8, 8.0 DSQ Series
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575355 |
J-35616-44 (YE) |
J-38125-558 |
12110127 |
Delphi 19 |
F |
G |
| II |
13575718 |
J-35616-44 (YE) |
J-38125-558 |
12110127 |
Delphi 19 |
F |
G |
| III |
13575773 |
J-35616-14 (GN) |
J-38125-560 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
BN |
6305 |
Brake Vacuum Switch Signal |
III |
LF4 |
| 7 |
0.35 |
RD/BU |
540 |
Battery Positive Voltage |
III |
LF4 |
| 8 |
2.5 |
RD/YE |
3740 |
Battery Positive Voltage |
I |
- |
| 9 |
4 |
RD/YE |
442 |
Battery Positive Voltage |
II |
- |
| 10 - 18 |
- |
- |
- |
Not Occupied |
- |
- |
