Section 179 (Component Locator - Electrical Center Identification Views)
>>
Electrical Center Identification Views
>>
X50A Fuse Block - Underhood Bottom View (KL9)
X50A Fuse Block - Underhood Bottom View (KL9)
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

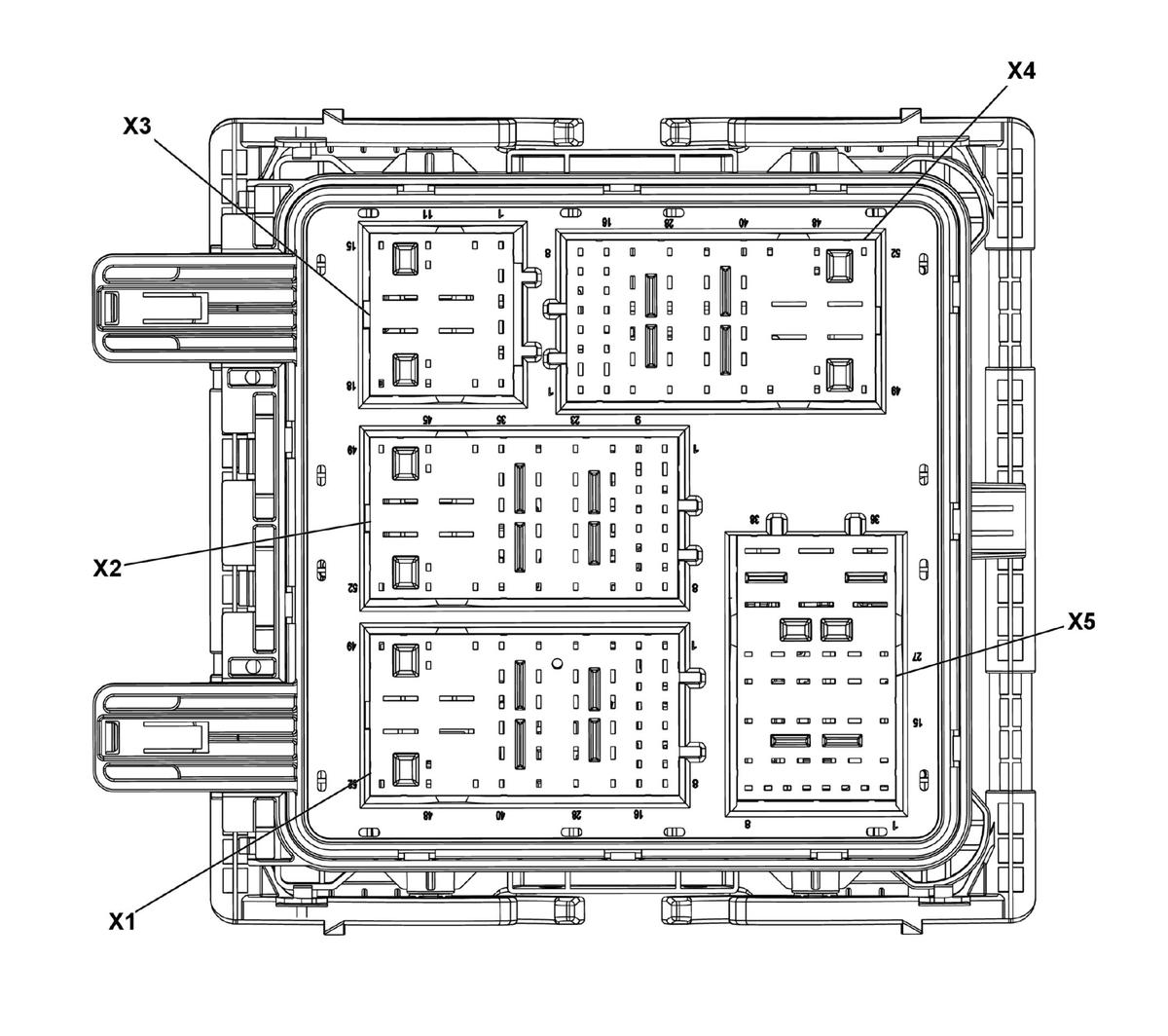

Fig 1: X50A Fuse Block - Underhood Bottom View (KL9)
Courtesy of GENERAL MOTORS COMPANY
