Steering Wheel Airbag Coil Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

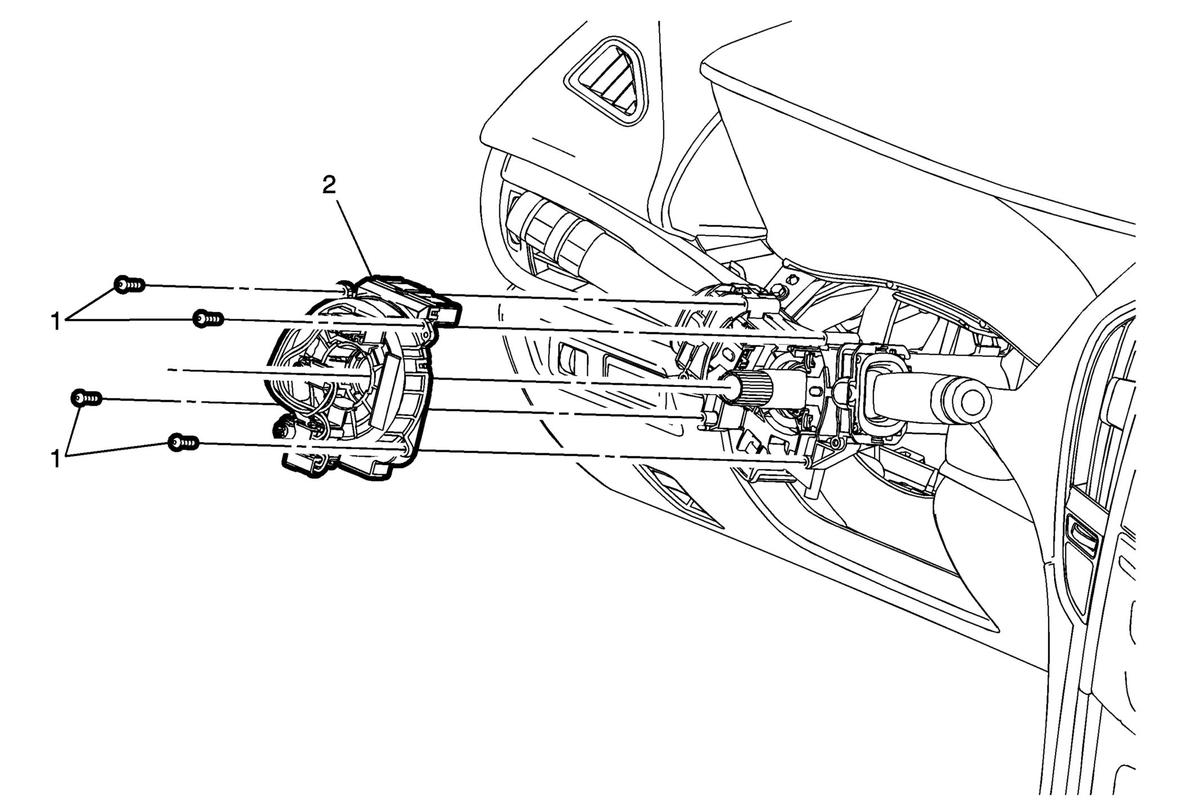

Fig 1: Steering Wheel Airbag Coil
GM2809746Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Replacement
  2. Steering Column Lower Trim Cover Replacement
1 Steering Wheel Airbag Coil Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .
2 Steering Wheel Airbag Coil

Procedure

  1. Disconnect the electrical connectors.
  2. Transfer components as necessary.
  3. Ensure the steering wheel airbag coil is CENTERED during installation. Airbag Steering Wheel Module Coil Centering
