Instrument Panel Airbag Arming Status Display Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement . |
|

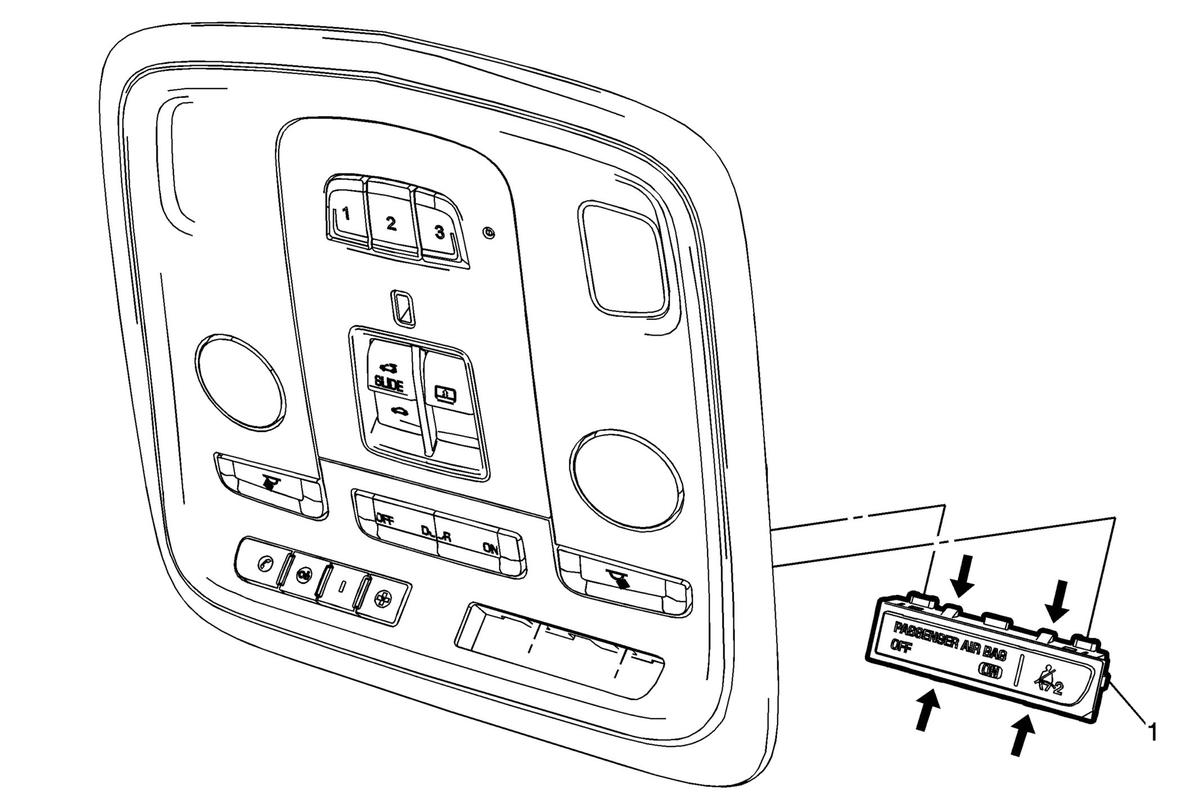

| 1 | Inflatable Restraint Instrument Panel Module Indicator Assembly Procedure Depress the 4 tabs to release from the roof console. |
