Cooling Fan (LCV)/(LGX-Y4Q)/(LTG-V03)
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

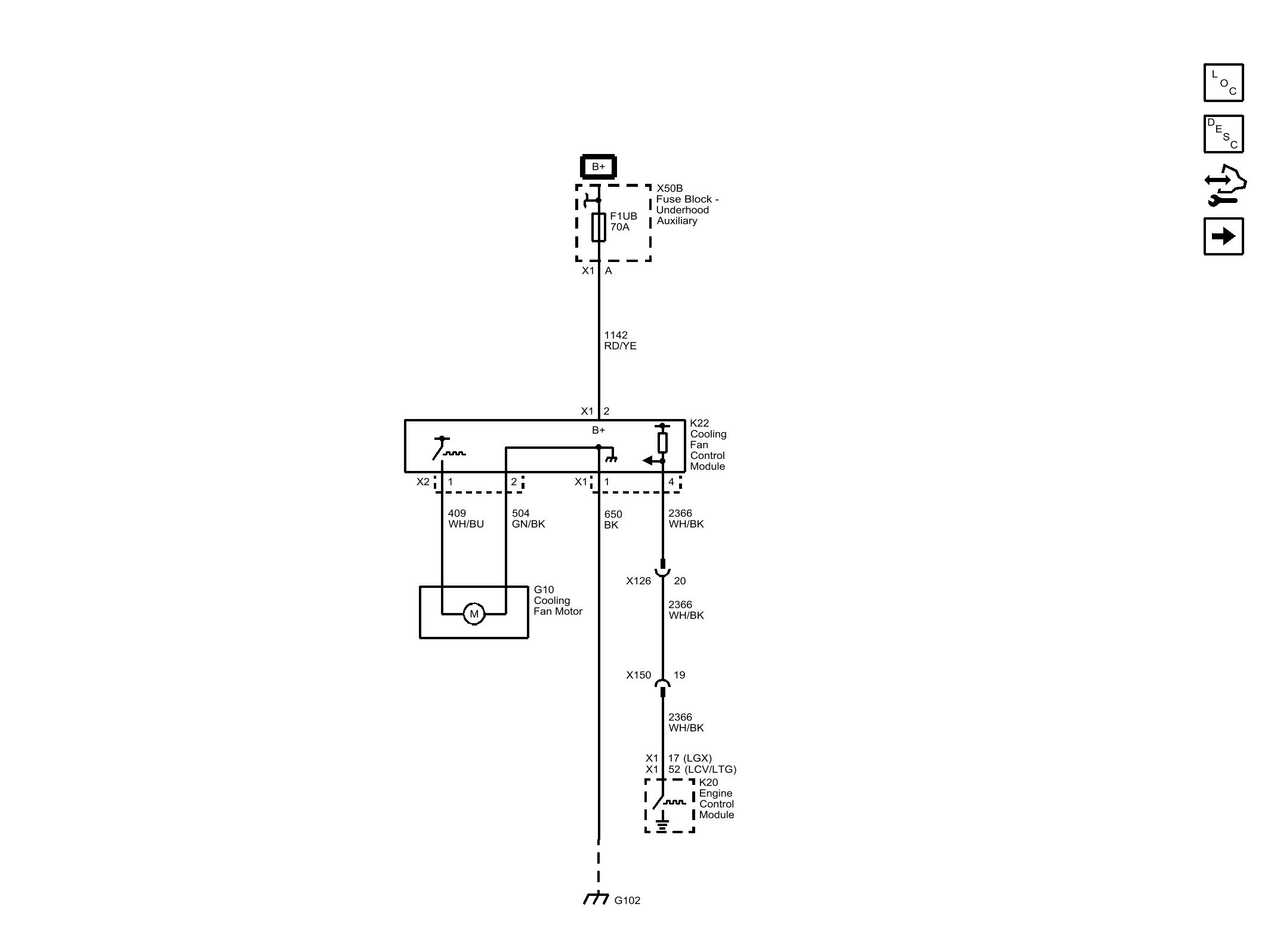

Fig 1: Cooling Fan (LCV)/(LGX-Y4Q)/(LTG-V03)
Courtesy of GENERAL MOTORS COMPANY
