Water Pump Replacement (LGX)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

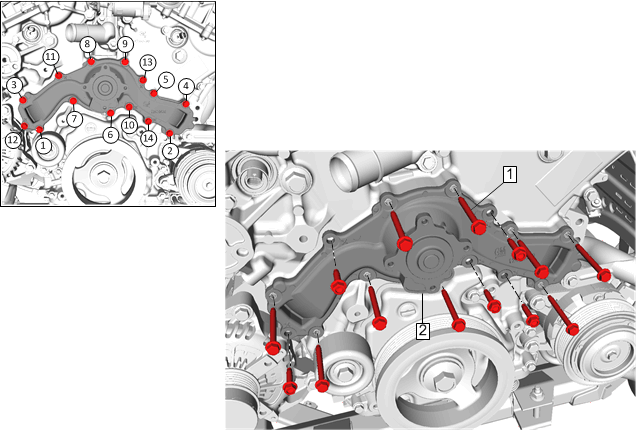

Fig 1: Water Pump (LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716) Drive Belt Tensioner Replacement (LGX) Water Pump Pulley Replacement (LGX)
1	Water Pump Bolt (Qty: 14) CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. CAUTION: Refer to Fastener Caution . NOTE: Install NEW bolts. Take note that there are different bolt lengths. Tighten in sequence 15 N.m (11 lb ft)
2	Water Pump NOTE: Install a NEW gasket.

Callout

Component Name

Preliminary Procedures

Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
Drive Belt Tensioner Replacement (LGX)
Water Pump Pulley Replacement (LGX)

Water Pump Bolt (Qty: 14)

CAUTION:

This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

CAUTION:

Refer to Fastener Caution .

NOTE:

Install NEW bolts.
Take note that there are different bolt lengths.

Tighten in sequence
15 N.m (11 lb ft)

Water Pump

NOTE:

Install a NEW gasket.
