Radiator Upper Bracket Replacement - Right Side (LF4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

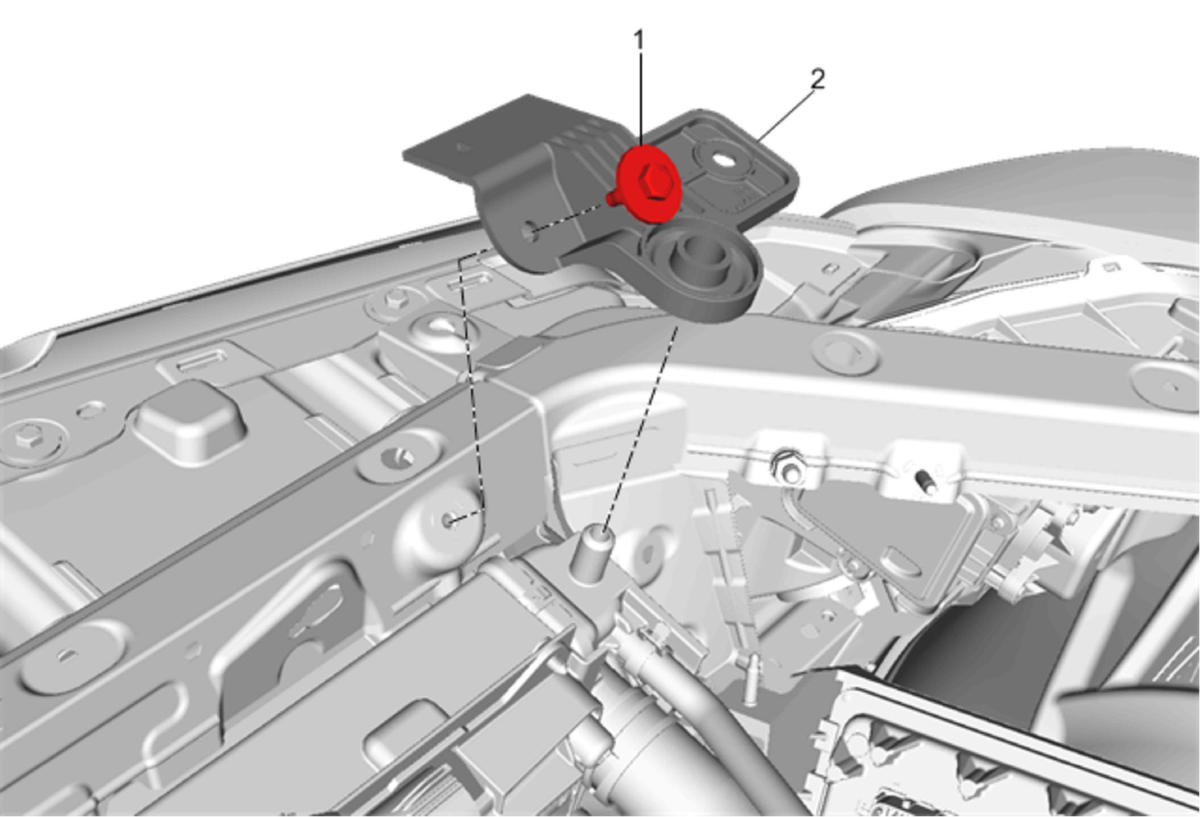

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Compartment Front Sight Shield Replacement (ATS-V) |
|
| 1 | Radiator Upper Bracket Fastener
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Radiator Upper Bracket |
