Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
- Install the radiator outlet hose to the vehicle.

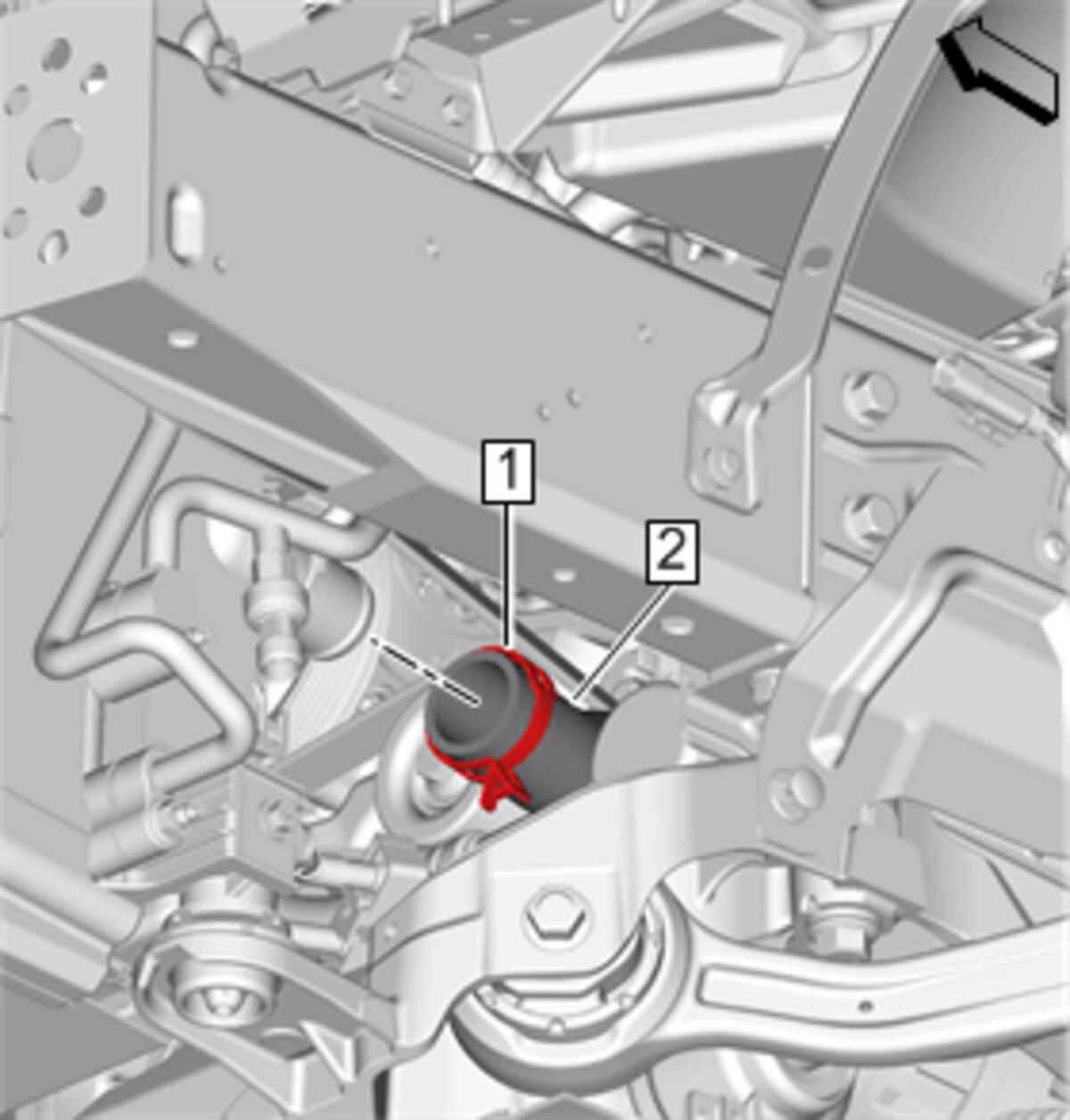

- Install Radiator Outlet Hose (1) @Water Pump Inlet Pipe
- Install Hose Clamp (2)
GE-47622 Hose Clamp Pliers
- Install Air Cleaner Assembly (1) - Air Cleaner Assembly Replacement (LGX)
- Install Radiator Outlet Hose (2) @Radiator
- Install Hose Clamp (1)
GE-47622 Hose Clamp Pliers
- Fill the cooling system. Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
- Fill the cooling system to the proper level. Cooling System Leak Testing .
