Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect Radiator Outlet Hose (2)

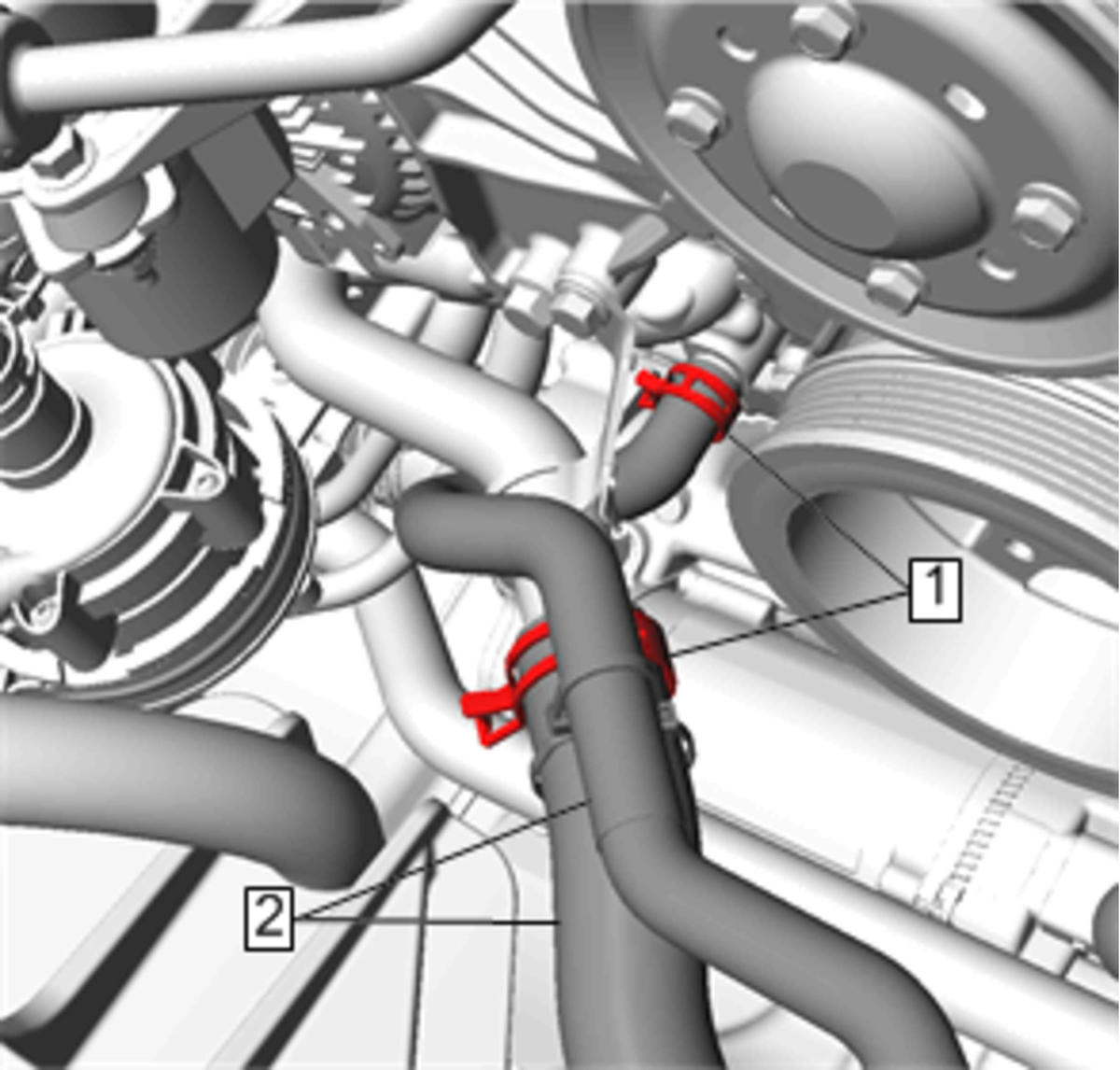

    2. Fig 1: Radiator Outlet Hose And Clamp
    GM4044991Courtesy of GENERAL MOTORS COMPANY
  2. Install Radiator Outlet Hose Clamp (1)
  3. Connect Radiator Outlet Hose (2)

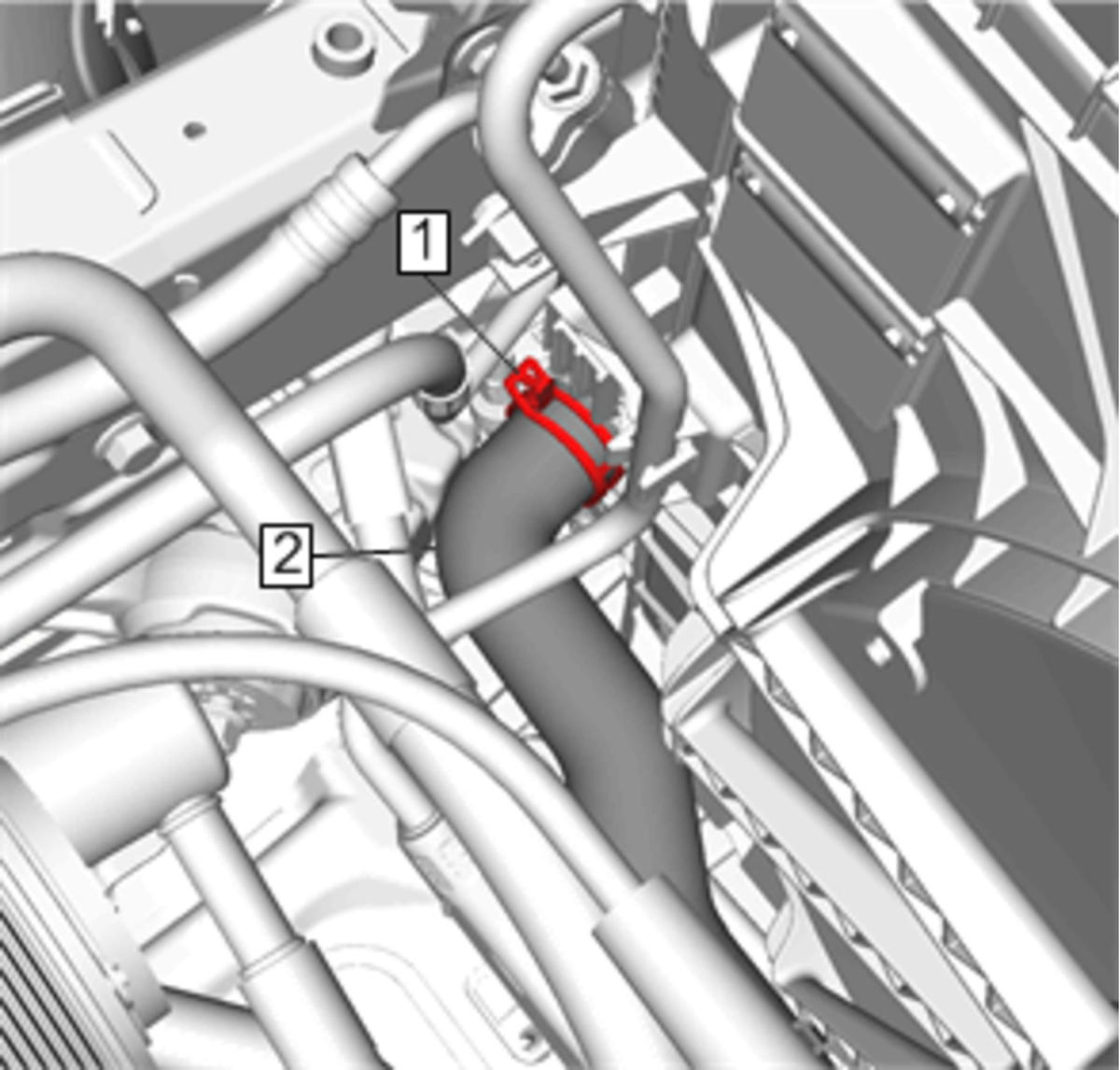

    4. Fig 2: Radiator Outlet Hose And Clamp
    GM4044993Courtesy of GENERAL MOTORS COMPANY
  4. Install Radiator Outlet Hose Clamp (1)
  5. Fill the cooling system. Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
