Radiator Drain Plug Replacement (LTG)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

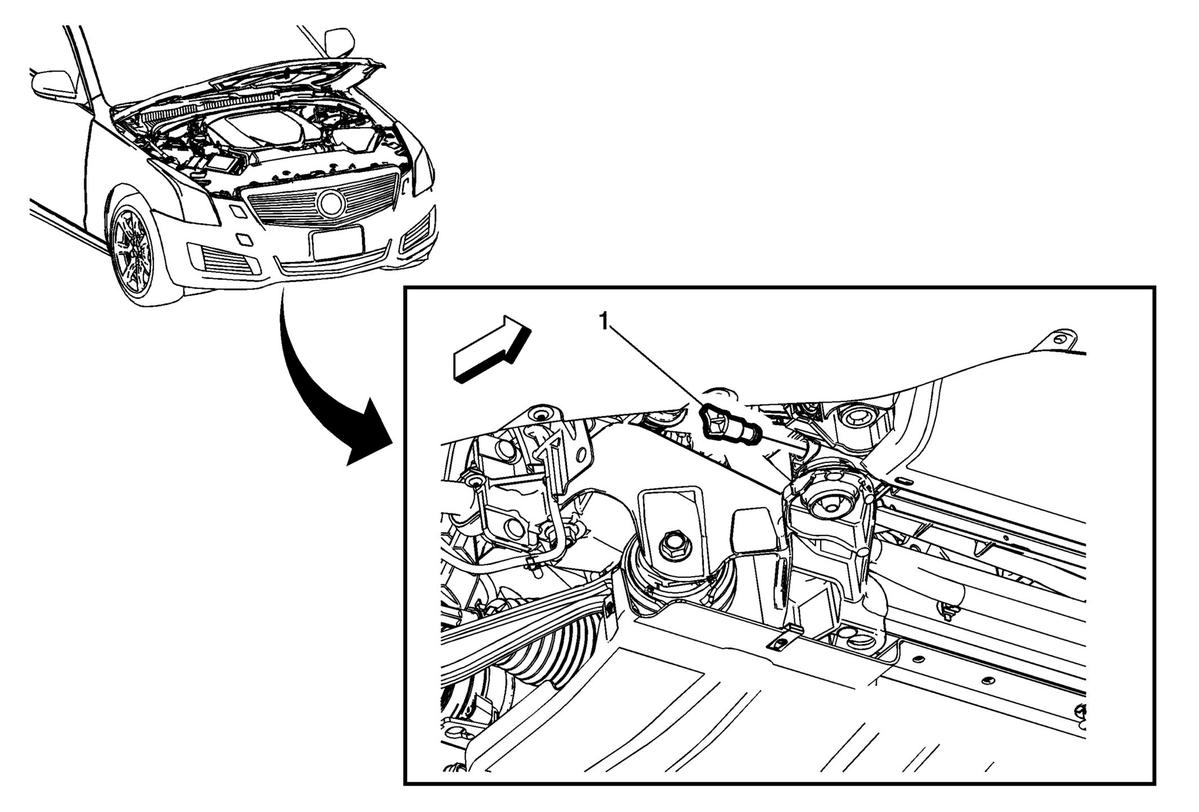

Fig 1: Radiator Drain Plug (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) . Remove the front air deflector. Refer to Front Air Deflector Replacement . Place a drain pan under the right side of the radiator.
1	Radiator Drain Plug CAUTION: Refer to Fastener Caution . Procedure Fill coolant to the proper level. Refer to Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716) .

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
Remove the front air deflector. Refer to Front Air Deflector Replacement .
Place a drain pan under the right side of the radiator.

Radiator Drain Plug

CAUTION:

Refer to Fastener Caution .

Procedure
Fill coolant to the proper level. Refer to Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716) .
