Radiator Drain Plug Replacement (LGX)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

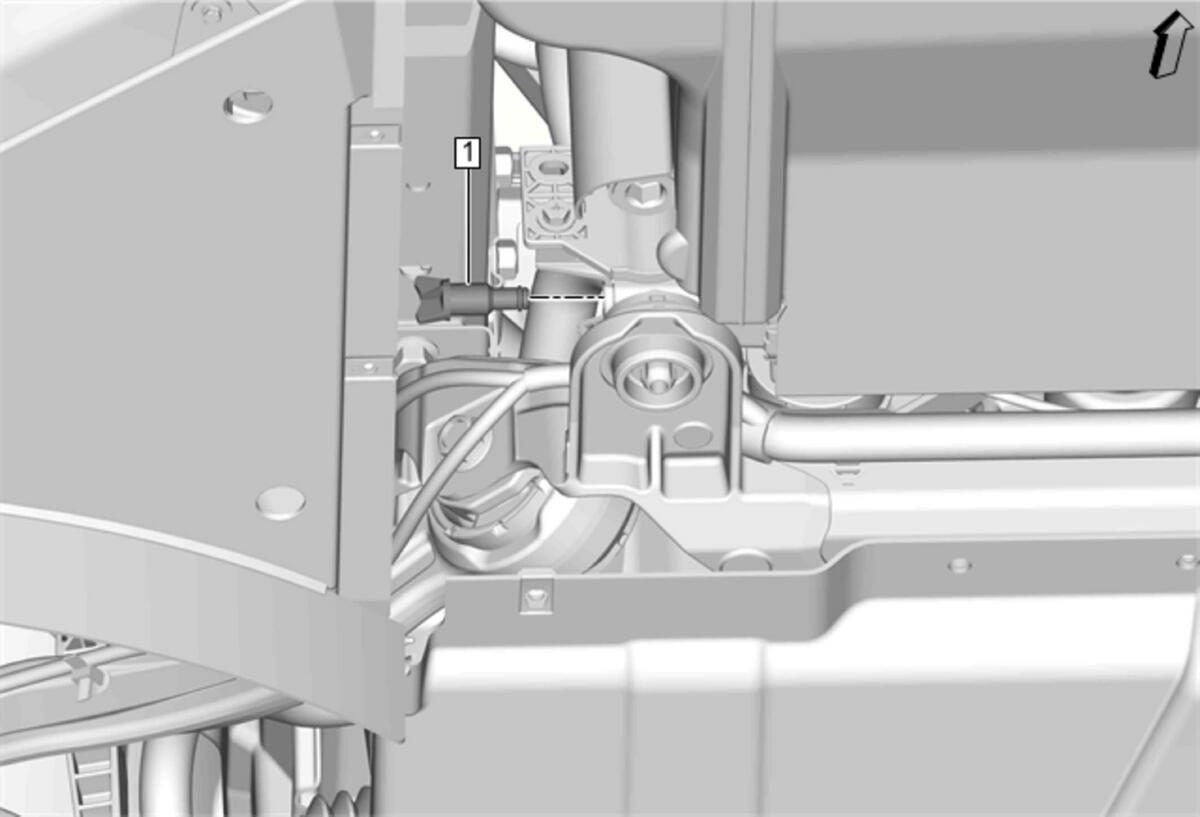

Fig 1: Radiator Drain Plug (LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Air Deflector Replacement Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
1	Radiator Drain Plug Procedure Inspect for coolant leaks.

Callout

Component Name

Preliminary Procedures

Front Air Deflector Replacement
Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)

Radiator Drain Plug
Procedure
Inspect for coolant leaks.
