Radiator Air Lower Baffle and Deflector Replacement (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

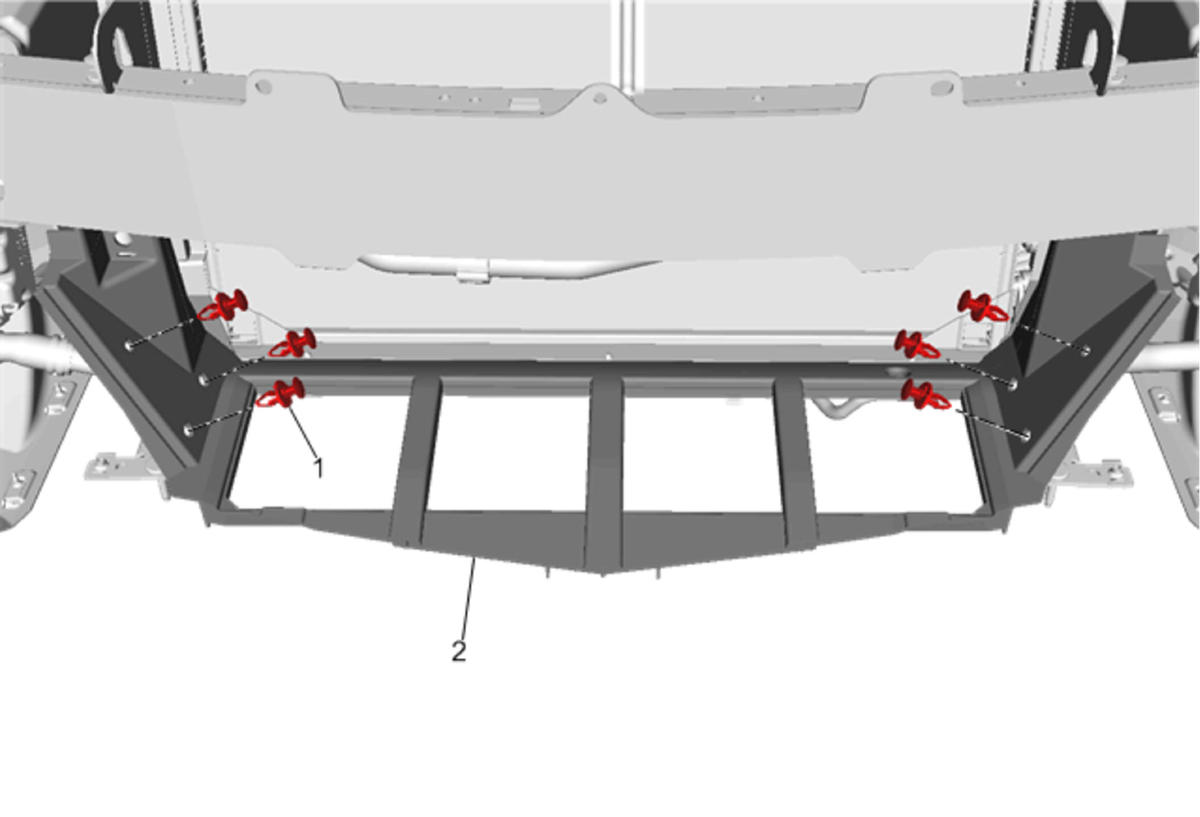

Fig 1: Radiator Air Lower Baffle and Deflector (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (V) Ambient Air Temperature Gauge Sensor Replacement (LF4)
1	Radiator Air Baffle Retainer (Qty: 6)
2	Radiator Air Baffle

Callout

Component Name

Preliminary Procedure

Front Bumper Fascia Replacement (V)
Ambient Air Temperature Gauge Sensor Replacement (LF4)

Radiator Air Baffle Retainer (Qty: 6)

Radiator Air Baffle
