Engine Oil Cooler Replacement (LGX)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

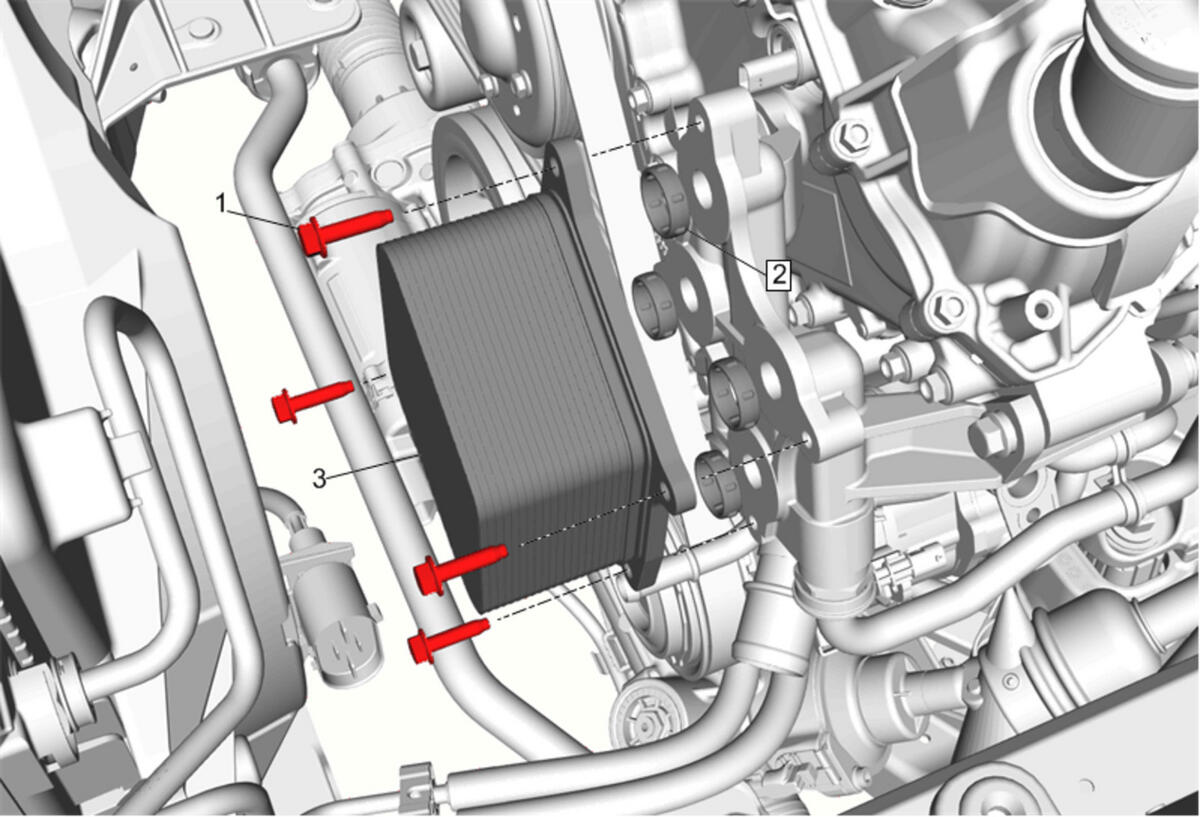

Fig 1: Engine Oil Cooler (LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716) Drain the engine oil. Engine Oil and Oil Filter Replacement (LGX, RWD)Engine Oil and Oil Filter Replacement (LGX, AWD) Air Cleaner Outlet Duct Replacement (LGX)
1	Engine Oil Cooler Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Engine Oil Cooler Seal (Qty: 4) Procedure Install NEW engine oil cooler seals.
3	Engine Oil Cooler NOTE: Place rags under the cooler to catch oil and coolant. Procedure Fill the engine oil to proper level. Approximate Fluid Capacities (LGX) , and Adhesives, Fluids, Lubricants, and Sealers (LGX) Fill the engine coolant to proper level. Adhesives, Fluids, Lubricants, and Sealers , and Approximate Fluid Capacities
