Engine Oil Cooler Pipe/Hose Quick Connect Fitting Replacement (LGX, Lower)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

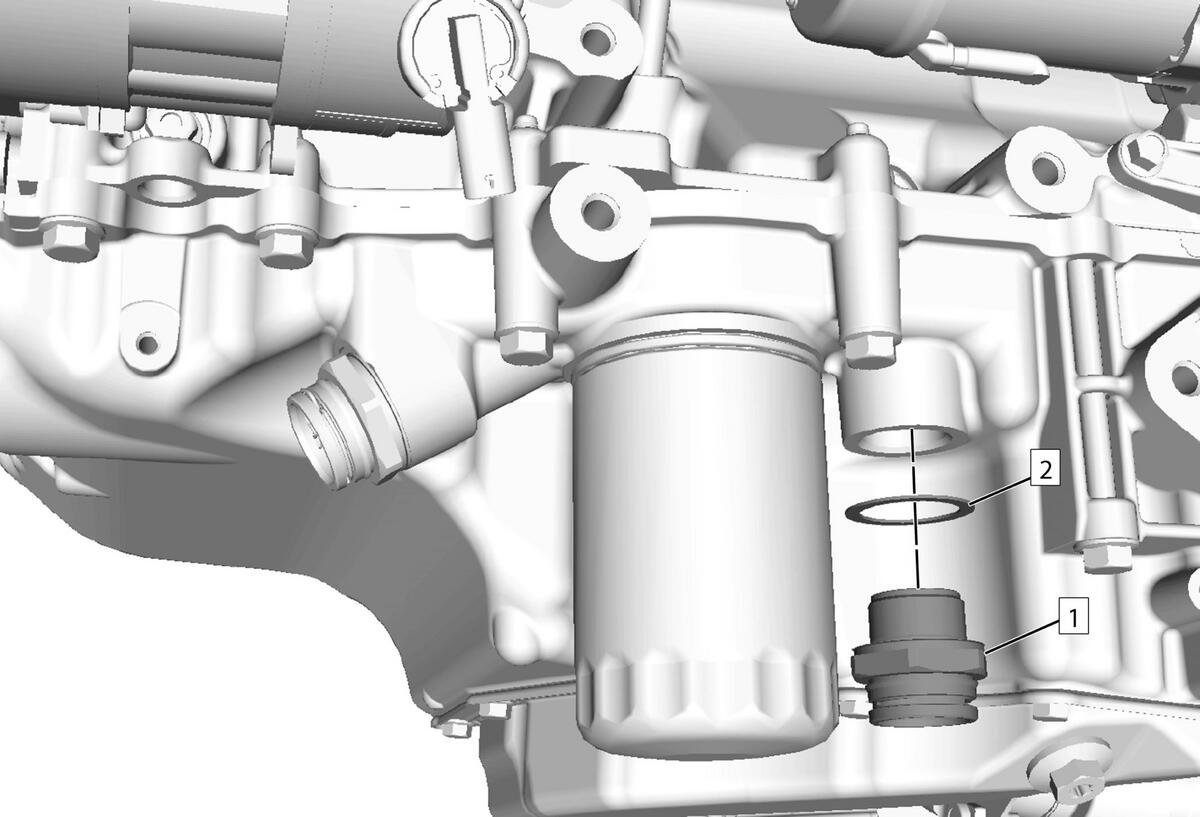

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the engine oil cooler Inlet hose. Engine Oil Cooler Inlet Hose Replacement (LF4) . |
|
| 1 | Engine Oil Cooler Inlet Hose Fitting
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 35 N.m (26 lb ft) |
| 2 | Inlet Hose Fitting Seal Ring Procedure Install NEW seal rings. |
