Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

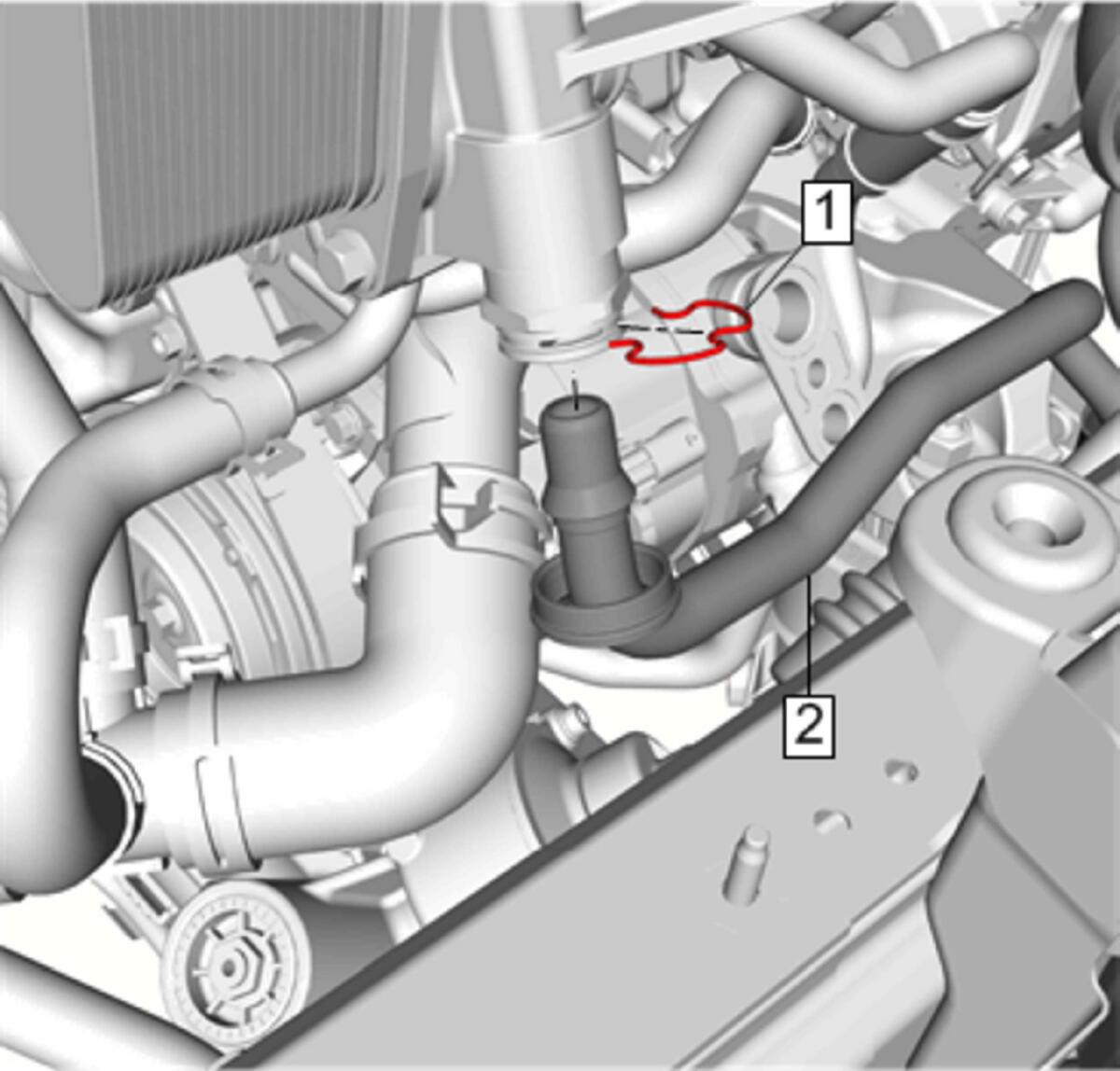

    Fig 1: Engine Oil Cooler Pipe Retainer
    GM4178789Courtesy of GENERAL MOTORS COMPANY
  1. Install Engine Oil Cooler Pipe (2)
  2. Install Engine Oil Cooler Pipe Retainer (1)
    3. Fig 2: Retaining Clip
    GM4427648Courtesy of GENERAL MOTORS COMPANY
  3. Install Engine Oil Cooler Pipe Retainer Clip (1)

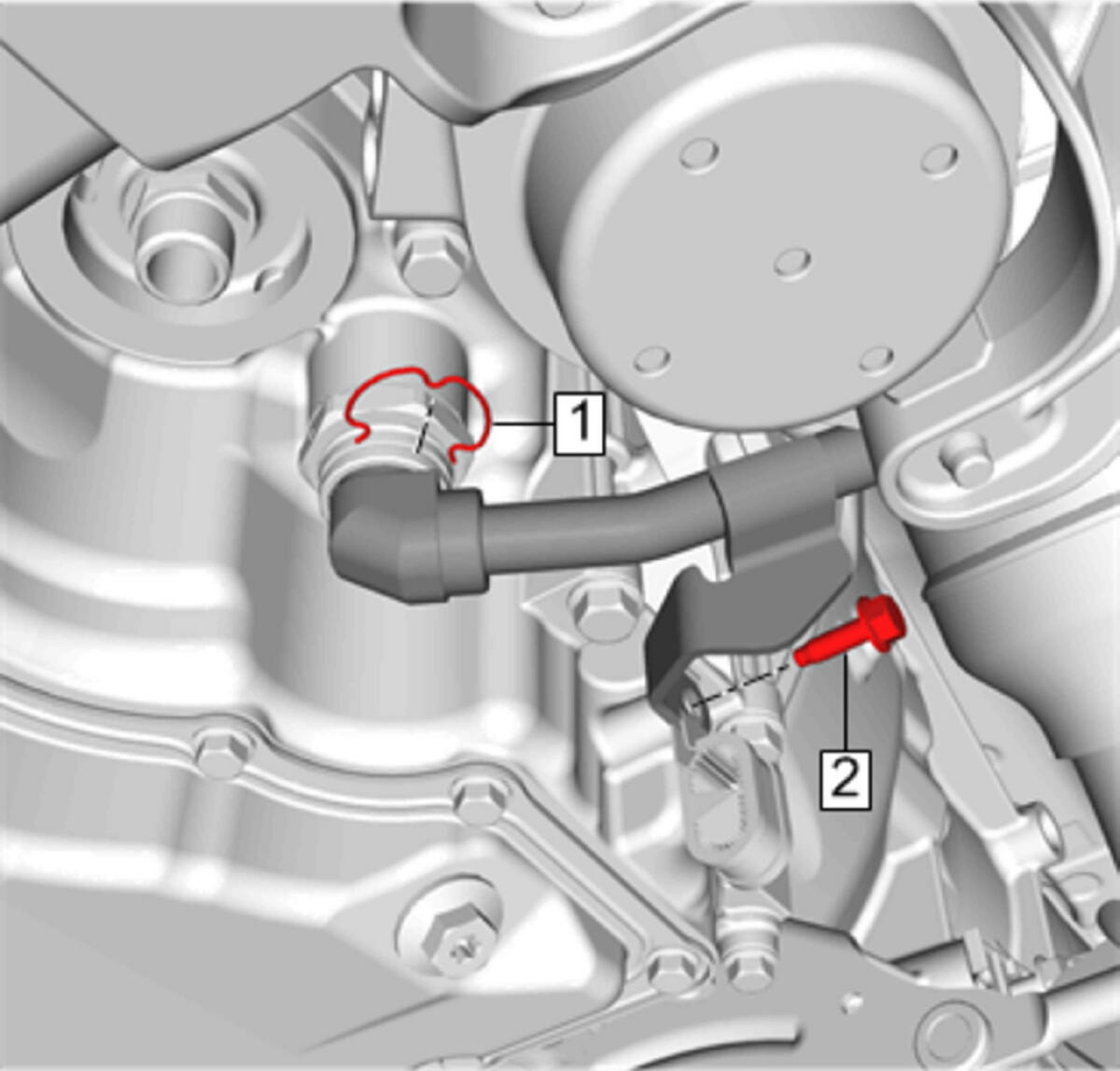

    4. Fig 3: Engine Oil Cooler Pipe Retainer
    GM4178788Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install Engine Oil Cooler Pipe Fastener (2) and tighten 10 N.m (89 lb in)
  5. Install Engine Oil Cooler Pipe Retainer (1)
  6. Install Air Cleaner Assembly.Air Cleaner Assembly Replacement (LGX)
  7. Install Air Cleaner Outlet Duct.Air Cleaner Outlet Duct Replacement (LGX)
  8. Install a NEW oil filter. Engine Oil and Oil Filter Replacement (LGX, RWD)Engine Oil and Oil Filter Replacement (LGX, AWD)
  9. Check and correct the engine oil level. Approximate Fluid Capacities (LGX) , and Adhesives, Fluids, Lubricants, and Sealers (LGX)
