Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

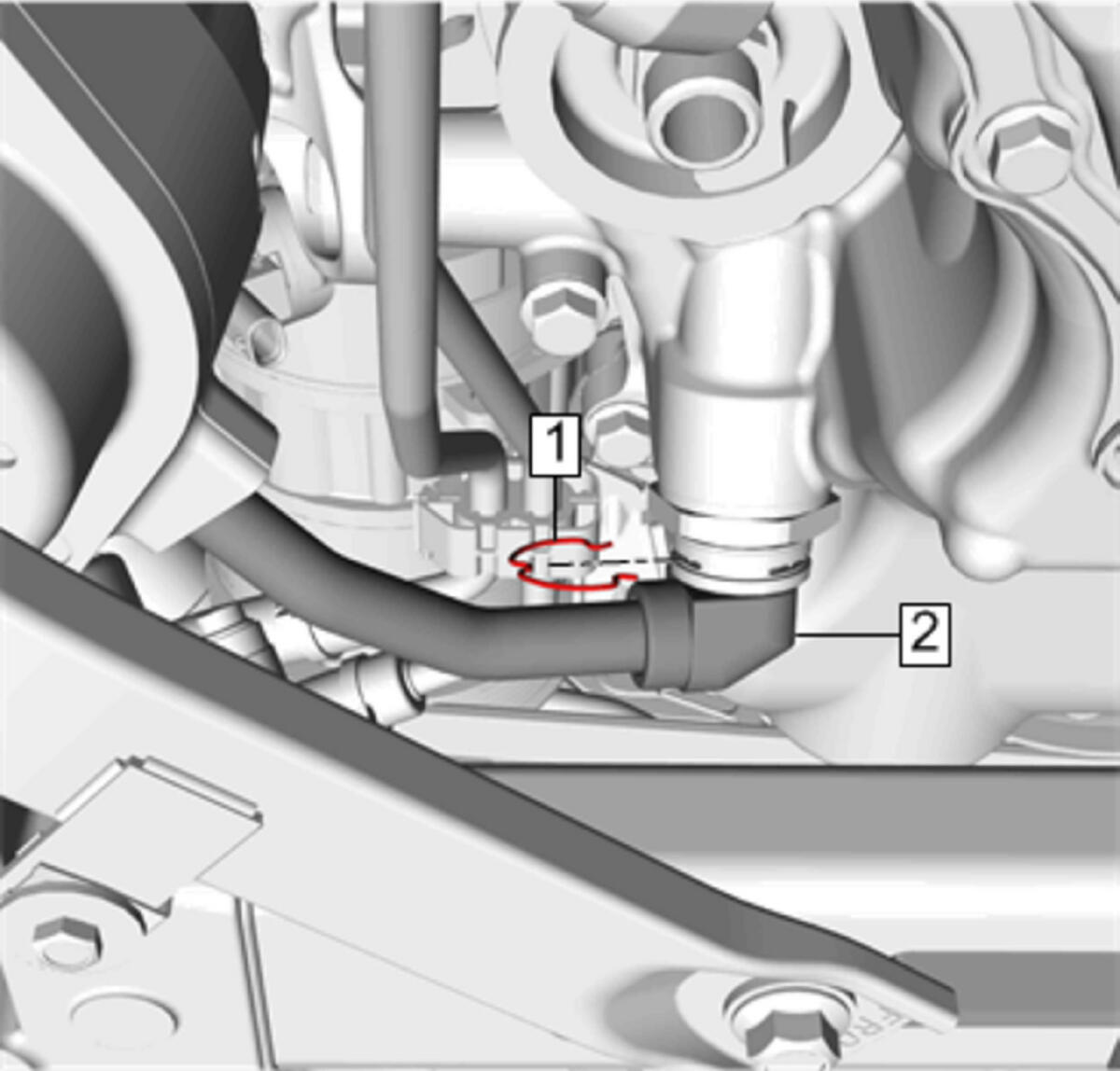

    Fig 1: Engine Oil Cooler Pipe Retainer
    GM4178821Courtesy of GENERAL MOTORS COMPANY
  1. Install Engine Oil Cooler Pipe (2)
  2. Install Engine Oil Cooler Pipe Retainer (1)

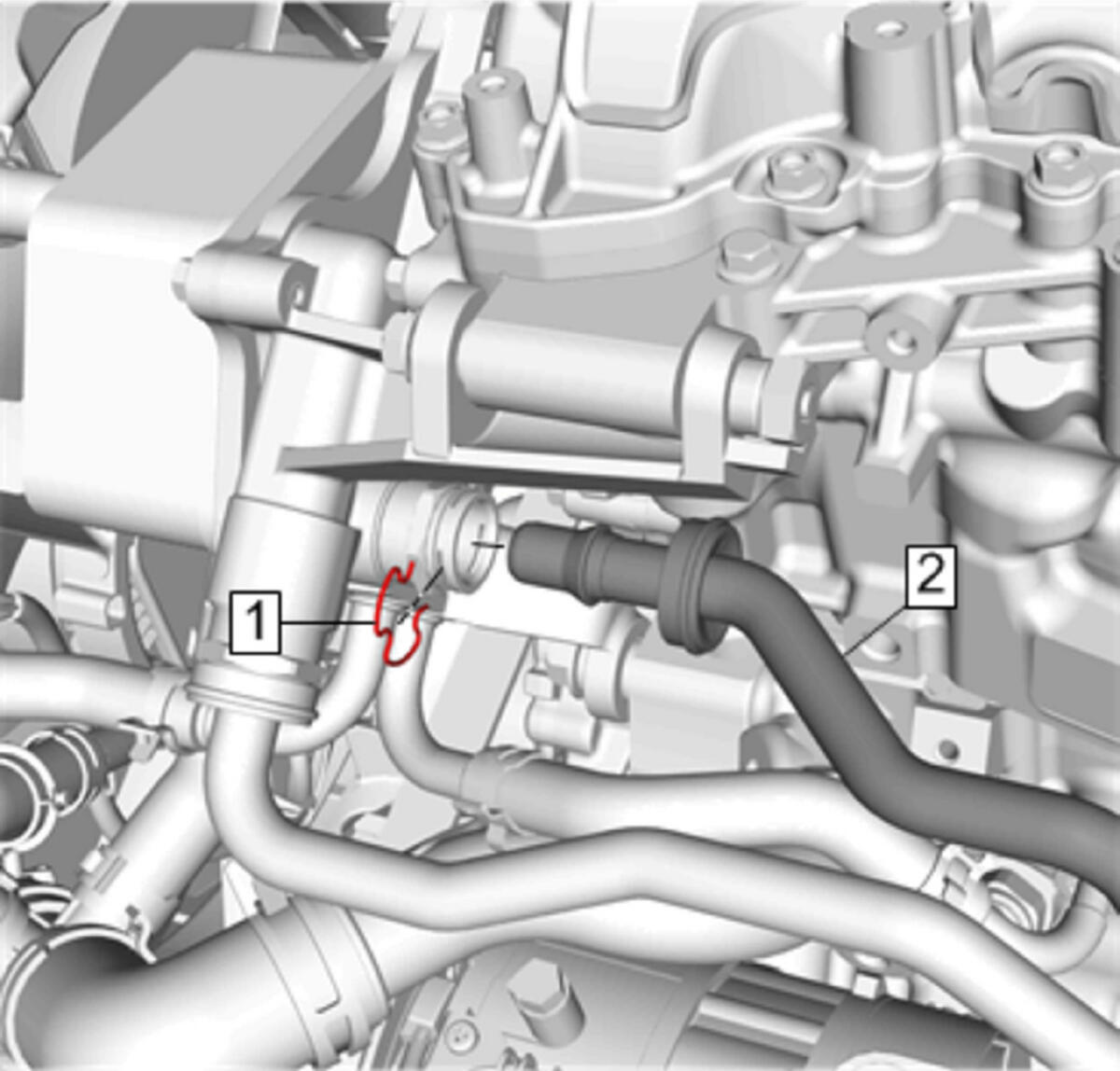

    3. Fig 2: Engine Oil Cooler Pipe Retainers
    GM4178814Courtesy of GENERAL MOTORS COMPANY
  3. Connect Engine Oil Cooler Pipe (2)
  4. Install Engine Oil Cooler Pipe Retainer (1)

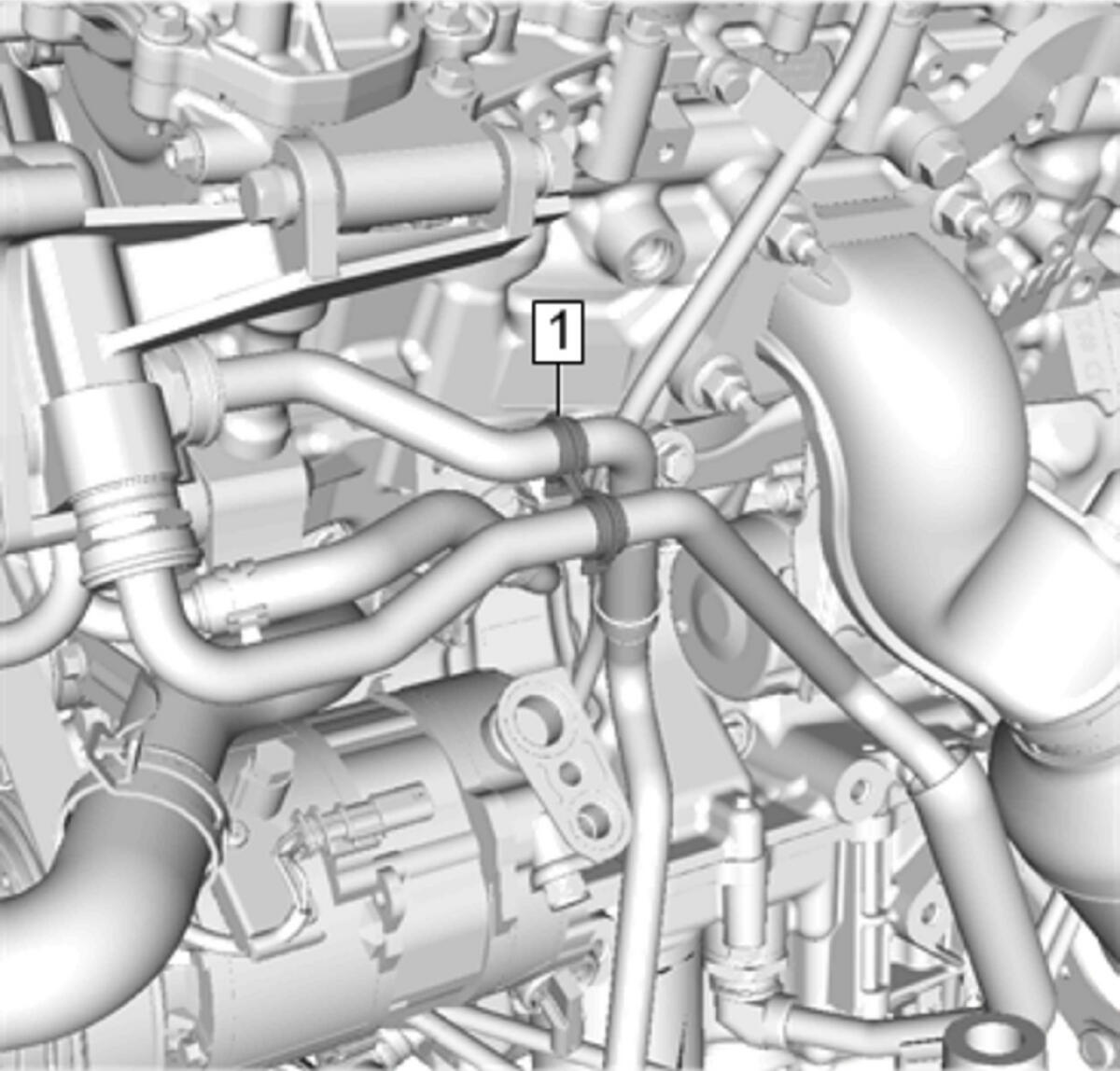

    5. Fig 3: Retaining Clip
    GM4427648Courtesy of GENERAL MOTORS COMPANY
  5. Install the retaining clip (1) to the engine oil cooler pipes.
  6. Install Air Cleaner Assembly. Air Cleaner Assembly Replacement (LGX)
  7. Install Air Cleaner Outlet Duct. Air Cleaner Outlet Duct Replacement (LGX)
  8. Install a NEW oil filter. Engine Oil and Oil Filter Replacement (LGX, RWD)Engine Oil and Oil Filter Replacement (LGX, AWD)
  9. Check and correct the engine oil level. Approximate Fluid Capacities (LGX) , and Adhesives, Fluids, Lubricants, and Sealers (LGX)
