Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

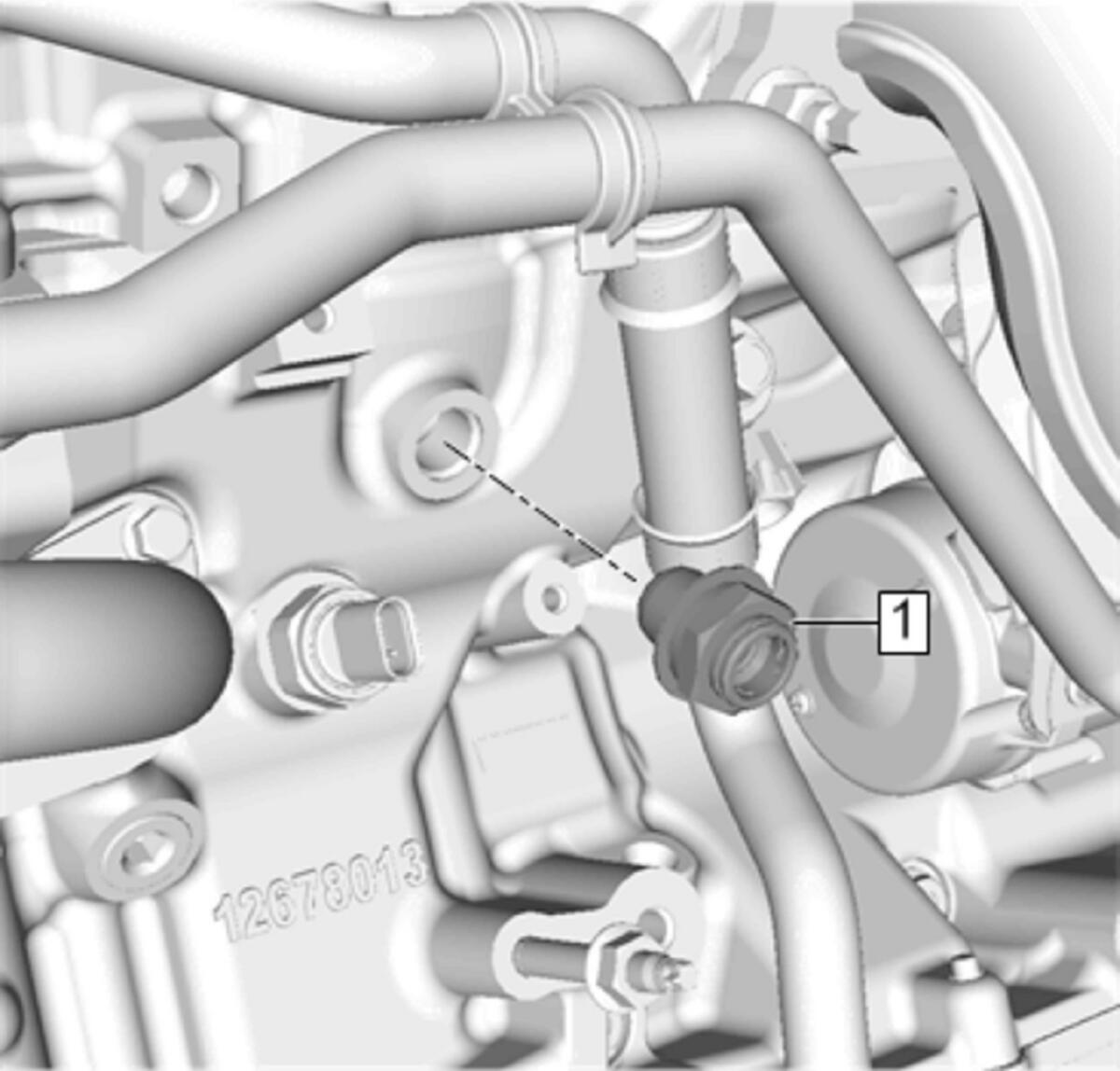

- Engine Oil Cooler Fitting (1) and tighten 34 N.m (25 lb ft)

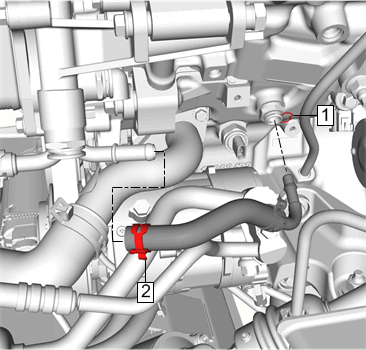

- Engine Oil Cooler Inlet Pipe (2)
- Install Engine Oil Cooler Inlet Pipe Retainer (1)
- Install Oil Level Indicator Tube - Oil Level Indicator Tube Replacement (LGX)
- Install Air Cleaner Assembly - Air Cleaner Assembly Replacement (LGX)
- Fill the cooling system. Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
CAUTION:
Refer to Component Fastener Tightening Caution .
NOTE:
Install a NEW engine oil cooler fitting.
