Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle (ATS-V)
    2. Fig 1: Front Bumper Fascia Air Deflector - Center
    GM2807035Courtesy of GENERAL MOTORS COMPANY
  2. Remove Front Air Deflector (5) - Front Air Deflector Replacement
  3. Drain the coolant. Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)

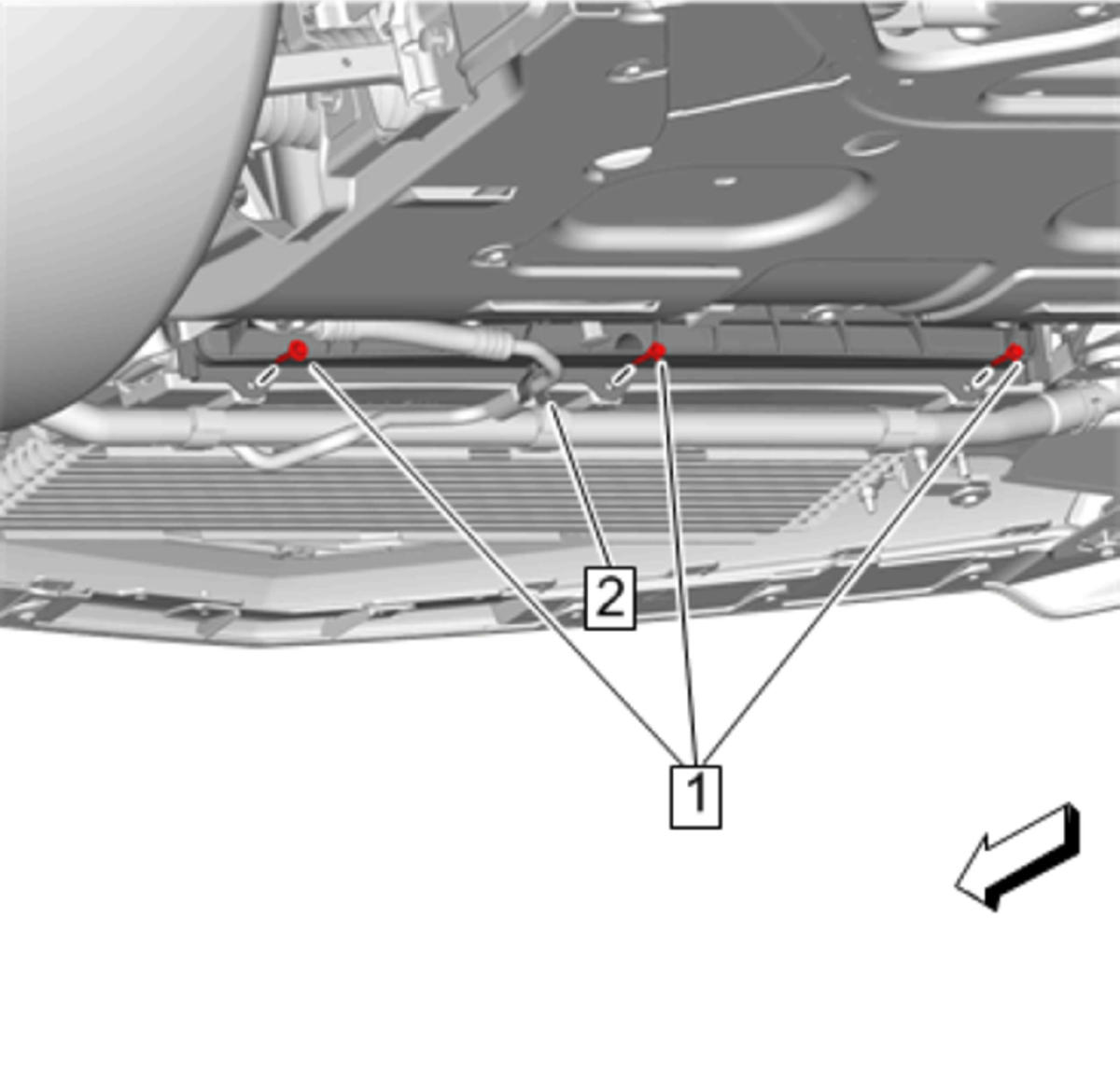

    4. Fig 2: Transmission Fluid Cooler Pipe And Engine Coolant Fan Shroud
    GM4252220Courtesy of GENERAL MOTORS COMPANY
  4. Remove Engine Coolant Fan Shroud Bolt (1)
  5. Unclip Transmission Fluid Cooler Pipe@Engine Coolant Fan Shroud (2)
  6. Remove the supports and lower the vehicle.
    7. Fig 3: Front Compartment Front Sight Shield
    GM4037340Courtesy of GENERAL MOTORS COMPANY
  7. Remove Front Compartment Front Sight Shield (4) - Front Compartment Front Sight Shield Replacement (ATS-V)
    8. Fig 4: Air Cleaner Outlet Front Duct (LF4)
    GM4011516Courtesy of GENERAL MOTORS COMPANY
  8. Remove Air Cleaner Outlet Front Duct (3) - Air Cleaner Outlet Front Duct Replacement (LF4)
    9. Fig 5: Air Cleaner Assembly (LF4)
    GM4023361Courtesy of GENERAL MOTORS COMPANY
  9. Remove Air Cleaner Assembly (1) - Air Cleaner Assembly Replacement (LF4)

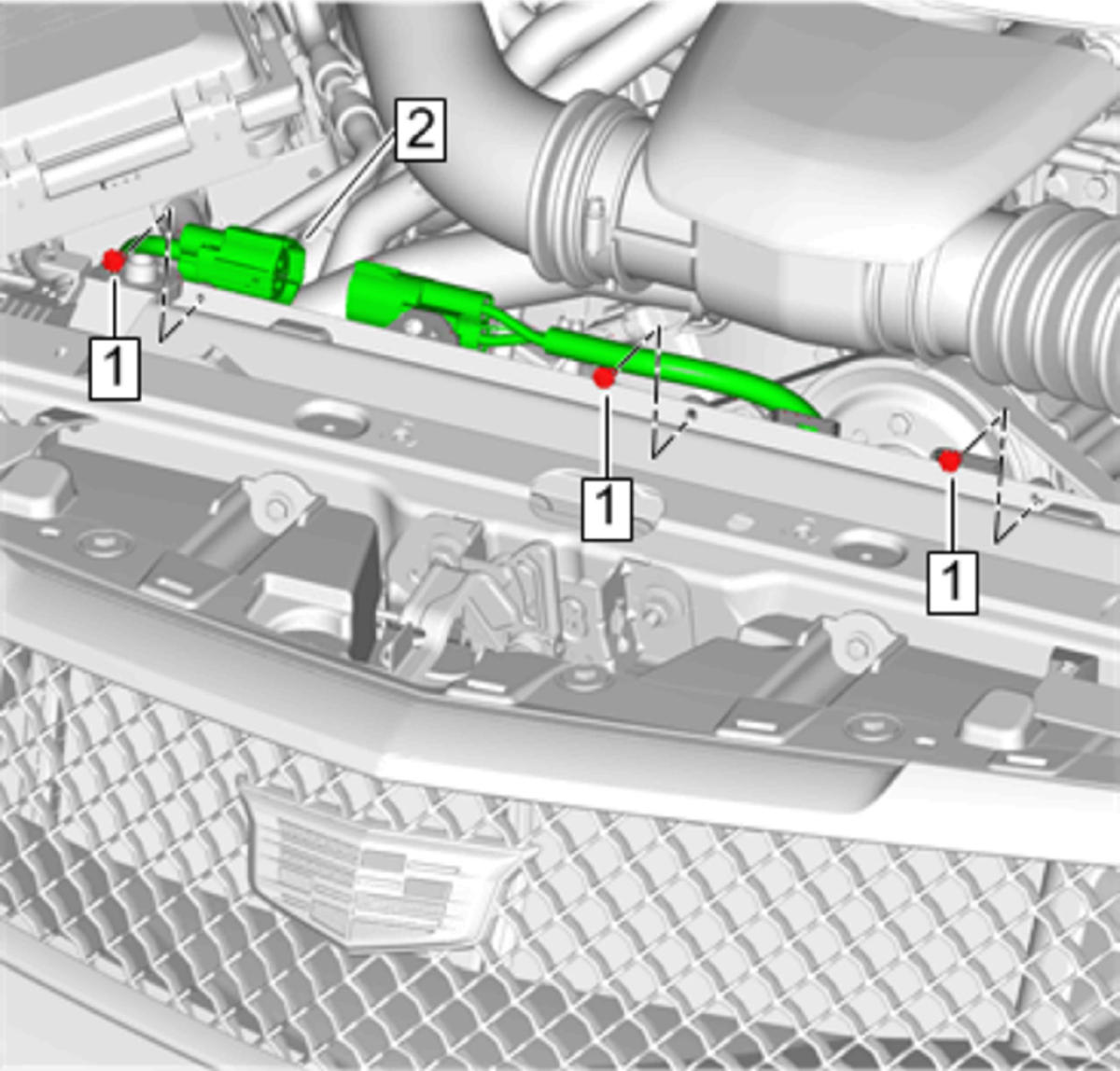

    10. Fig 6: Radiator Assembly Push Pin
    GM4252221Courtesy of GENERAL MOTORS COMPANY
  10. Disconnect the electrical connector. (2)
  11. Remove Push Pin (1) @Engine Coolant Fan Shroud

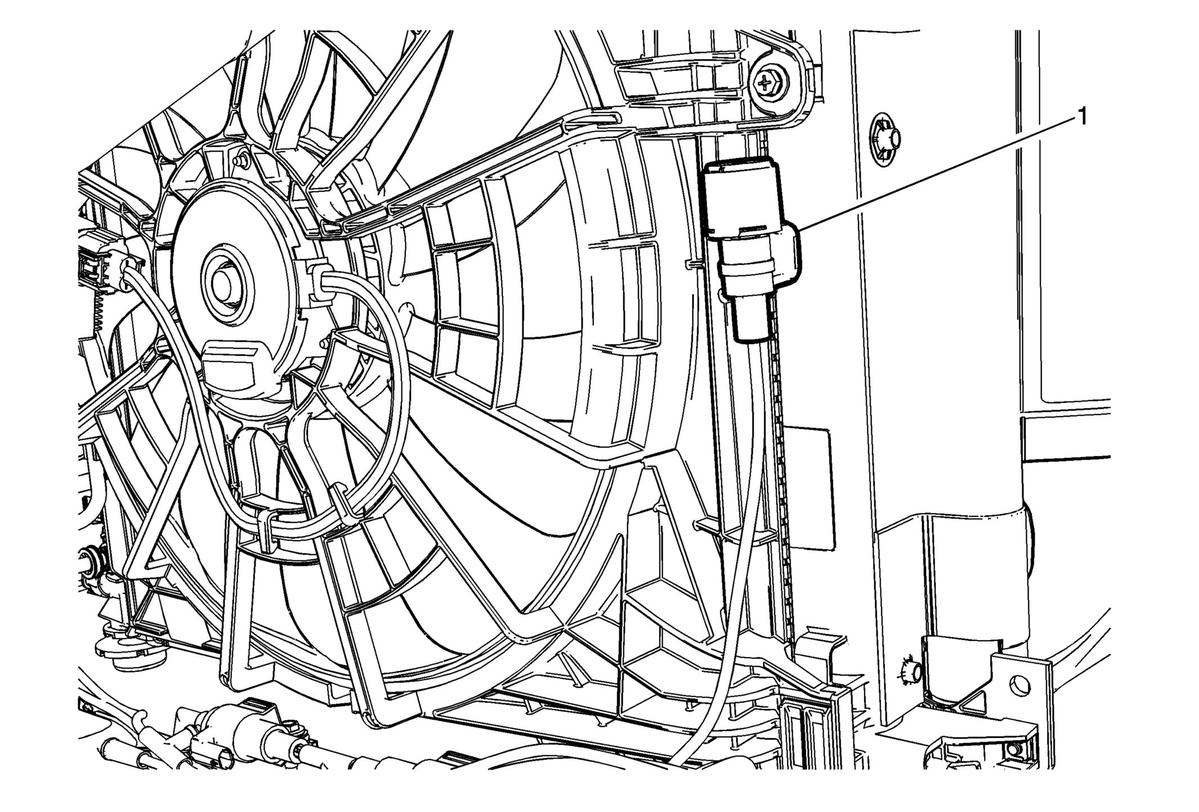

    12. Fig 7: Engine Mount Vacuum Filter
    GM2866474Courtesy of GENERAL MOTORS COMPANY
  12. Unclip Engine Mount Vacuum Filter (1) @Engine Coolant Fan Shroud - Engine Mount Vacuum Filter Replacement

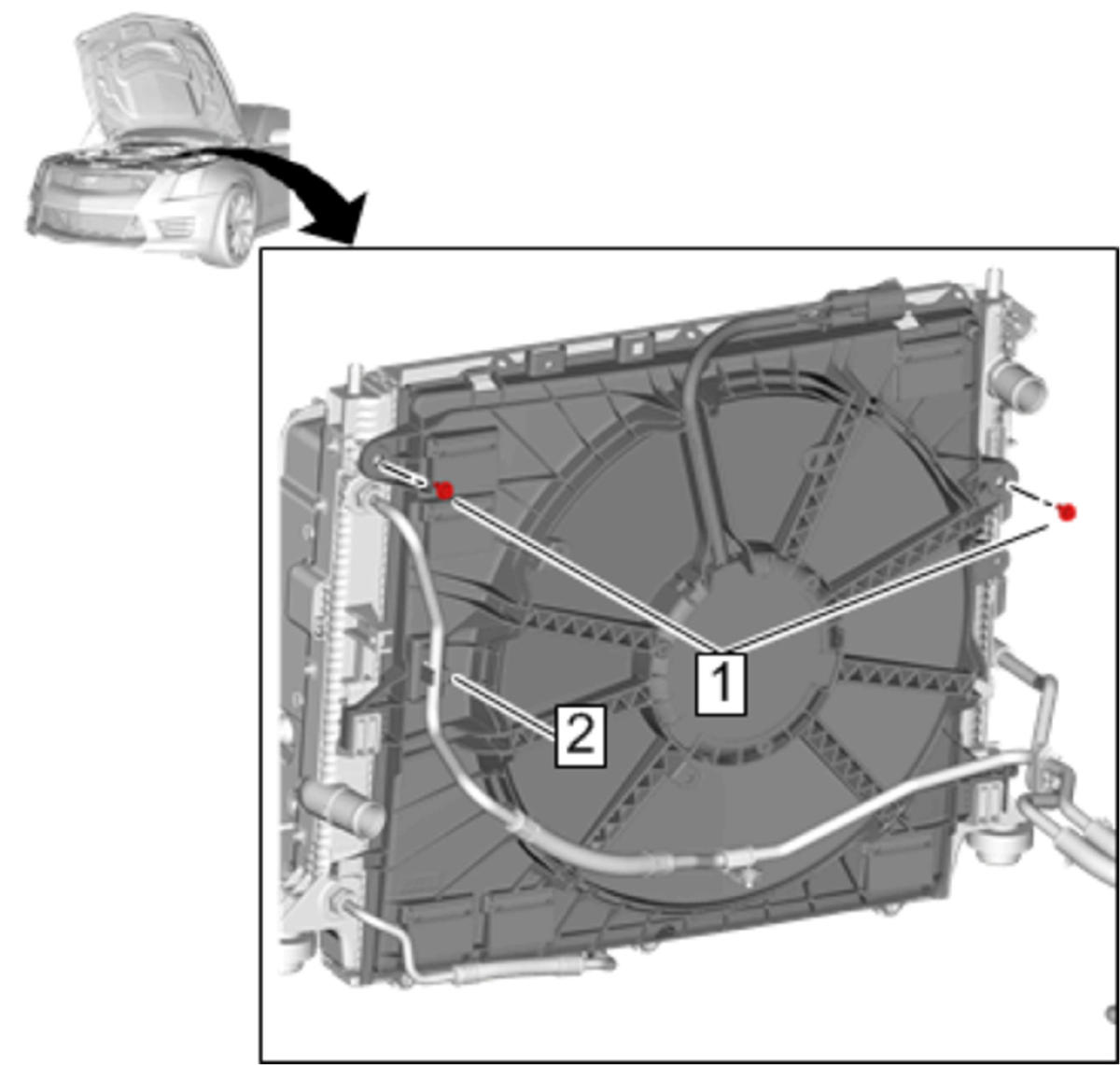

    13. Fig 8: Transmission Fluid Cooler Pipe
    GM4252222Courtesy of GENERAL MOTORS COMPANY
  13. Remove Engine Coolant Fan Shroud Bolt (1)
  14. Unclip Transmission Fluid Cooler Pipe (2) @Engine Coolant Fan Shroud

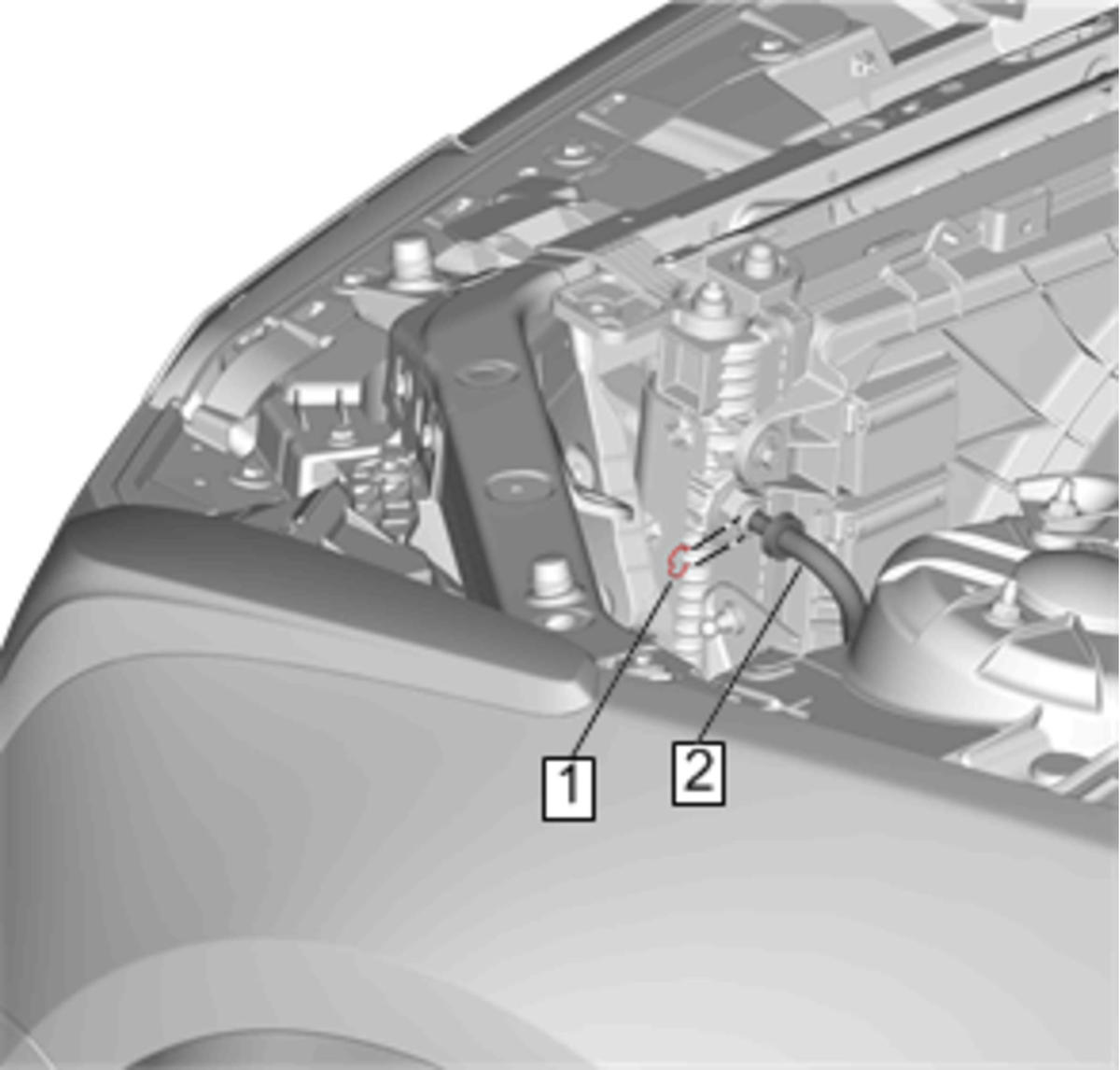

    15. Fig 9: Transmission Fluid Cooler Inlet And Outlet Pipe Retaining Clip At Radiator
    GM4062431Courtesy of GENERAL MOTORS COMPANY
  15. Remove Transmission Fluid Cooler Pipe (2) @Radiator Assembly - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 With MG9)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 With M5U)
    16. Fig 10: Radiator Outlet Hose And Clamp
    GM4044993Courtesy of GENERAL MOTORS COMPANY
  16. Remove Radiator Outlet Hose (2) @Radiator Assembly - Radiator Outlet Hose Replacement (LF4)

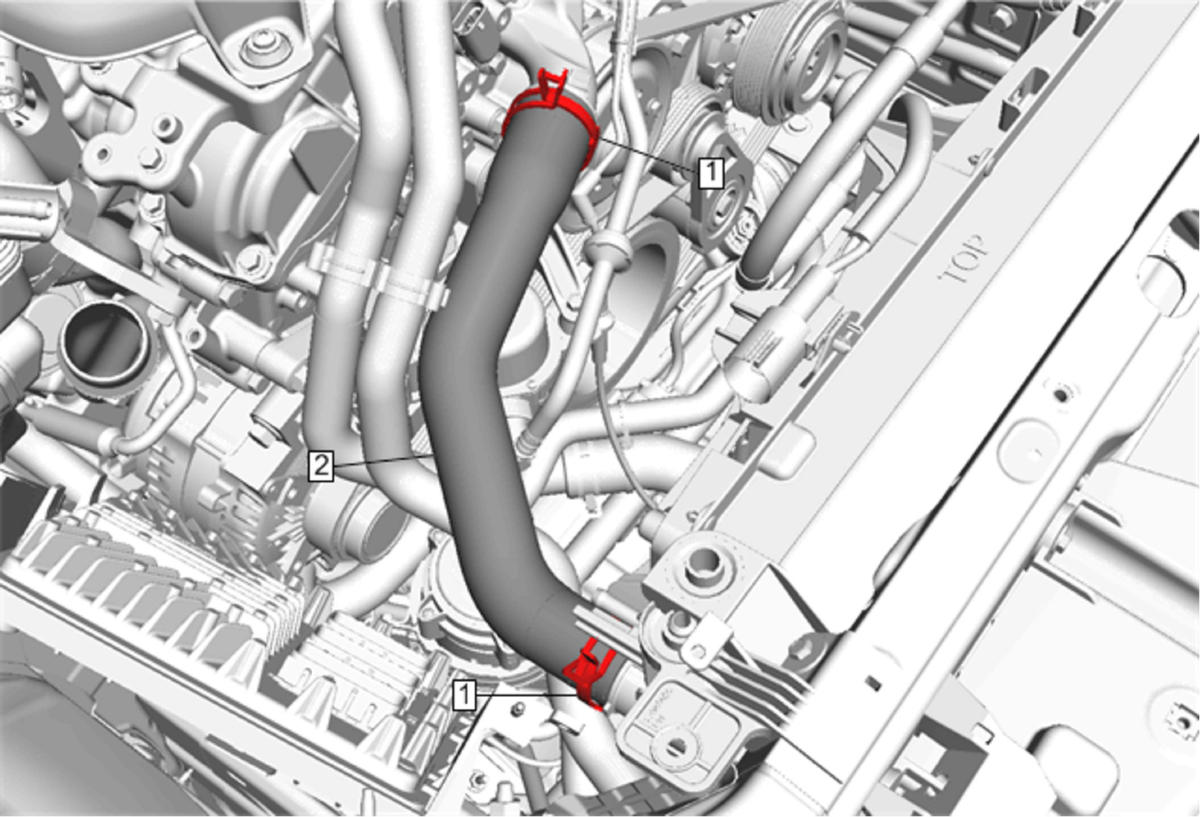

    17. Fig 11: Radiator Inlet Hose (LF4)
    GM4044871Courtesy of GENERAL MOTORS COMPANY
  17. Remove Radiator Inlet Hose (2) @Radiator Assembly - Radiator Inlet Hose Replacement (LF4)

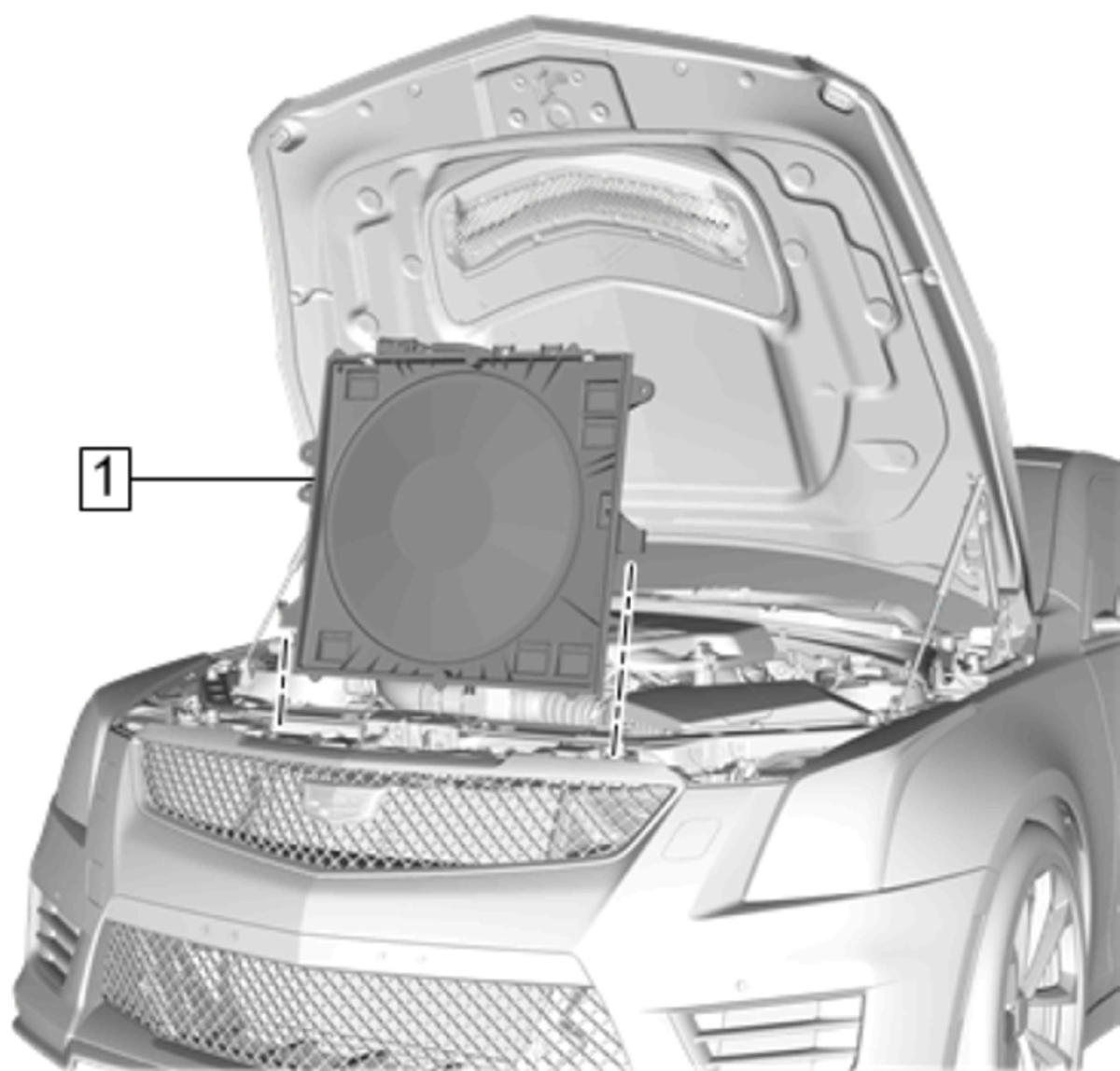

    18. Fig 12: Engine Coolant Fan Shroud At Radiator
    GM4252223Courtesy of GENERAL MOTORS COMPANY
  18. Remove Engine Coolant Fan Shroud (1) @Radiator Assembly
