Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Install Charge Air Cooler Bracket (2)

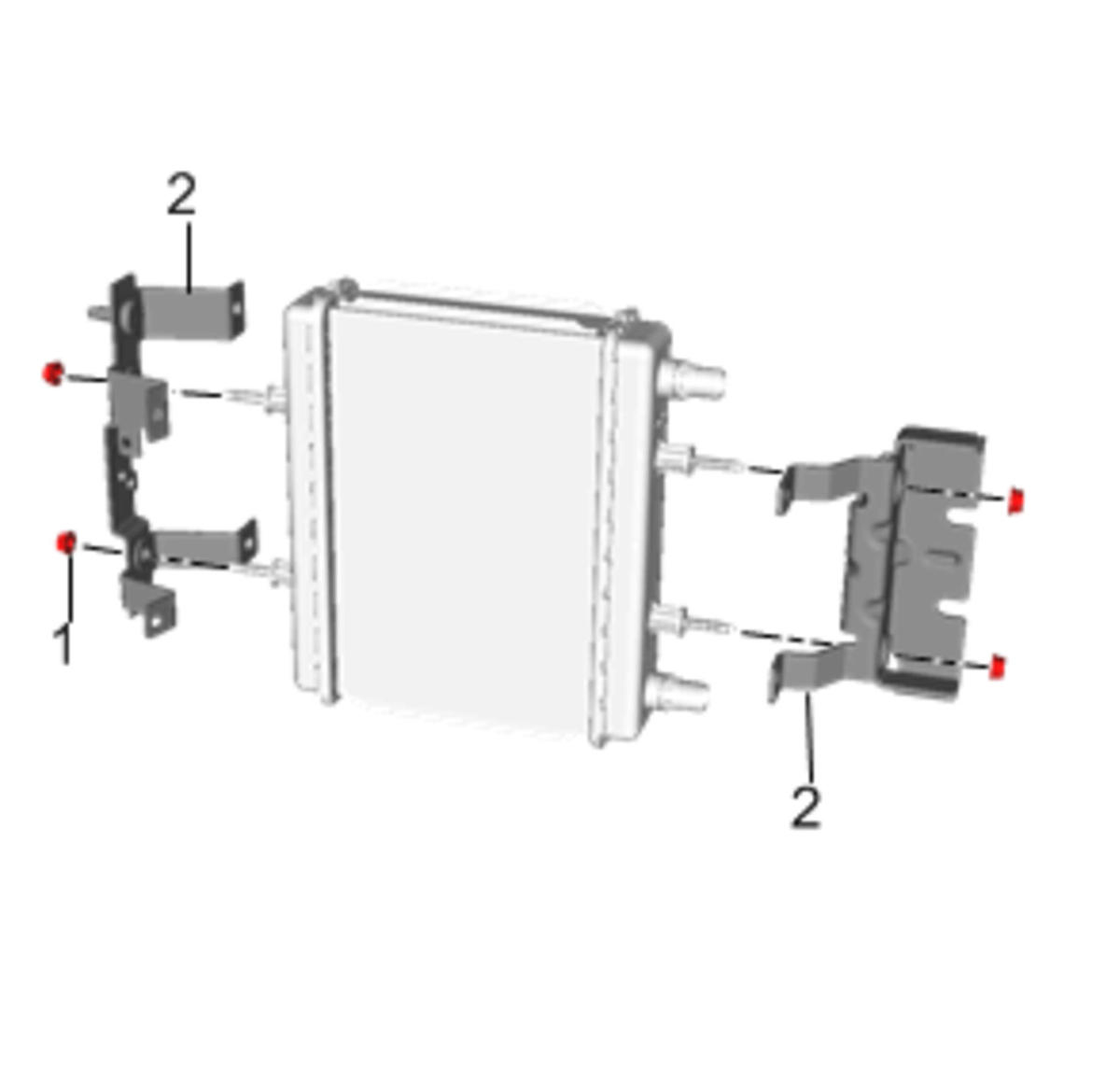

Fig 1: Charge Air Cooler Bracket

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Charge Air Cooler Bracket Fastener (1) Tighten 9 N.m (80 lb in)

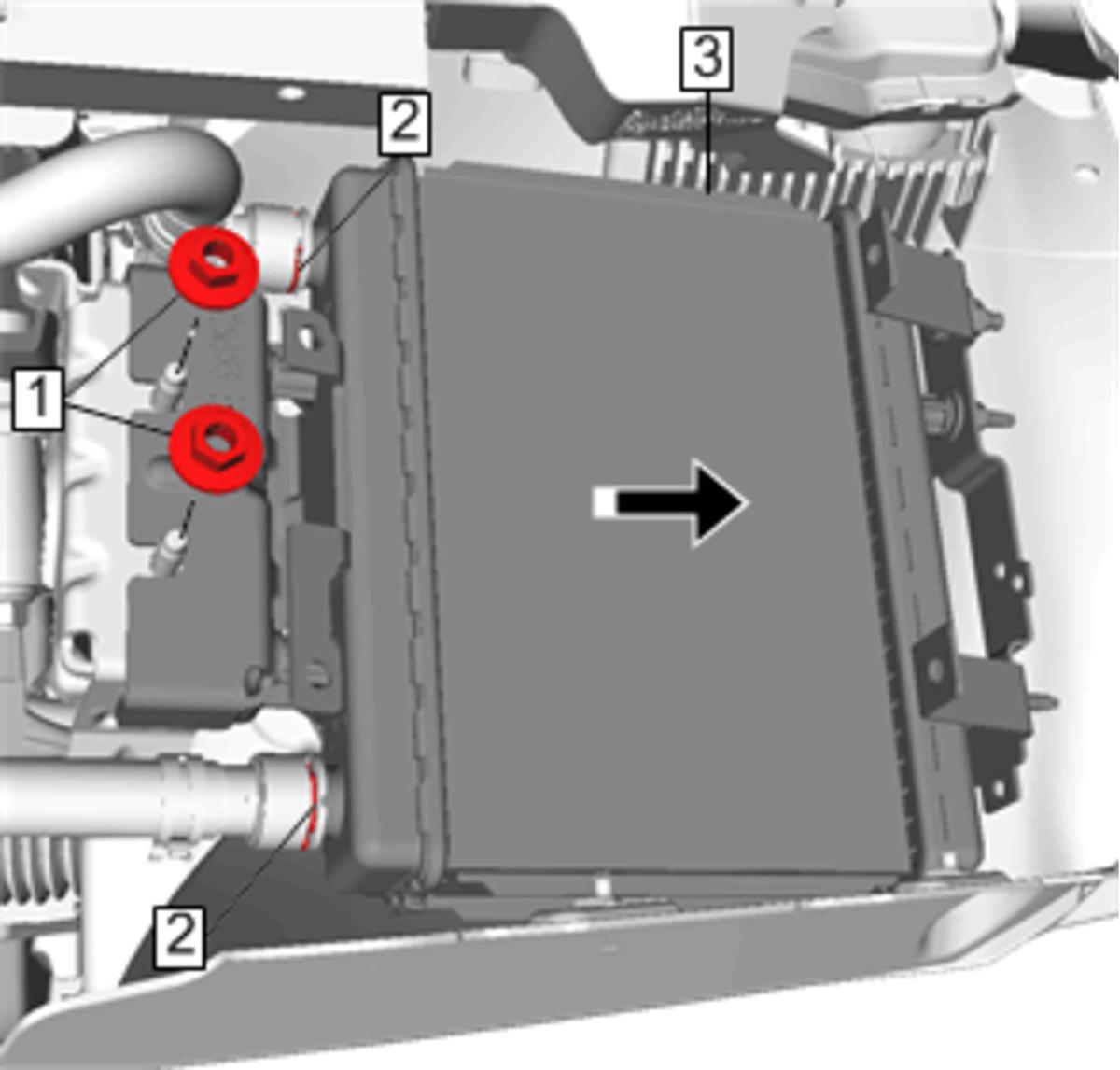

Fig 2: Charge Air Coolere

Courtesy of GENERAL MOTORS COMPANY

Install Charge Air Cooler (1)
Install Charge Air Cooler Nut (3) Tighten 22 N.m (16 lb ft)
Install Charge Air Cooler Coolant Hose Retainer (1)
Install Charge Air Cooler Bracket. Charge Air Cooler Bracket Replacement - To Fender (LF4)
Install Radiator Air Baffle. Radiator Air Baffle Replacement - Left (LF4)
Fill the charge air cooling system. Charge Air Cooling System Draining and Filling (LF4)
