Charge Air Cooler Coolant Hose Replacement - Radiator to Pipe (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

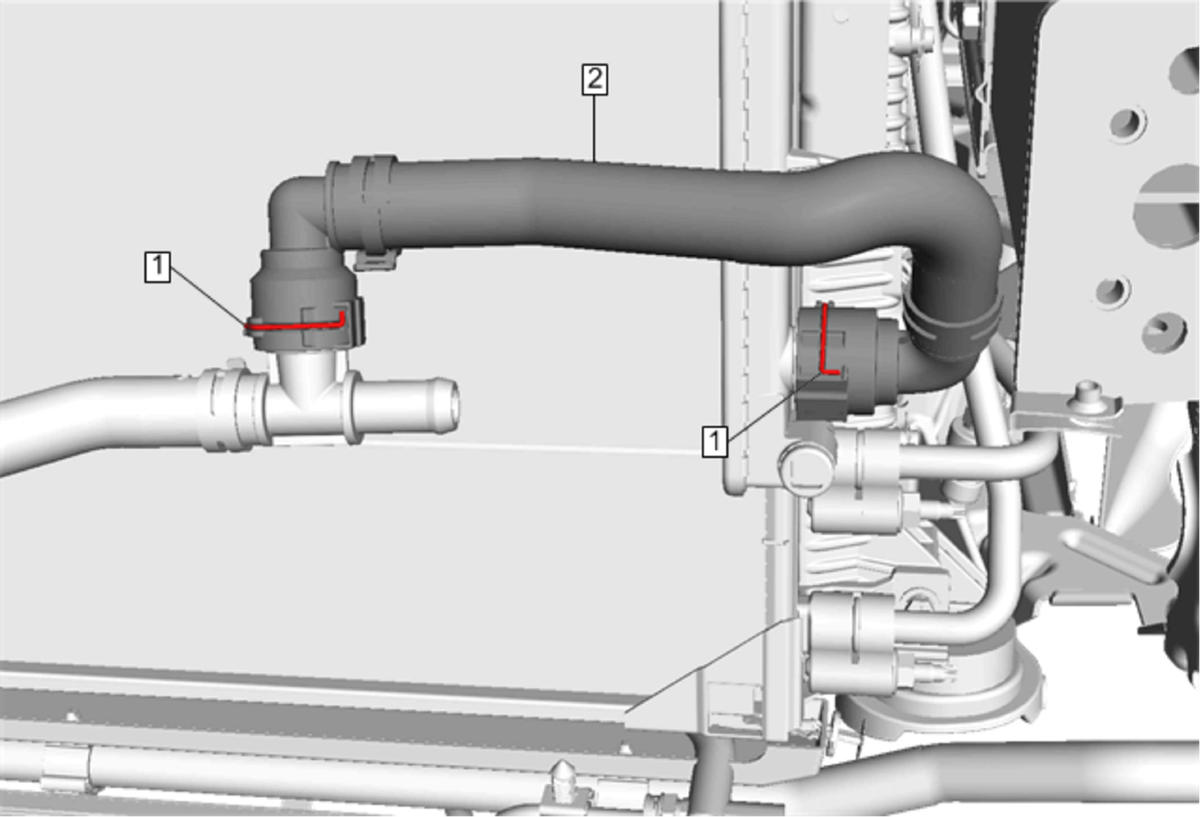

Fig 1: Charge Air Cooler Coolant Hose - Radiator to Pipe (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Radiator Air Baffle Replacement - Left (LF4) Charge Air Cooling System Draining and Filling (LF4)
1	Charge Air Cooler Coolant Hose Quick Connector Retaining Spring (Qty: 2)
2	Charge Air Cooler Coolant Hose Procedure Fill the charge air cooling system. Charge Air Cooling System Draining and Filling (LF4) . Check the charge air cooling system for leaks.

Callout

Component Name

Preliminary Procedures

Radiator Air Baffle Replacement - Left (LF4)
Charge Air Cooling System Draining and Filling (LF4)

Charge Air Cooler Coolant Hose Quick Connector Retaining Spring (Qty: 2)

Charge Air Cooler Coolant Hose

Procedure

Fill the charge air cooling system. Charge Air Cooling System Draining and Filling (LF4) .
Check the charge air cooling system for leaks.
