Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install Charge Air Cooler Coolant Hose

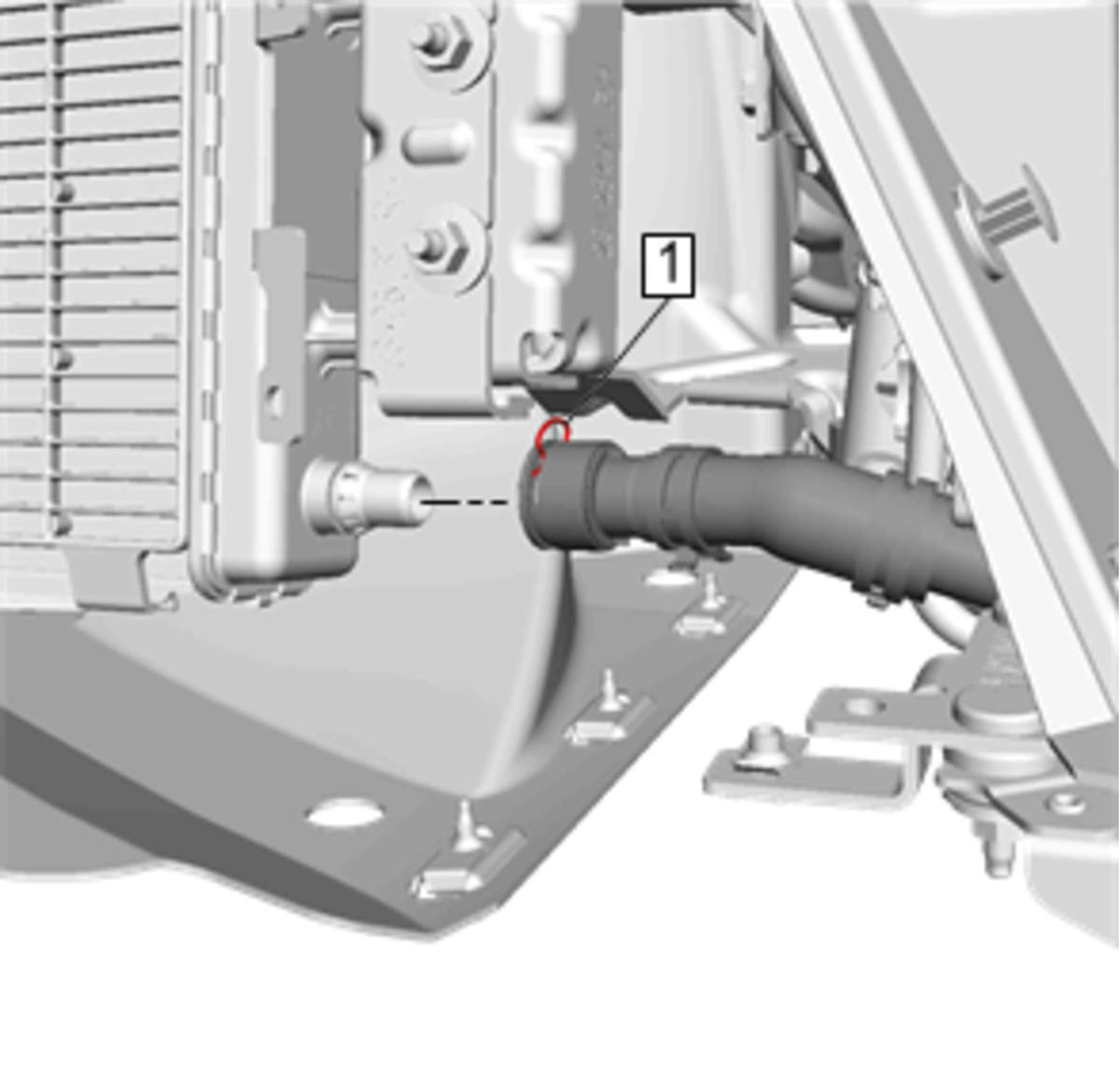

    2. Fig 1: Charge Air Cooler Coolant Hose
    GM4044530Courtesy of GENERAL MOTORS COMPANY
  2. Engage Charge Air Cooler Coolant Hose Quick Connector Retaining Spring (1)

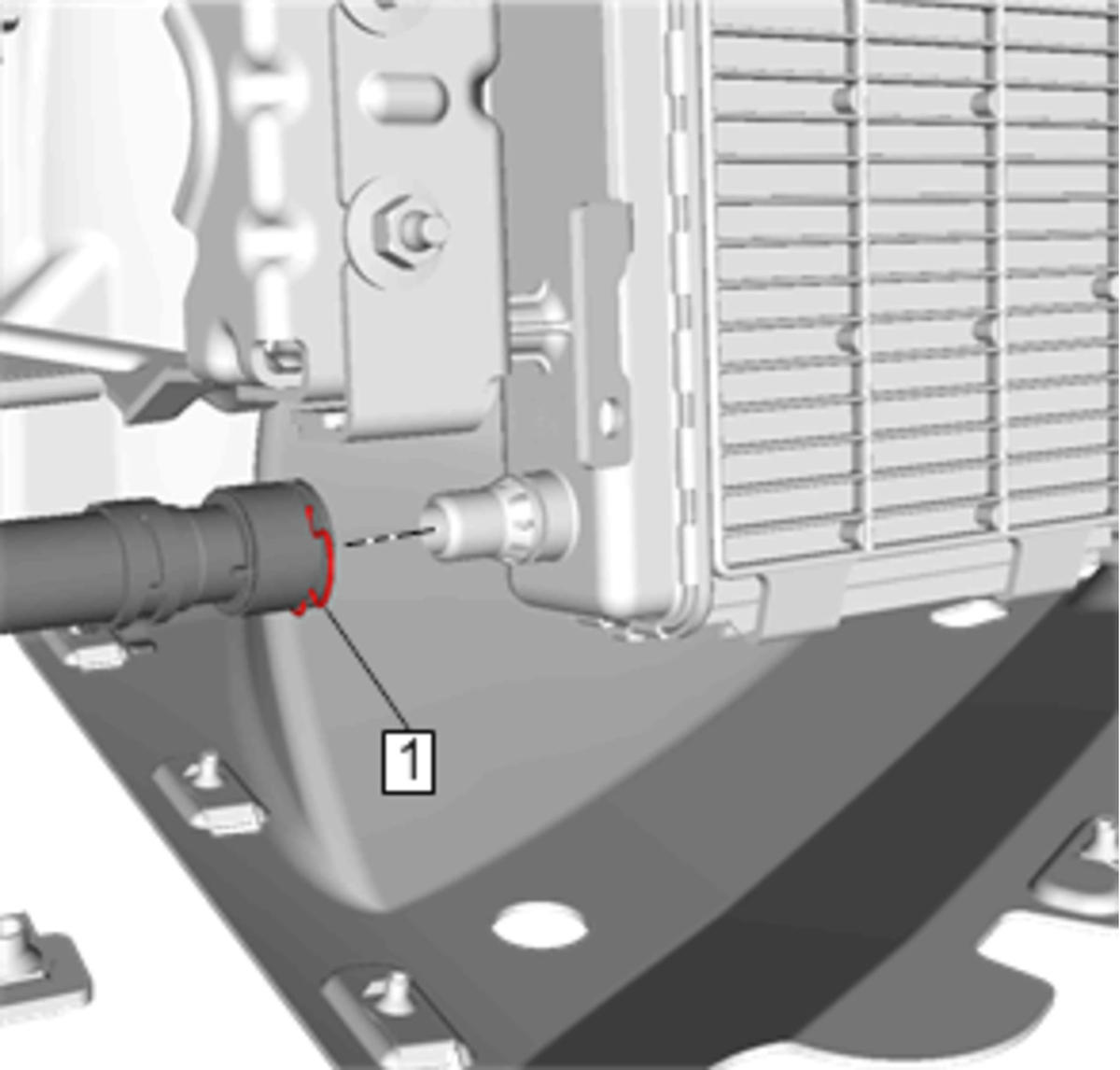

    3. Fig 2: Charge Air Cooler Coolant Hose Quick Connector Retaining Spring
    GM4044529Courtesy of GENERAL MOTORS COMPANY
  3. Engage Charge Air Cooler Coolant Hose Quick Connector Retaining Spring (1)

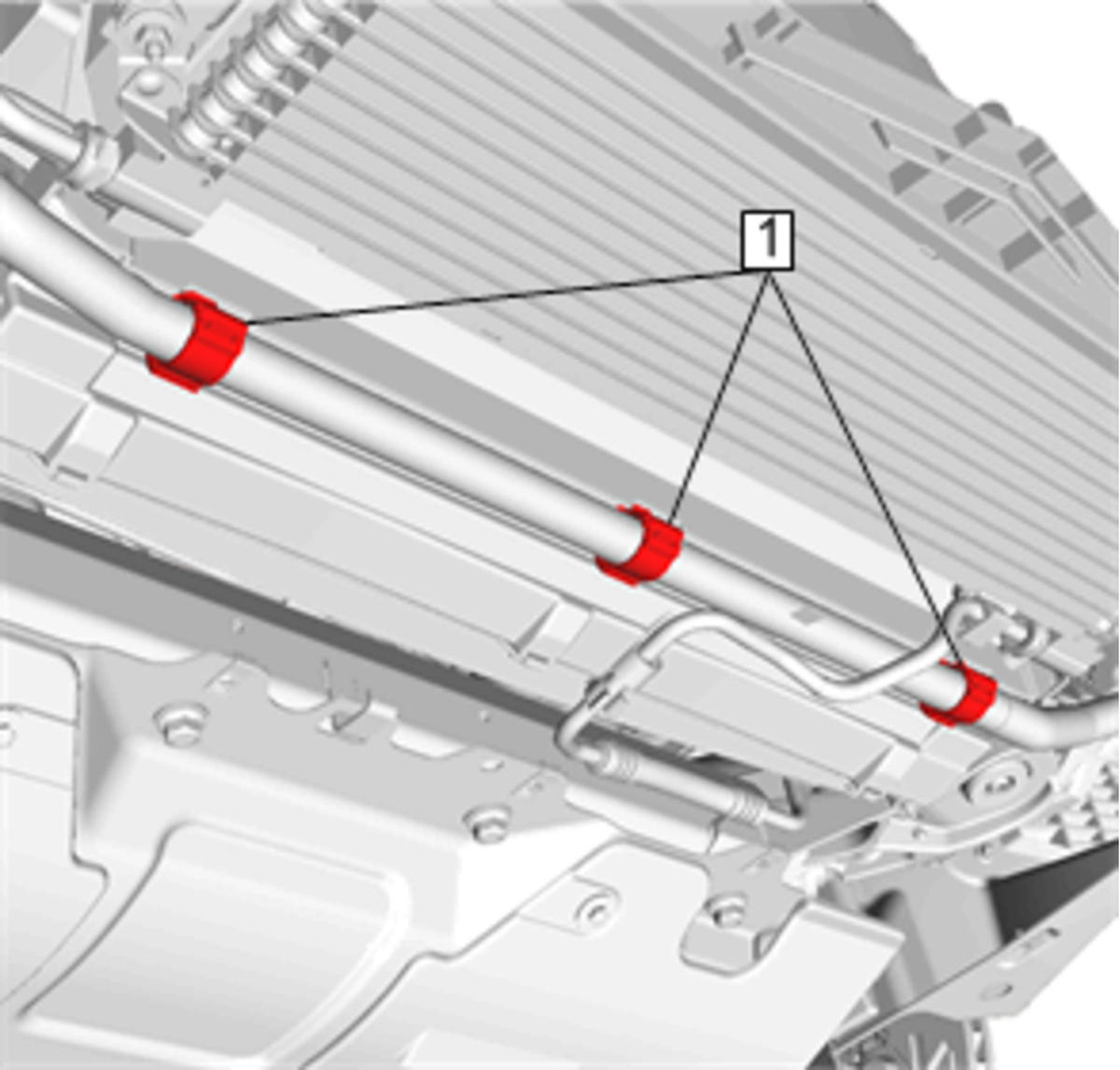

    4. Fig 3: Charge Air Cooler Coolant Hose Retainer
    GM4044533Courtesy of GENERAL MOTORS COMPANY
  4. Install Charge Air Cooler Coolant Hose Retainer (1)
  5. Connect Charge Air Cooler Coolant Hose (2)

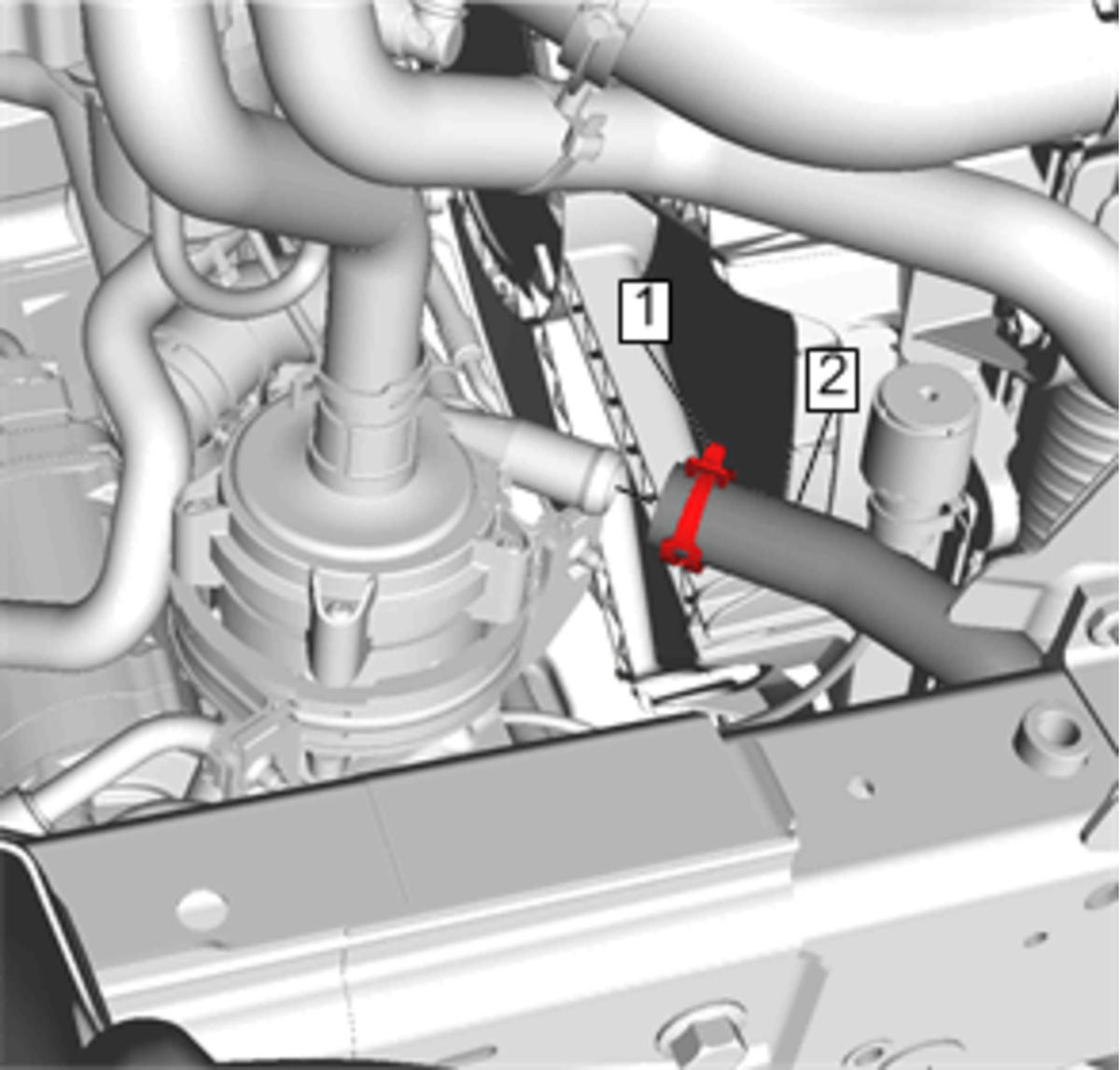

    6. Fig 4: Charge Air Cooler Coolant Hose Clamp
    GM4044534Courtesy of GENERAL MOTORS COMPANY
  6. Install Charge Air Cooler Coolant Hose Clamp (1)
  7. Install Radiator Air Baffle.Radiator Air Baffle Replacement - Left (LF4)
  8. Install Radiator Air Baffle.Radiator Air Baffle Replacement - Right (LF4)
  9. Fill the charge air cooling system. Charge Air Cooling System Draining and Filling (LF4)
