Section 171 (Instrument Panel System Displays And Gauges)
>>
Schematic Wiring Diagrams
>>
Instrument Cluster Wiring Schematics
>>
Gauges and Oil Pressure (LCV/LGX/LTG)
Gauges and Oil Pressure (LCV/LGX/LTG)
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

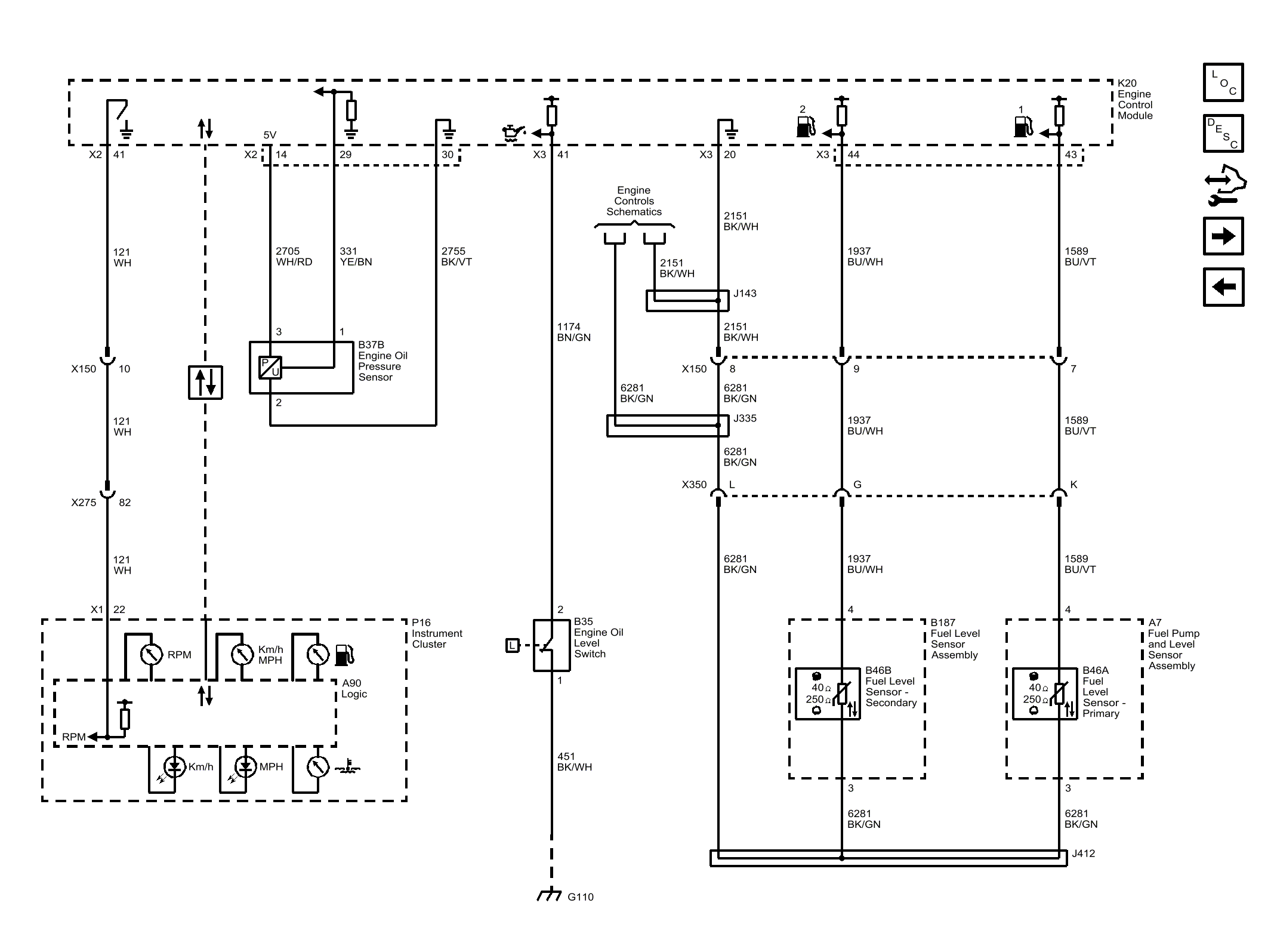

Fig 1: Gauges and Oil Pressure (LCV/LGX/LTG)
Courtesy of GENERAL MOTORS COMPANY
Fig 1: Gauges and Oil Pressure (LCV/LGX/LTG)
Courtesy of GENERAL MOTORS COMPANY
