Head-Up Display (UV6)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

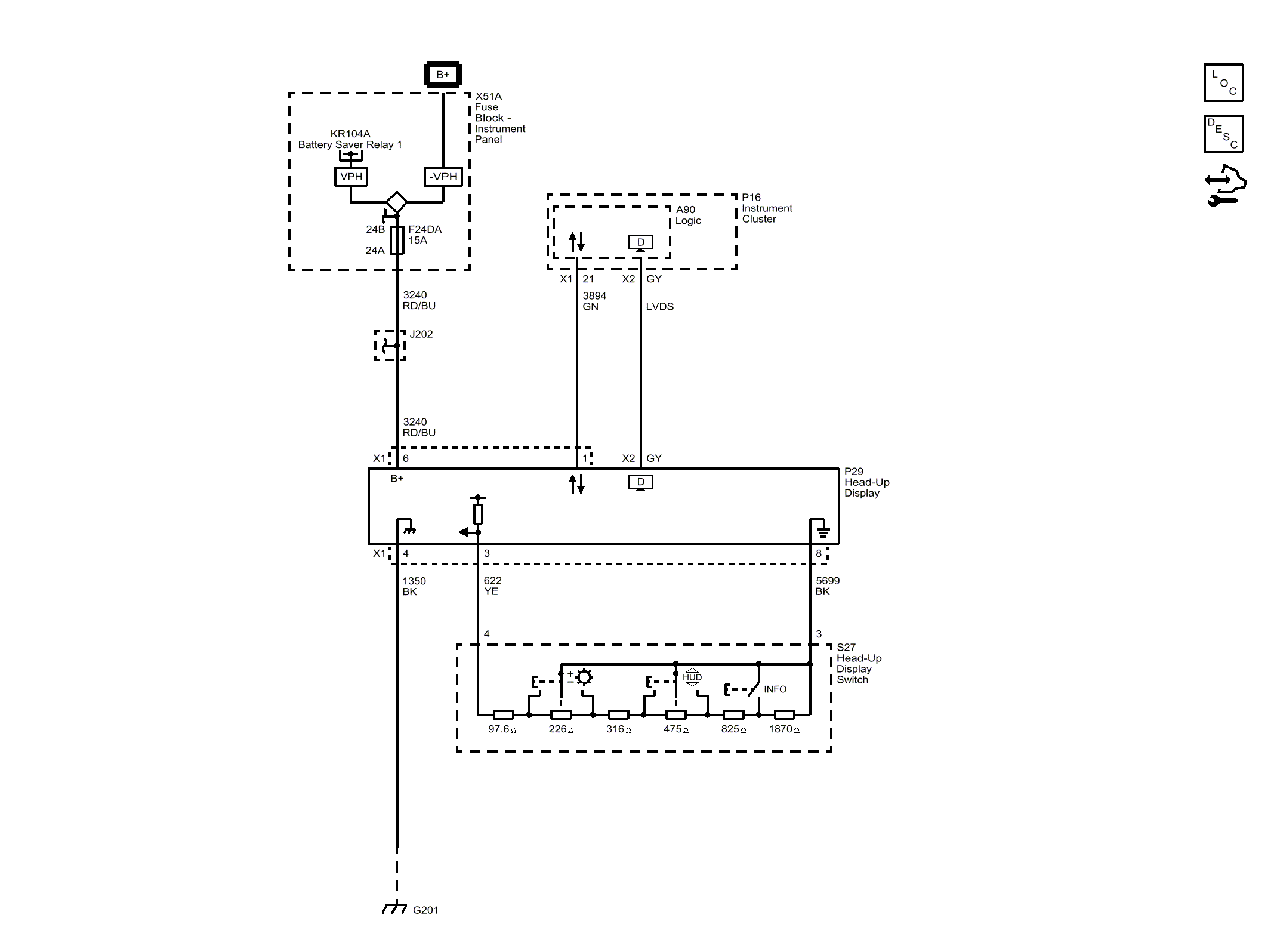

Fig 1: Head-Up Display (UV6)
GM4491355Courtesy of GENERAL MOTORS COMPANY
