Water Outlet Removal (LGX)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

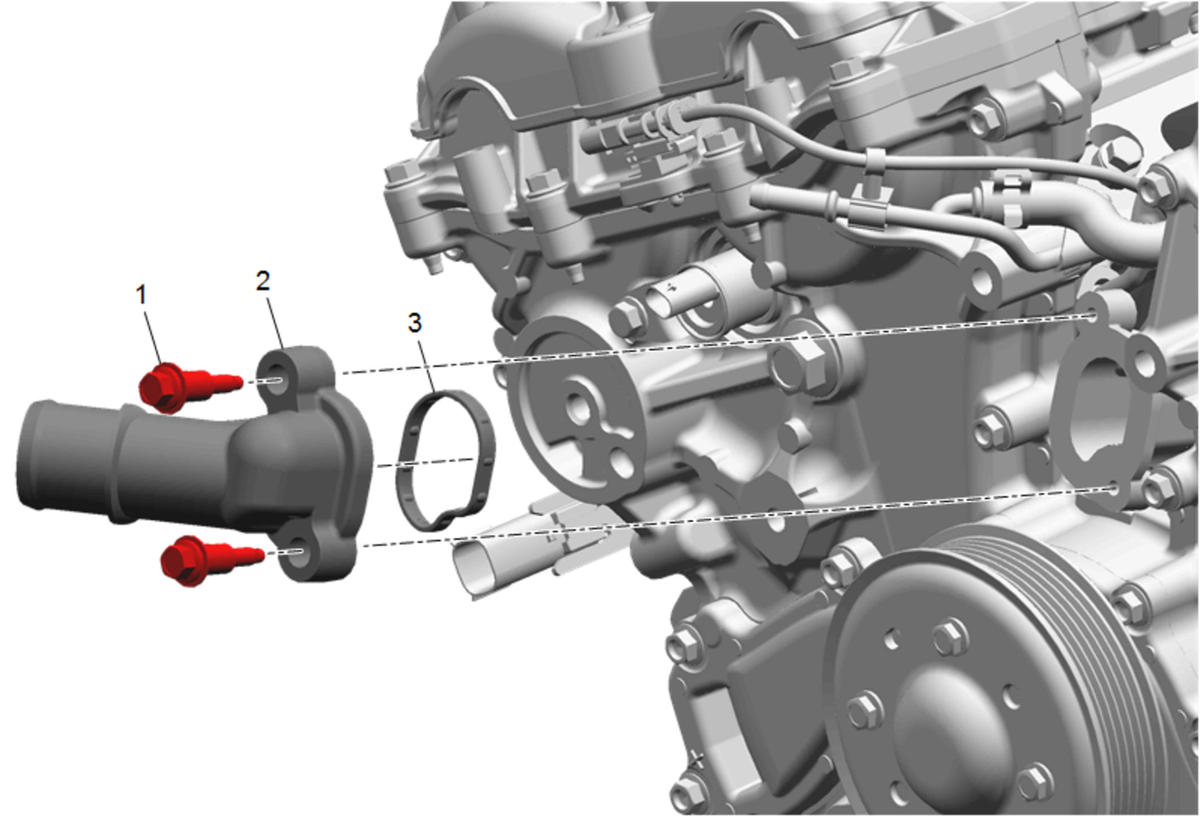

| Callout |
Component Name |
| 1 |
Water Outlet Bolt (Qty: 2) |
| 2 |
Water Outlet |
| 3 |
Water Outlet Seal
NOTE:
Discard seal, it is not reusable.
|
| 4 |
Engine Coolant Air Bleed Pipe Bolt (Qty: 2) |
| 5 |
Engine Coolant Air Bleed Pipe |
