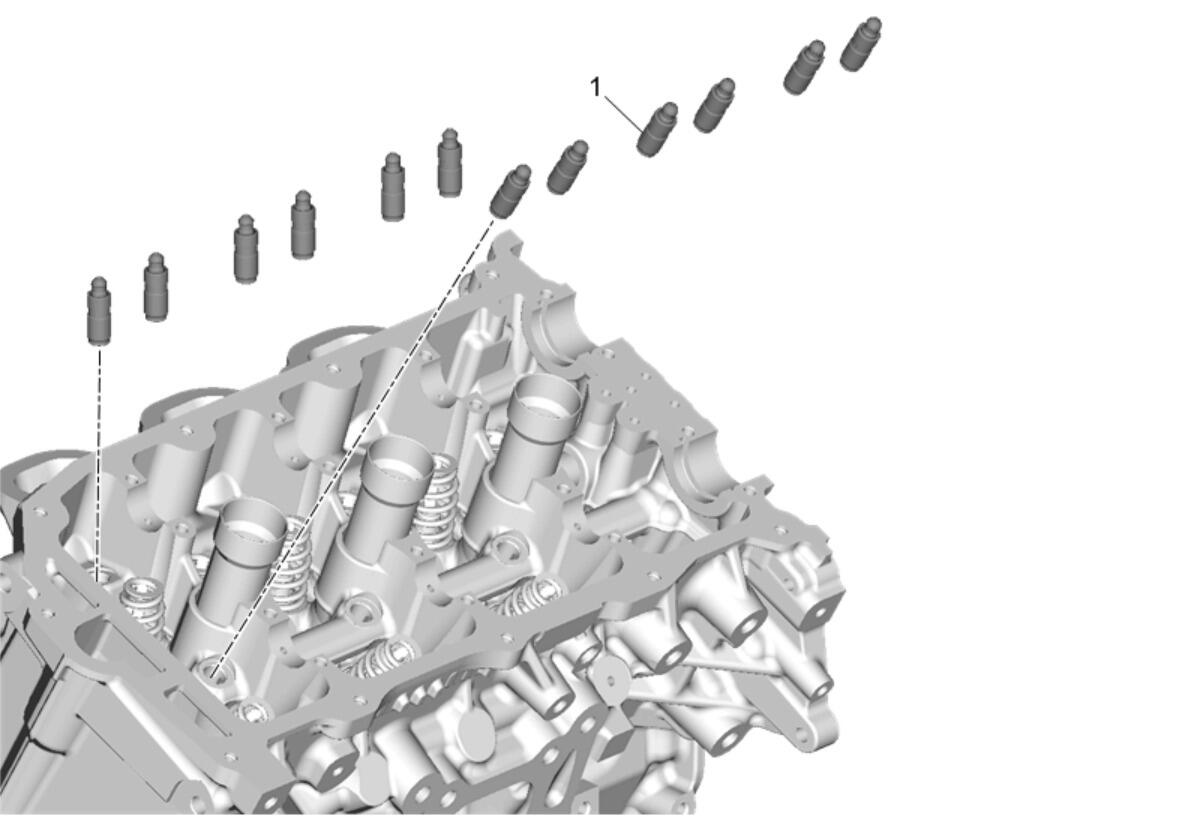

Valve Lifter Removal - Right Side (LF4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Hydraulic Valve Lash Adjuster
NOTE:
- Do not stroke/cycle the stationary hydraulic lash adjuster plunger without oil in the lower pressure chamber.
- Do not allow the stationary hydraulic lash adjuster to tip over, plunger down, after the oil fill.
- If the lifters are to be reused, keep in order so they can be reinstalled in the same position.
|
