Turbocharger Wastegate Actuator Vacuum Tank Assembly Removal
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

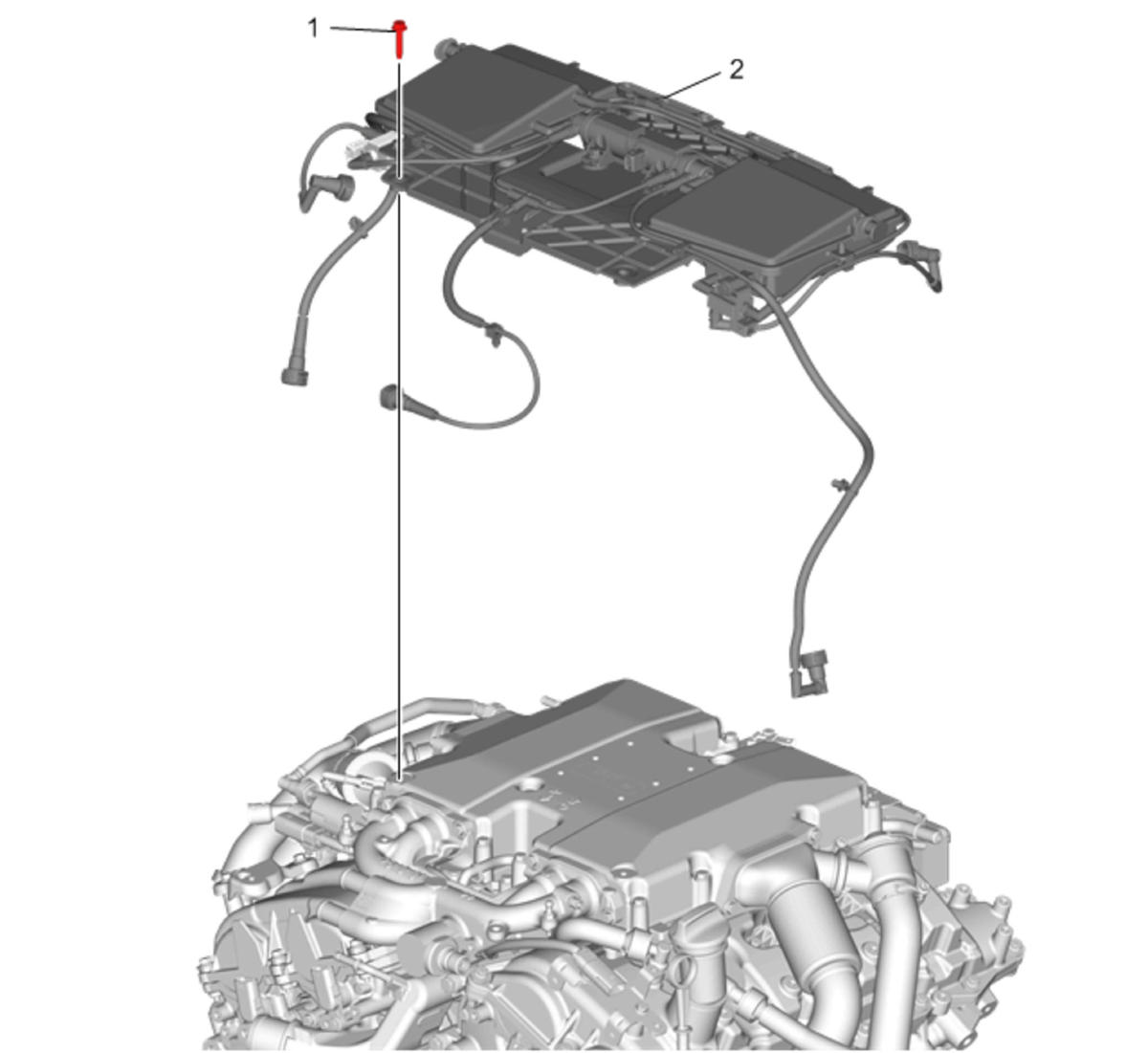

Courtesy of GENERAL MOTORS COMPANY Turbocharger Wastegate Actuator Vacuum Tank Assembly Removal
| Callout |
Component Name |
| 1 |
Turbocharger Wastegate Actuator Vacuum Tank Bracket Bolt |
| 2 |
Turbocharger Wastegate Actuator Vacuum Tank Assembly |
