Turbocharger Wastegate Actuator Vacuum Tubes Assemble

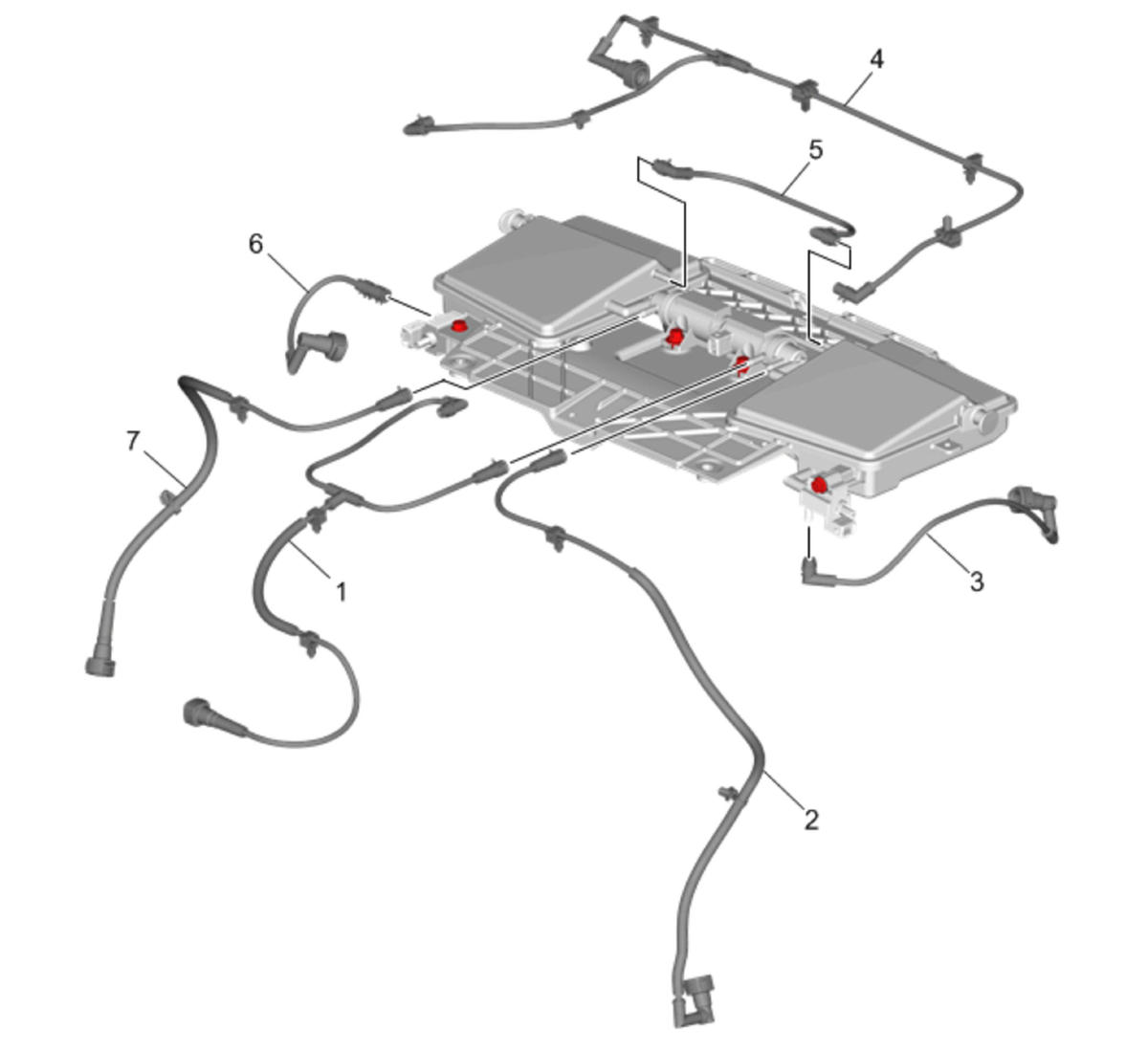

| Callout | Component Name |
|---|---|
| 1 | Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube
CAUTION:
When installing vacuum lines to the solenoid valve, only use water or a dry insertion method to ease installation. Other types of lubrication should not be used. Lubricants other than water should not be used. Failure to use the proper method may cause damage to the solenoid valve. |
| 2 | Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube |
| 3 | Charge Air Bypass Valve Vacuum Tank Tube |
| 4 | Charge Air Bypass Valve Vacuum Tank Tube |
| 5 | Turbocharger Wastegate Actuator Vacuum Source Tube |
| 6 | Charge Air Bypass Valve Vacuum Tank Tube |
| 7 | Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube |
