Turbocharger Air Inlet Adapter Installation

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

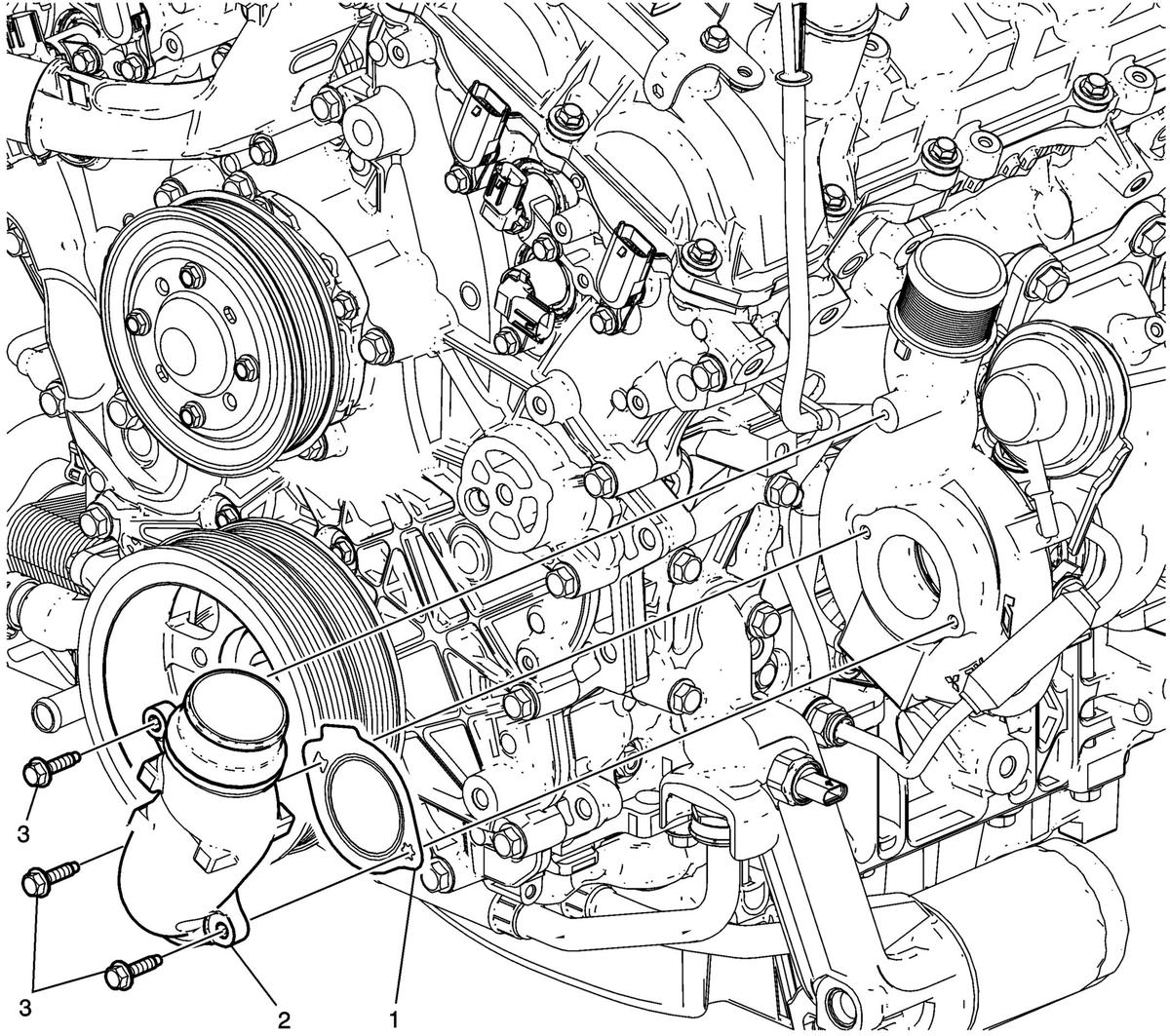

Fig 1: Turbocharger Air Inlet Adapter
GM3239450Courtesy of GENERAL MOTORS COMPANY
Turbocharger Air Inlet Adapter Installation

Callout Component Name
1 Turbocharger Air Inlet Adapter Seal
NOTE:

Install a NEW seal. It is not reusable.
2 Turbocharger Air Inlet Adapter
3 Turbocharger Air Inlet Adapter Bolts
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
