Oil Pan Removal (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

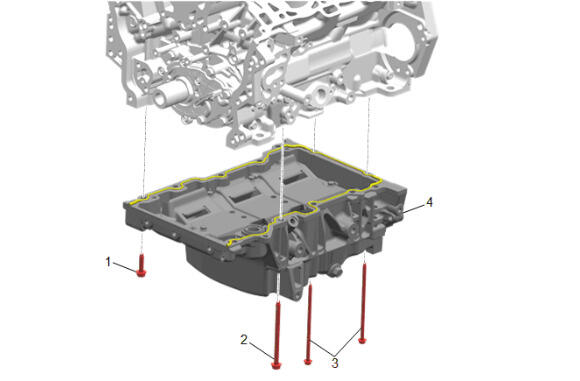

Fig 1: Oil Pan (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Oil Pan Bolts - Short
2	Oil Pan Bolts - Medium
3	Oil Pan Bolts - Long
4	Oil Pan
