Section 168 (Engine Mechanical - 3.6L (LGX LF4) - Repair Instructions - Off Vehicle)
>>
Repair Instructions - Off Vehicle
>>
Oil Pan Disassemble (LF4)
>>
Oil Pump Suction Pipe Removal
Oil Pump Suction Pipe Removal
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

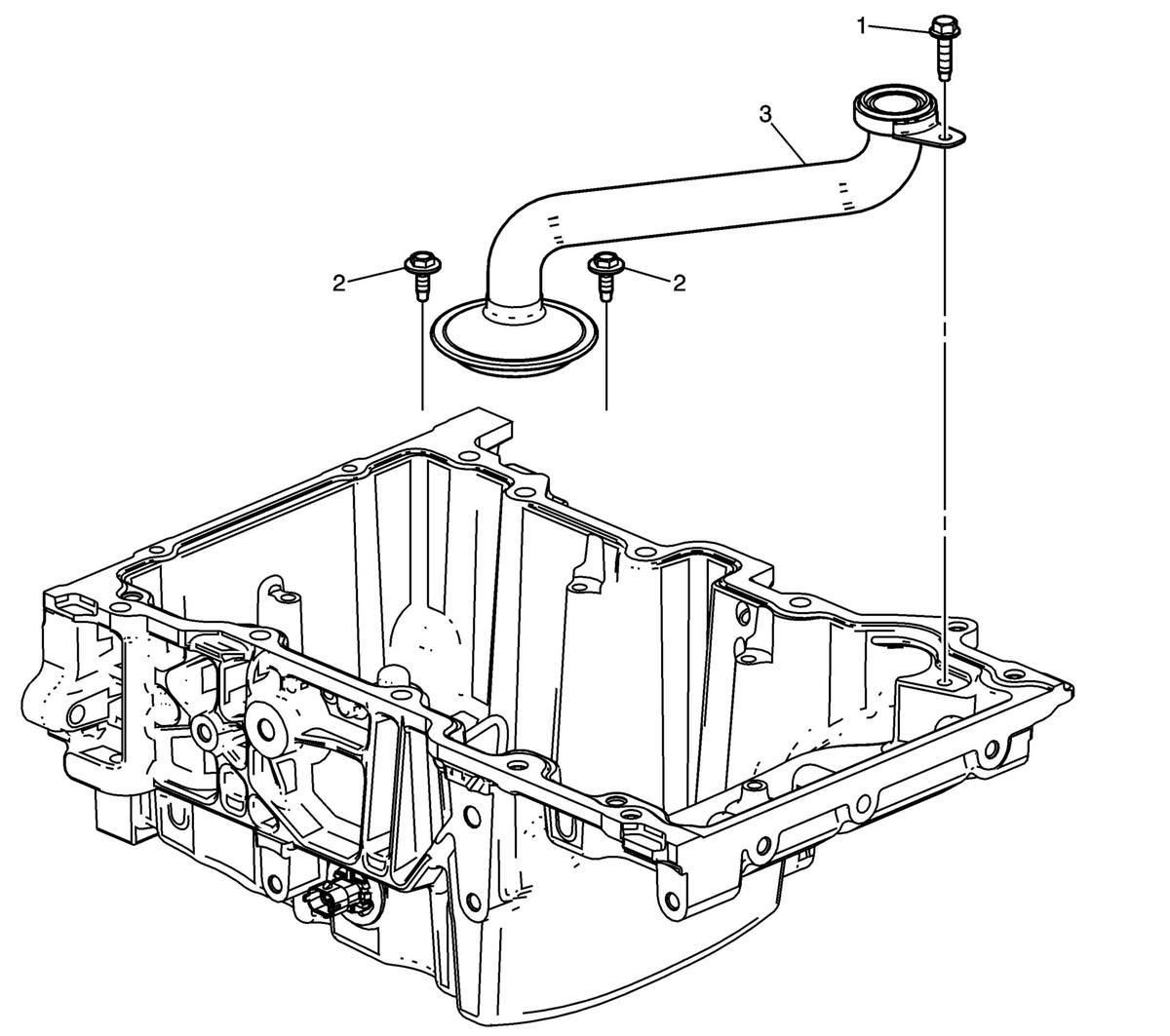

Fig 1: Oil Pump Suction Pipe
Courtesy of GENERAL MOTORS COMPANY
Oil Pump Suction Pipe Removal
Callout
Component Name
1
Oil Pump Suction Pipe Bolts
2
Oil Pump Suction Pipe Bolt
3
Oil Pump Suction Pipe
