Crankshaft Oil Pan Drain Plug and Oil Deflector Removal
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY Crankshaft Oil Pan Drain Plug and Oil Deflector Removal

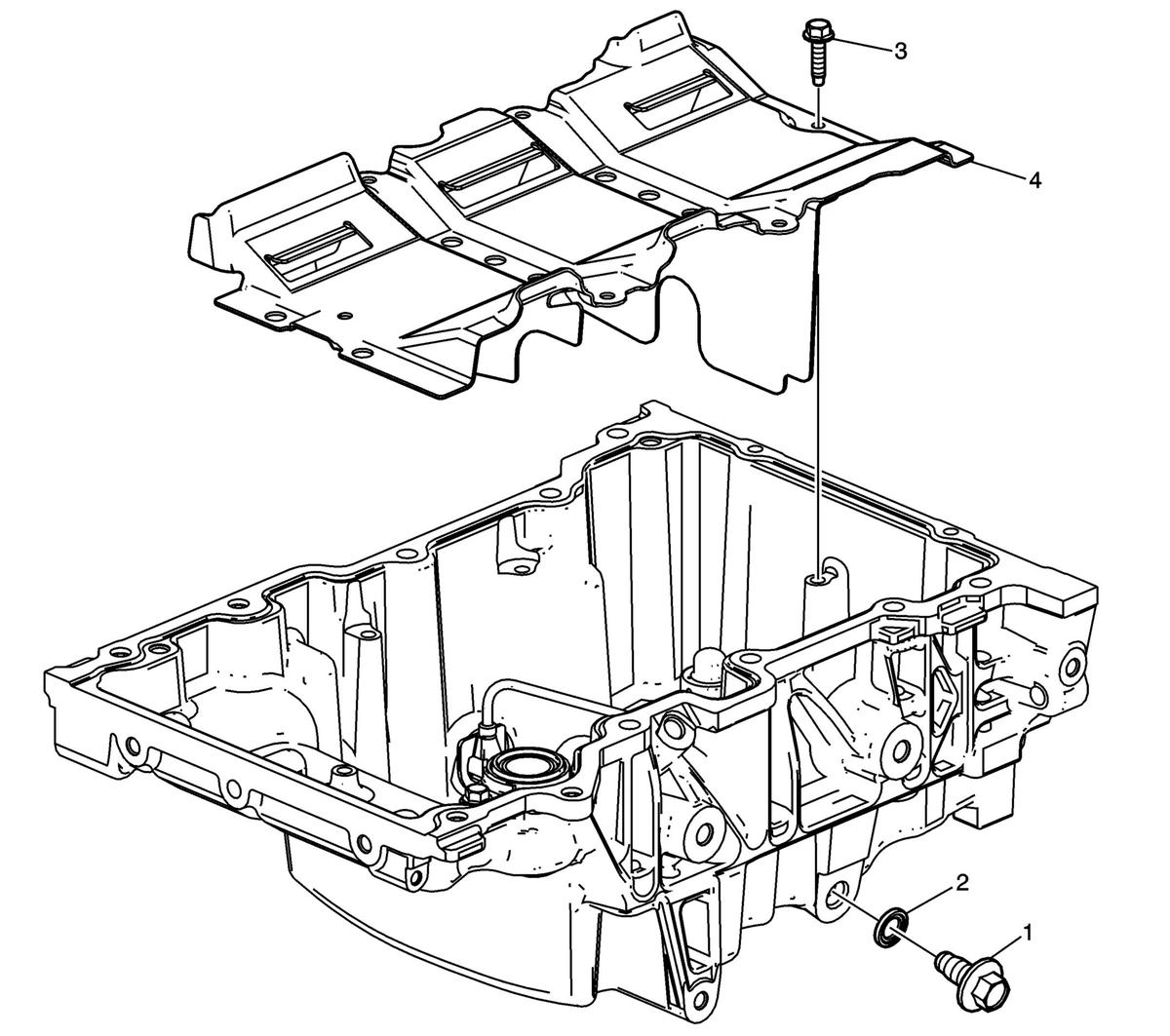

| Callout |
Component Name |
| 1 |
Oil Pan Drain Plug |
| 2 |
Oil Pan Drain Plug Seal
NOTE:
Discard the seal, it is not reusable.
|
| 3 |
Crankshaft Oil Deflector Bolts |
| 4 |
Crankshaft Oil Deflector |
