Inspection Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

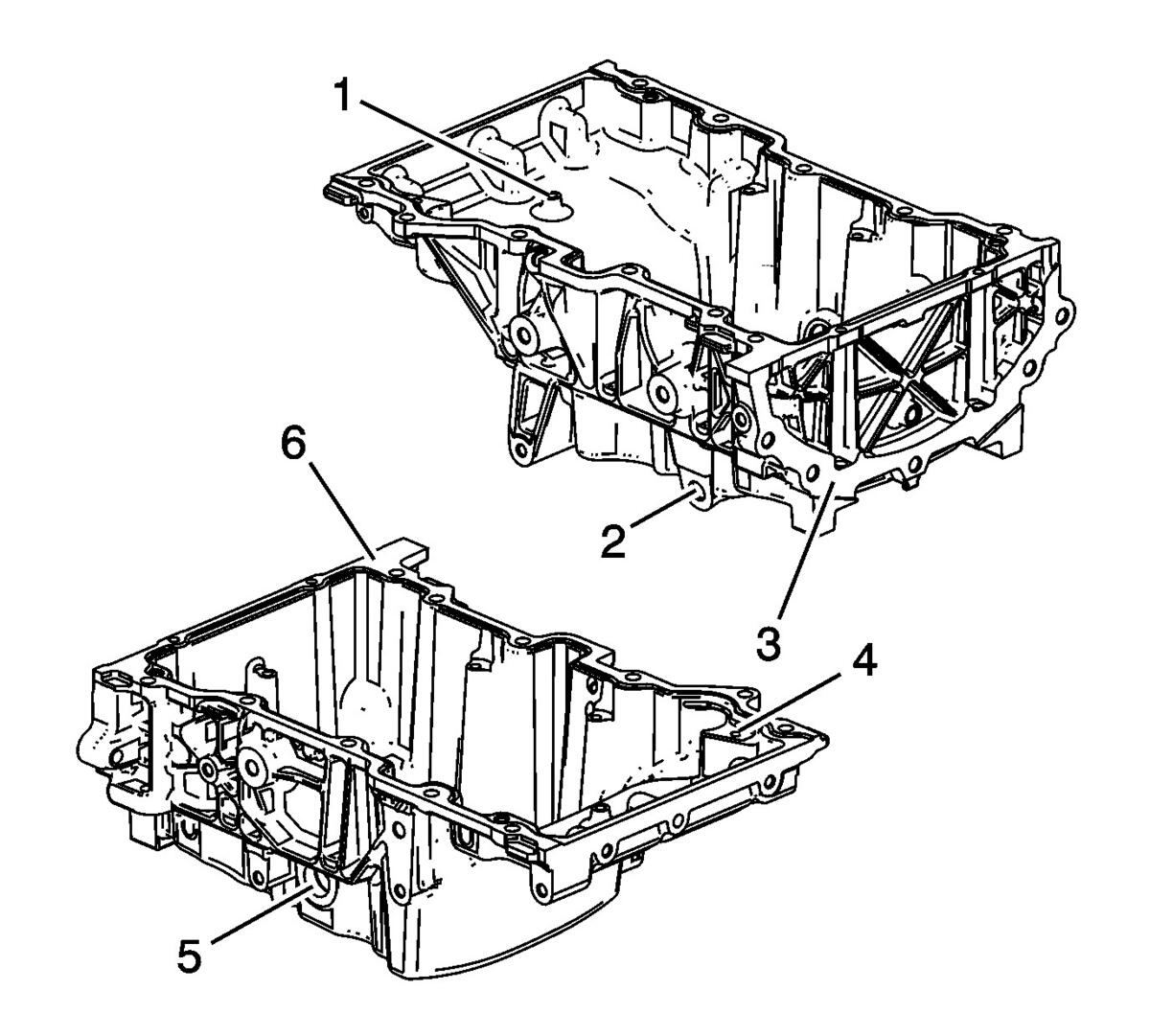

- Inspect the oil pan for the following conditions:
- Damage to the oil pan scraper mounting holes (1)
- Damage to the drain plug or drain plug hole (2)
- Damage to the brace mounting bosses (3)
- Damage to the oil pump suction pipe bolt hole (4)
- Damage to the engine oil level switch hole (5)
- Gouges or damage to the oil pan sealing surfaces (6)
- Repair or replace the oil pan and/or oil pan components as necessary.
