Oil Pump Suction Pipe Installation
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

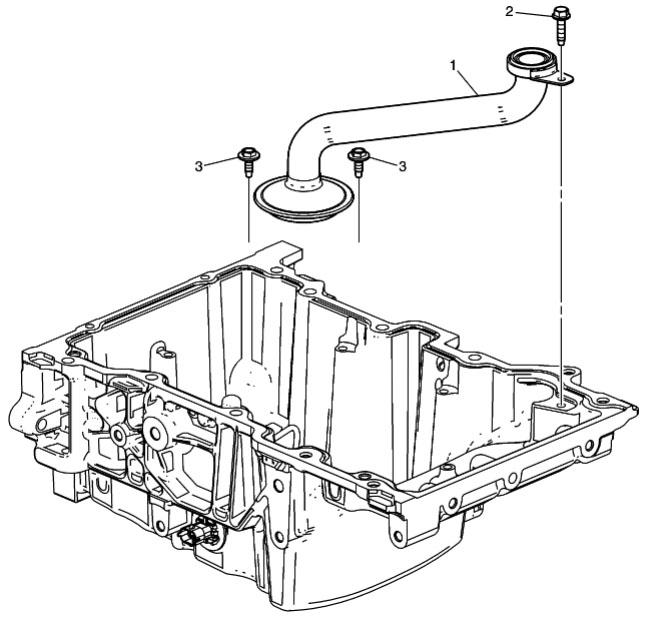

Courtesy of GENERAL MOTORS COMPANY Oil Pump Suction Pipe Installation
| Callout |
Component Name |
| 1 |
Oil Pump Suction Pipe |
| 2 |
Oil Pump Suction Pipe Bolt
Tighten
10 N.m (89 lb in) |
| 3 |
Oil Pump Suction Pipe Bolts
Tighten
10 N.m (89 lb in) |
