Throttle Actuator Wire Assembly Removal
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

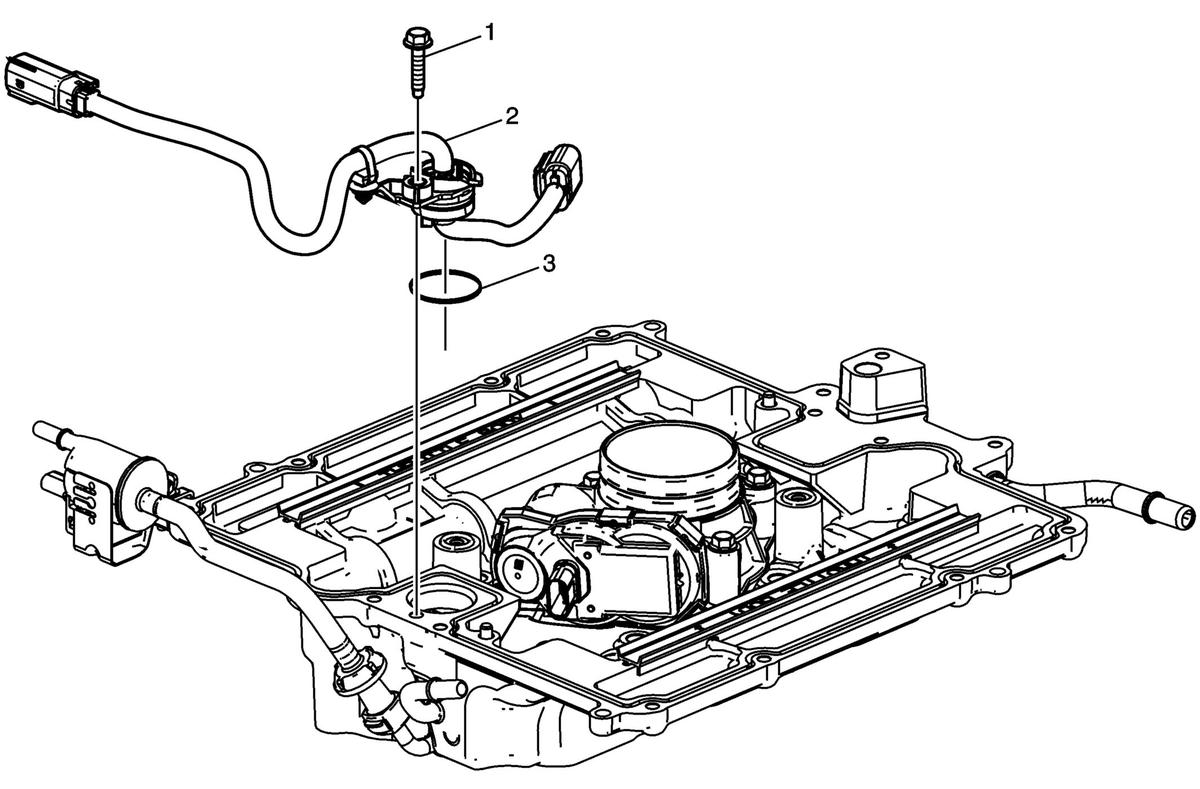

Courtesy of GENERAL MOTORS COMPANY Throttle Actuator Wire Assembly Removal
| Callout |
Component Name |
| 1 |
Throttle Actuator Wire Assembly Seal
NOTE:
Discard the seal, it is not reusable.
|
| 2 |
Throttle Actuator Wire Assembly Bolt |
| 3 |
Throttle Actuator Wire Assembly |
