Supercharger Water Manifold Removal
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

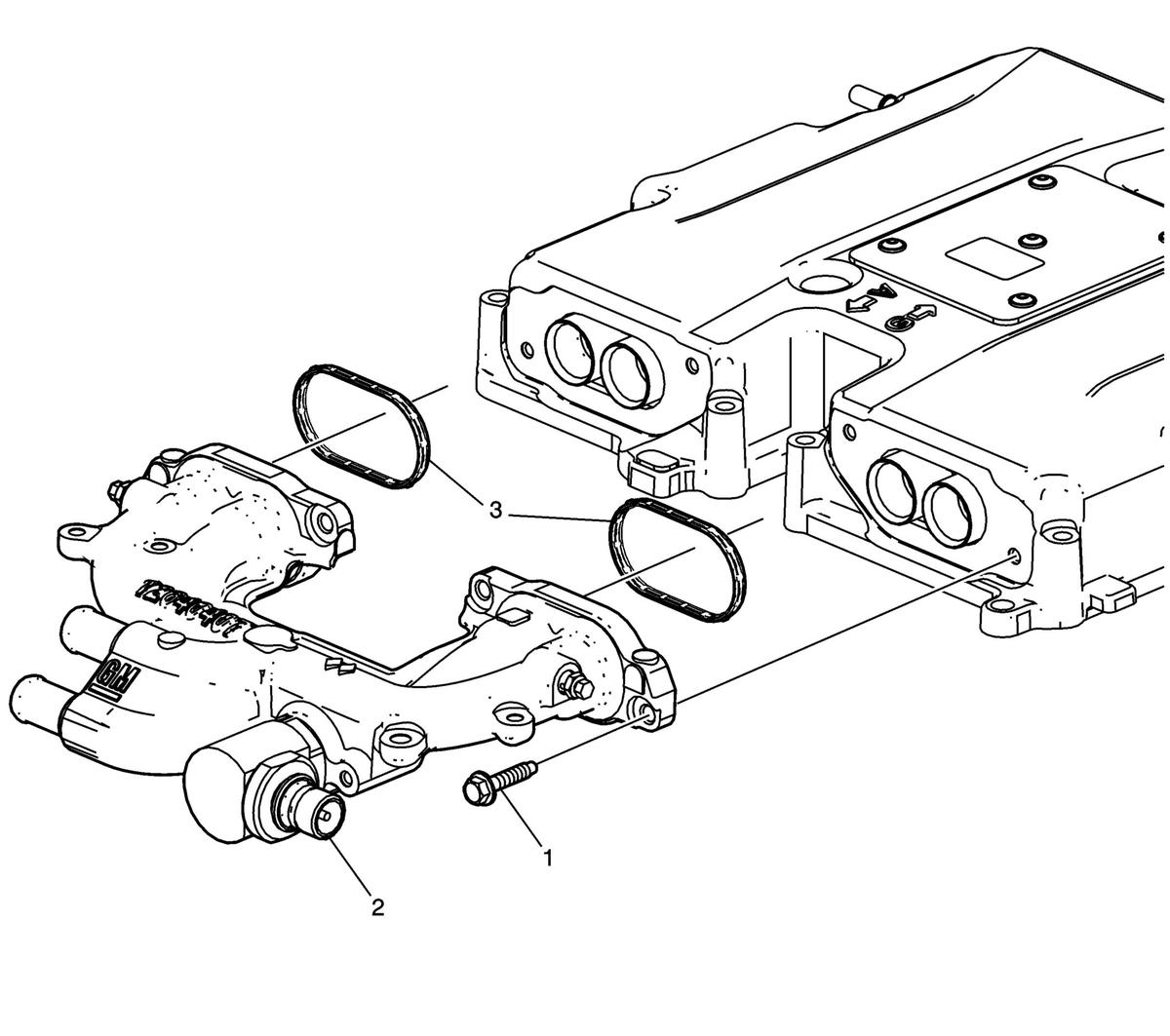

Courtesy of GENERAL MOTORS COMPANY Supercharger Water Manifold Removal
| Callout |
Component Name |
| 1 |
Supercharger Water Manifold Bolts |
| 2 |
Supercharger Water Manifold |
| 3 |
Supercharger Water Manifold Seals
NOTE:
Discard the seals, they are not reusable.
|
