Section 168 (Engine Mechanical - 3.6L (LGX LF4) - Repair Instructions - Off Vehicle)
>>
Repair Instructions - Off Vehicle
>>
Intake Manifold Disassemble (LF4)
>>
(EVAP) Emissions Canister Purge Tube Assembly Installation
(EVAP) Emissions Canister Purge Tube Assembly Installation
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

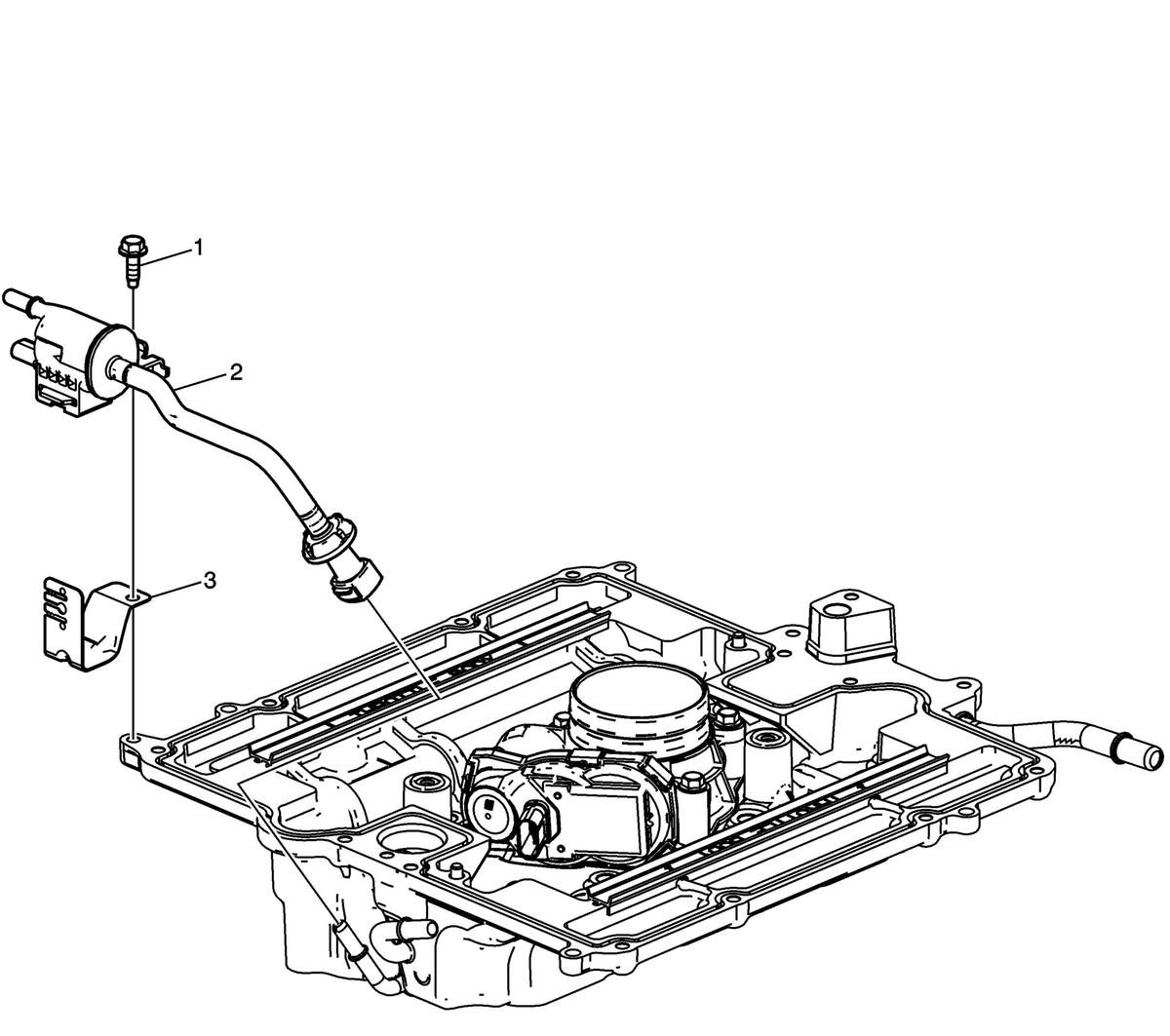

Fig 1: (EVAP) Emissions Canister Purge Tube Assembly
Courtesy of GENERAL MOTORS COMPANY
(EVAP) Emissions Canister Purge Tube Assembly Installation
Callout
Component Name
1
EVAP Assembly Bolt
2
EVAP Assembly
3
Throttle Actuator Wire Bracket
