Supercharger Water Manifold Installation
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

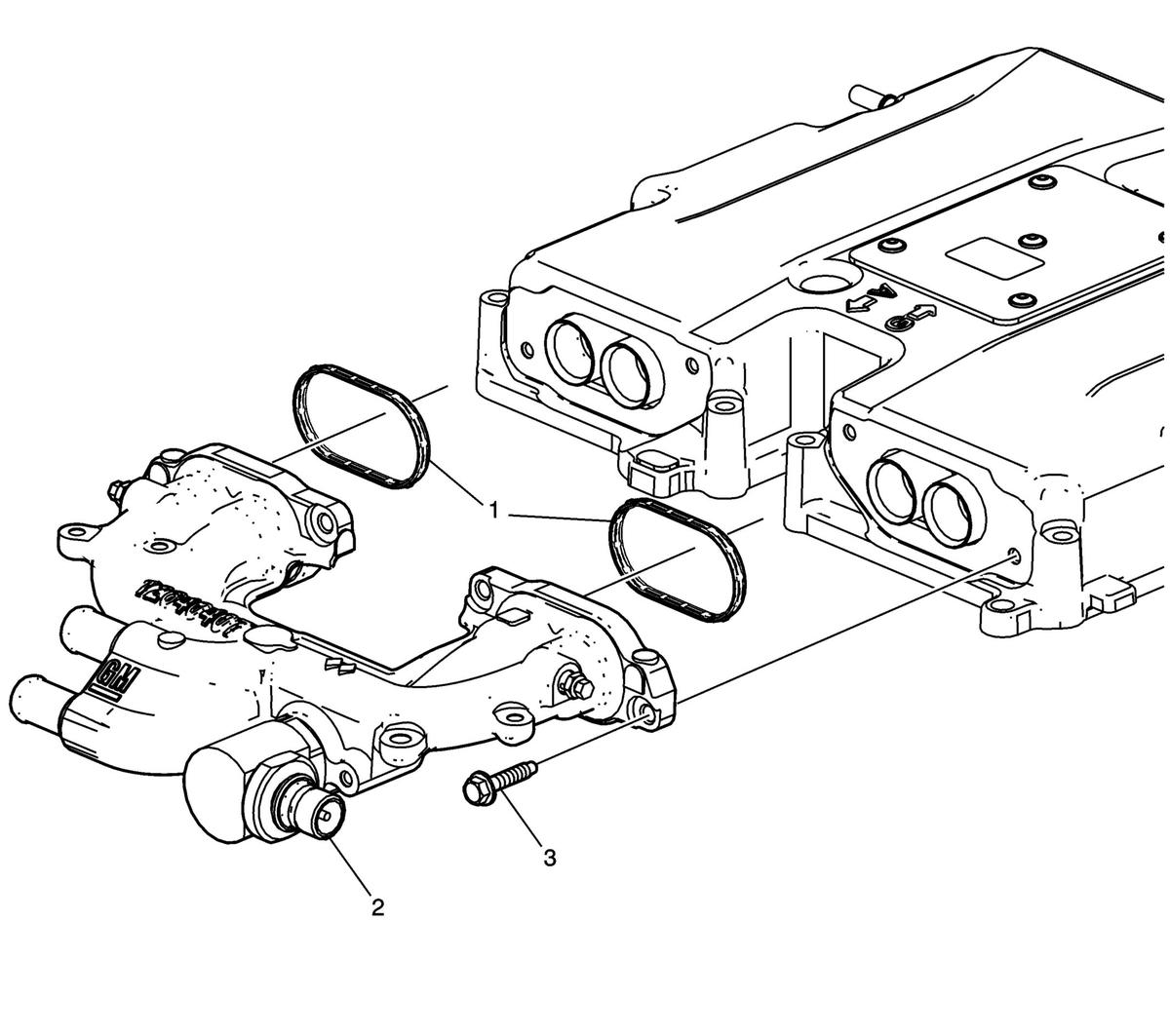

Courtesy of GENERAL MOTORS COMPANY Supercharger Water Manifold Installation
| Callout |
Component Name |
| 1 |
Supercharger Water Manifold Seals
|
| 2 |
Supercharger Water Manifold |
| 3 |
Supercharger Water Manifold Bolts
Tighten
10 N.m (89 lb in) |
