Charge Air Cooler Cover Dowels, Seals, and Insulator Installation

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

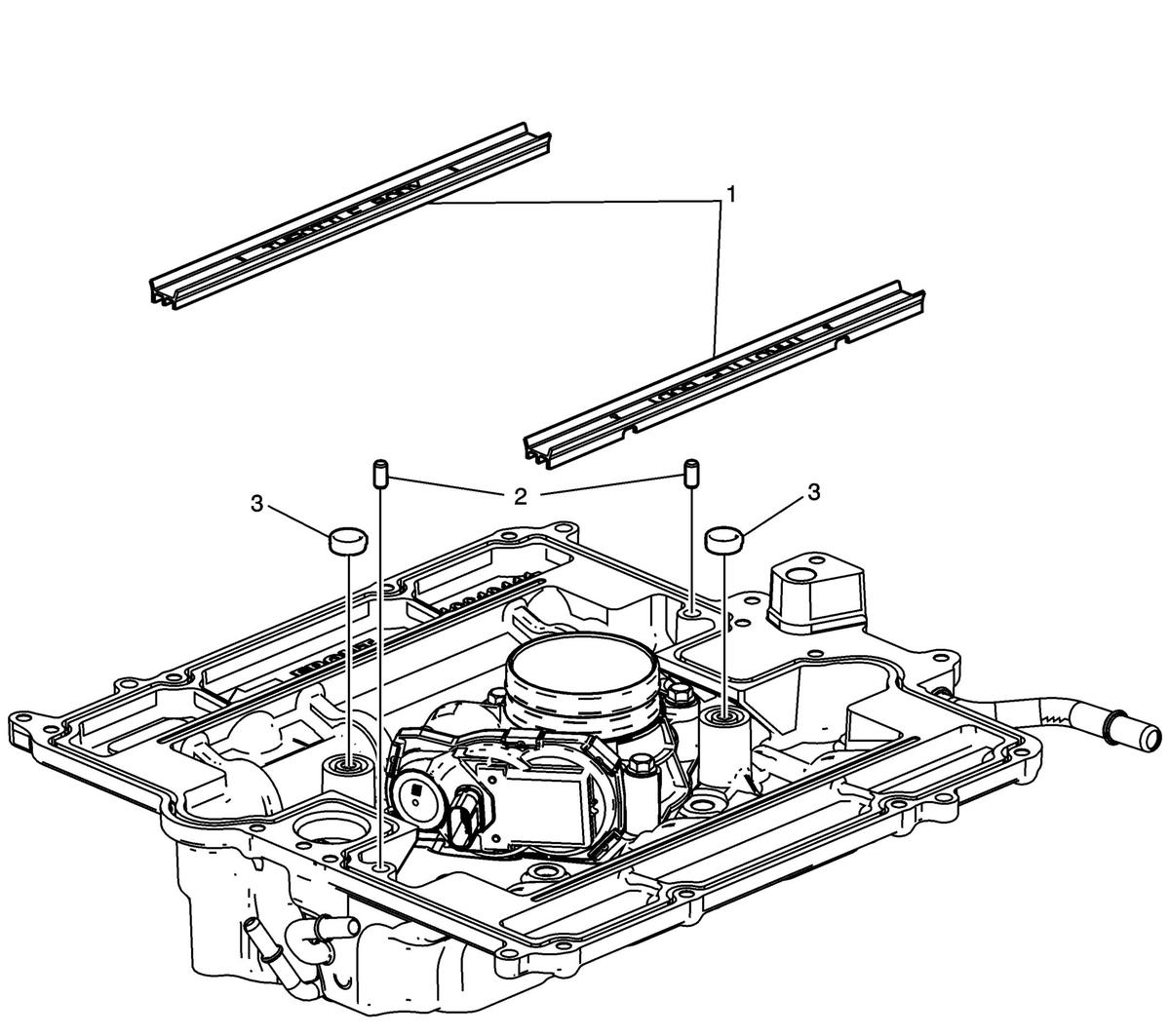

Fig 1: Charger Air Cooler Cover Dowels, Seals and Insulators
GM2887524Courtesy of GENERAL MOTORS COMPANY
Charge Air Cooler Cover Dowels, Seals, and Insulator Installation

Callout Component Name
1 Charge Air Cooler Lower Insulator
2 Dowel Pins
3 Charge Air Cooler Cover Seal
NOTE:

Install NEW seals.
