Engine Oil Cooler Adapter Removal
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

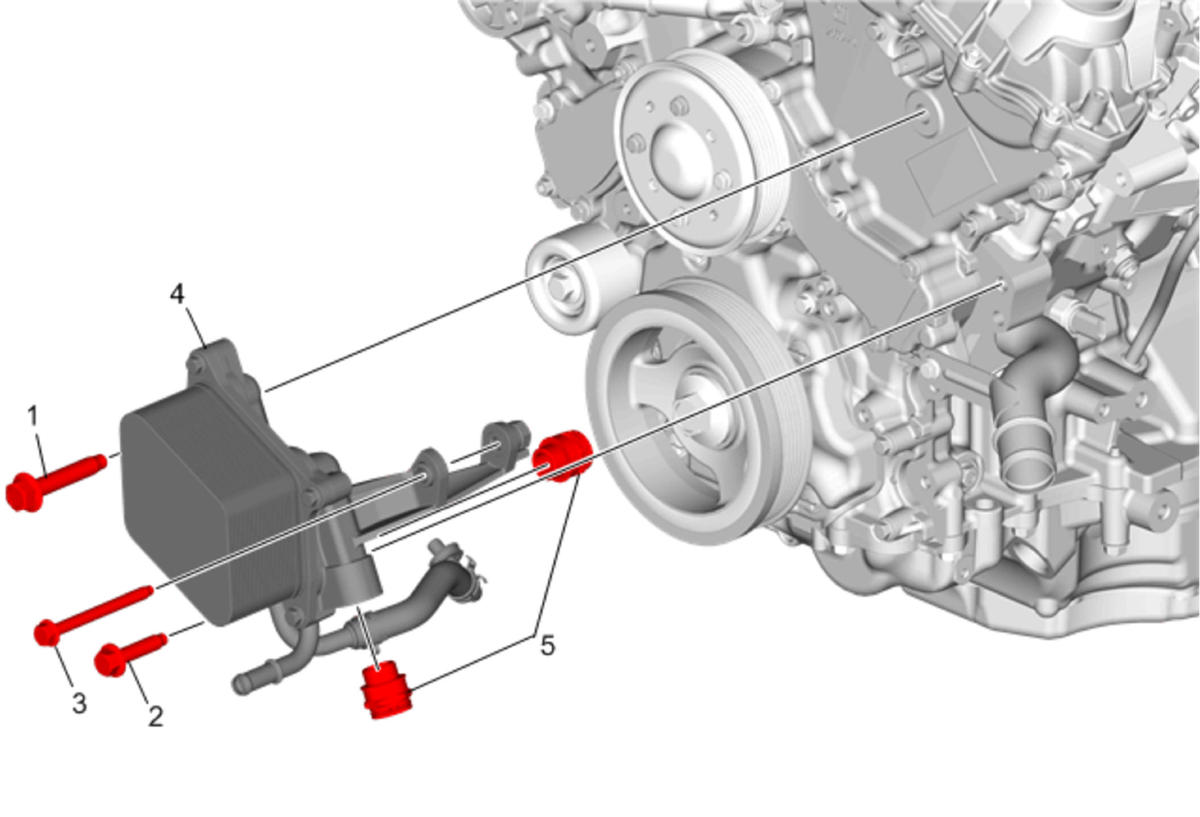

Courtesy of GENERAL MOTORS COMPANY Engine Oil Cooler Adapter Removal
| Callout |
Component Name |
| 1 |
Engine Oil Cooler Adapter Bolt - M12 x 65.90 |
| 2 |
Engine Oil Cooler Adapter Bolt - M10 x 45.75 |
| 3 |
Engine Oil Cooler Adapter Bolt - M8 x 90.8 |
| 4 |
Engine Oil Cooler Adapter Assembly |
| 5 |
Engine Oil Cooler Fitting (Qty: 2) |
