Engine Oil Cooler Adapter Removal (LF4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

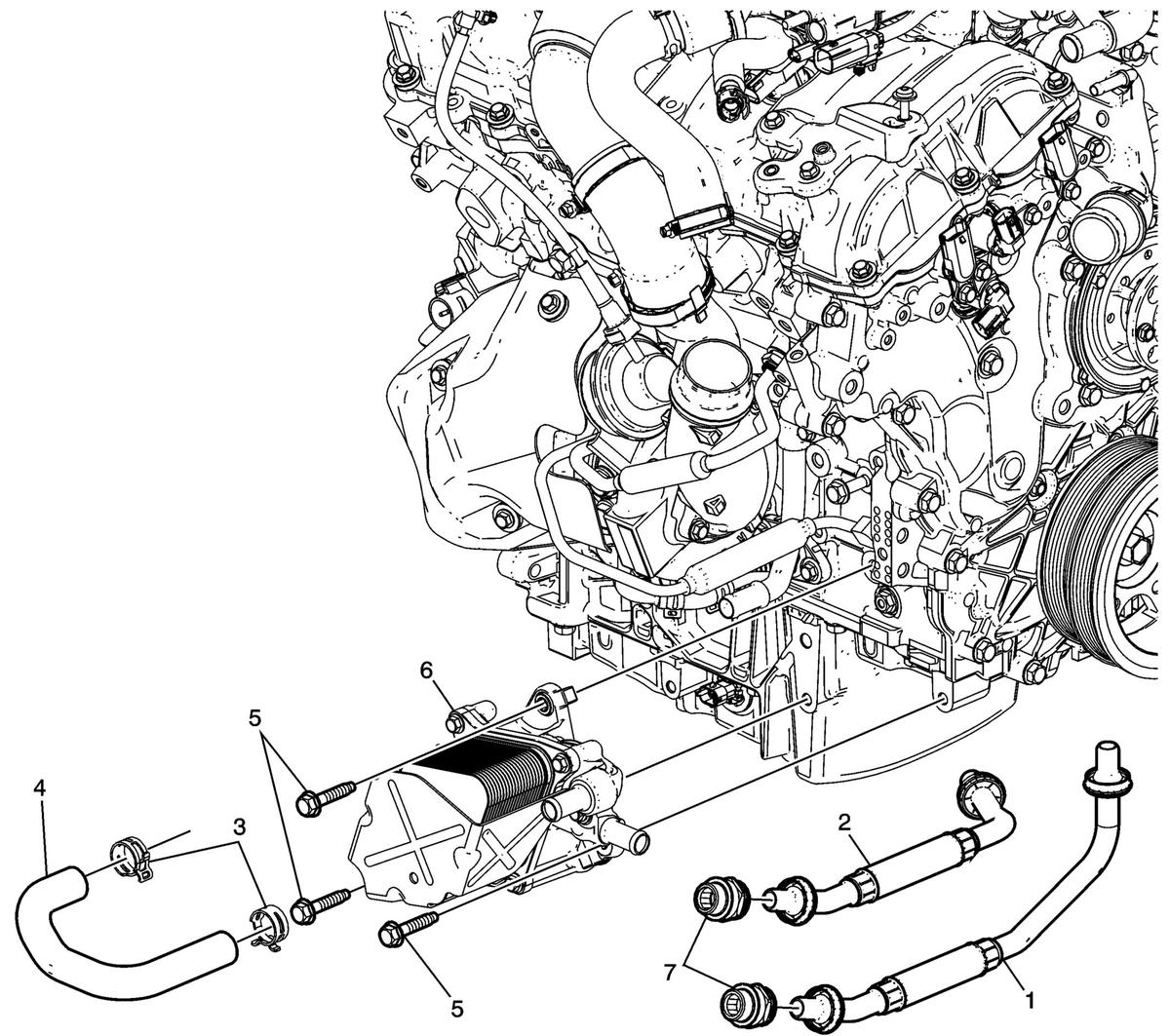

| Callout |
Component Name |
| 1 |
Oil Cooler Line 3/4" |
| 2 |
Oil Cooler Line 3/4" |
| 3 |
Turbocharger Coolant Feed Hose Clamp (Qty: 2) |
| 4 |
Turbocharger Coolant Feed Lower Hose |
| 5 |
Oil Filter Adapter Bolt (Qty: 3) |
| 6 |
Engine Oil Cooler Adapter Assembly |
| 7 |
Engine Oil Cooler Fitting (Qty: 2) |
